• Fuel：Diesel
• Drive Wheel：4×2
• Horsepower：＜150hp
• Condition：New
• Tank Material：Q235 Carbon Steel,Optional Stainless Steel
• Color：According to Customer Requirements
• Chassis Brand：Isuzu,Dongfeng,JAC,Jmc,HOWO and etc
• Fire Type：Water and Foam Tank Fire Truck
• Standard：China Standard
• Transport Package：Nude
• Specification：6140*1885*2660mm
• Trademark：CLW brand(dongfeng chassis)
• Origin：Suizhou, Hubei Province, China
• HS Code：8704909090
• Production Capacity：100units,Month

Basic Info.

Fuel Diesel Drive Wheel 4×2 Horsepower ＜150hp Condition New Tank Material Q235 Carbon Steel,Optional Stainless Steel Color According to Customer Requirements Chassis Brand Isuzu,Dongfeng,JAC,Jmc,HOWO and etc Fire Type Water and Foam Tank Fire Truck Standard China Standard Transport Package Nude Specification 6140*1885*2660mm Trademark CLW brand(dongfeng chassis) Origin Suizhou, Hubei Province, China HS Code 8704909090 Production Capacity 100units/Month

Product Description

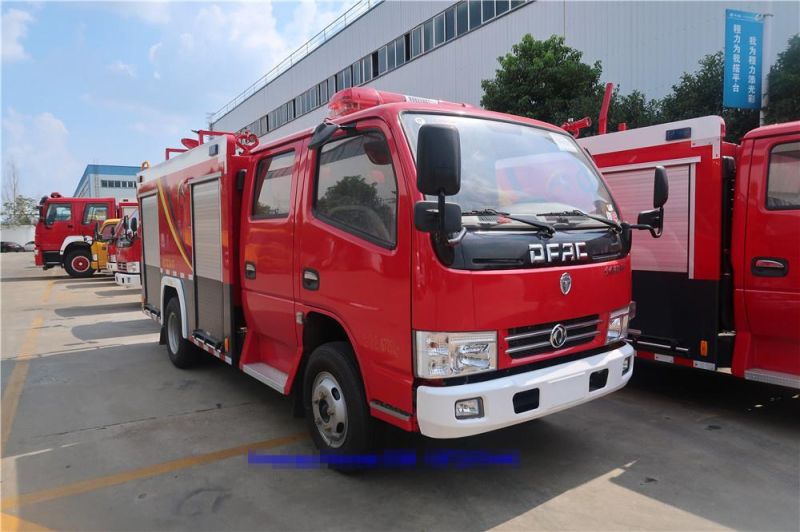

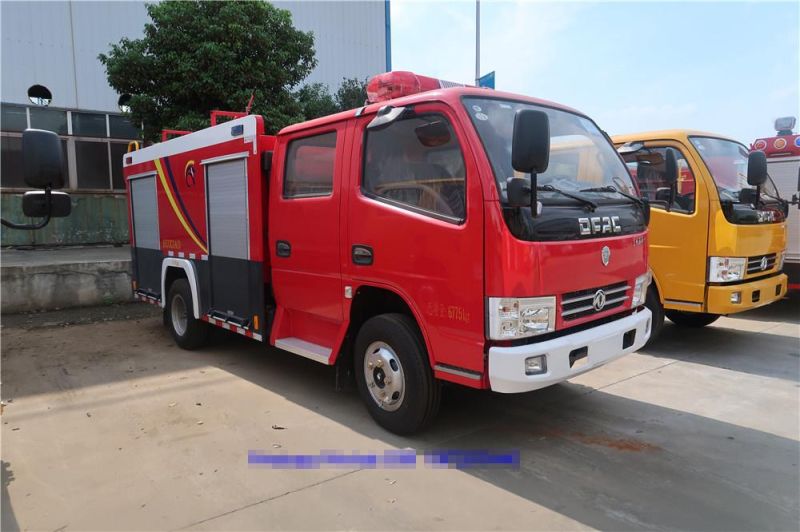

dongfeng 600p fire truck
Product information


Product Name	isuzu 600p water and foam fire fighting truck	dongfeng water and foam fire fighting truck
Driving Type	4x2,left hand drive	4x2,left hand drive
WEIGHT
Kerb Weight	Approx.3400kg	Approx.3500kg
Dimension
Wheelbase	3360mm	3300mm
Overall Size	Approx.6360x2000x2740mm	Approx.6140x1885x2660mm
ENGINE
Engine Model	4KH1CN5HS(130HP)	YC4FA115-50 (115HP)
No of Cylinder	4	4
Displacement	2999ml	2980ml
Max Output	96KW	85kw
Emission Standard	EURO 5	EURO 5
DRIVE TYPE
Transmission	MSB 5 speeds,5 forwards and 1 reverse	5 speeds,5 forwards,1 reverse
Steering	With power steering	With power steering
Brake	oil brake	air brake
Front axle/rear axle	2.5T/4.8T
CAB
Cabin	ISUZU 600P	dongfeng double row
Configuration	with A/C	with A/C
Seat quantity	double row	double row
TIRE
Tire specification	7.00R16,6+1	7.00R16,6+1

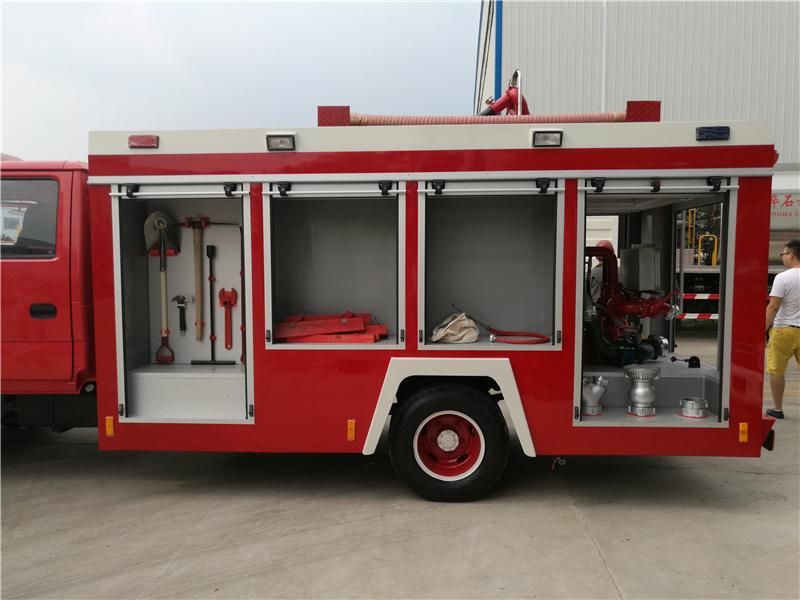

CONFIGURATION
Tank Capacity	water tank:2000liters foam tank:1000liters water tank and foam tank capacity can adjustable	water tank:2000liters foam tank:1000liters water tank and foam tank capacity can adjustable
Tank Material	Q235 carbon steel	Q235 carbon steel
Pipe Material	Q235 carbon steel	Q235 carbon steel

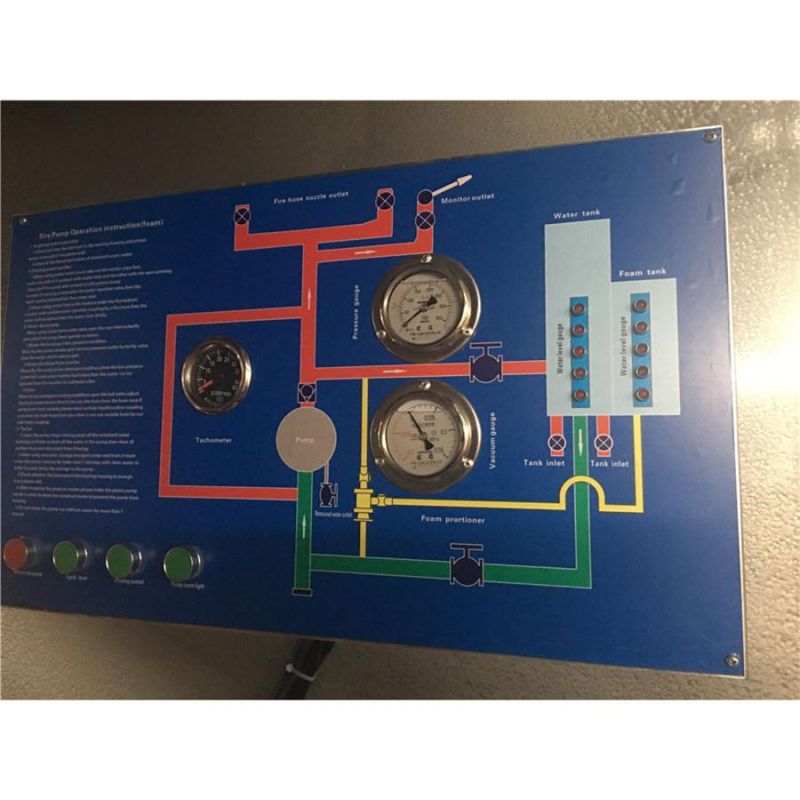

Fire Pump	CB10/20 pump pressure (Mpa):1.0 flow(L/S):20L/S/1.0MP time of drawing water:<35s	CB10/20 pump pressure (Mpa):1.0 flow(L/S):20L/S/1.0MP time of drawing water:<35s
fire monitor	Model:PL24                 Water monitor rated flow:24L/S    Water monitor rated reach≥45m                Pitching angle °:-30~70       Level back to the corner°:360	Model:PL24               Water monitor rated flow:24L/S     Water monitor rated reach≥45m               Pitching angle °:-30~70       Level back to the corner°:360

Company information
 1.  ChengLi Special Automobile Co.,Ltd, which was appointed by the Development and Reform Committee of China, is a famous manufacturer producing all kinds of special trucks for municipal & environmental construction, virescence, petrol & medicals, container, and semi-trailer. Brands registered include CLW .Our company has independent export right and has a mount of clients in overseas. Our leading varieties include more than 100 types of trucks and related products such as water truck, garbage truck,sewage suction truck, fuel tank, high-altitude operation truck, truck mounted crane, dump truck, LED advertising truck,LPG truck/trailer,LPG filling tank, van truck, semi-trailer, fire engine, refrigerator truck, tractor, bulk cement truck, chemical liquid truck, concrete mixer truck, and others.
 2.Our company has solid technology, flawless inspection, advanced equipment, reliable quality and flexible modes of operation. What's more, our company has roundly passed ISO9001:2000 and CCC (China Compulsory Certification) certifications. Series trucks of Cheng Li have procured remarkable achievements interiorly, especially from the investment in South Suburb Cheng Li Automobile Industry Park.
 3.Quality control:our company truck pass ISO,3C,ASME certification.
our factory have the quality Quality Inspection Department.before sending truck for facotry ,our quality inspection department will check the truck carefully.
 4. Export market: Africa,Asia,South America,Pacific and so on
 5.Our company cooperate with famous chasis manufacturers,such as DONGFENG,SHINOTRUK,FOTON,ISUZU JAC,JMC ,SHACMAN,FAW and etc.

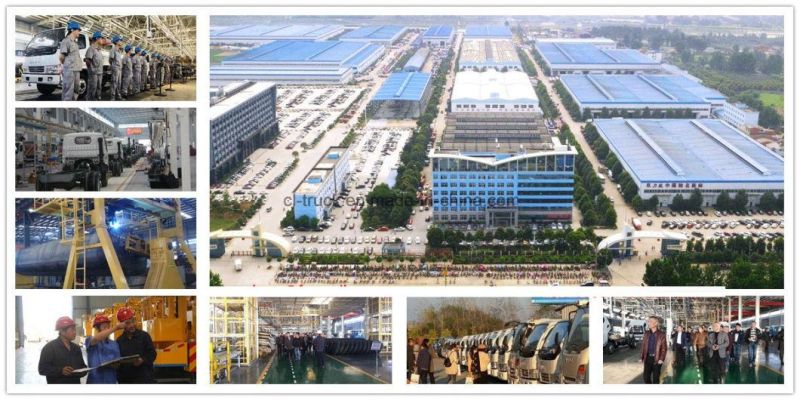

 6.Factory Show:




Service1.We can product truck accroding the customer's requirments(color,size,logo and so on)
2.We can send our technician to arrive the customer's country to provide the service .
3.We can train customer's workers for free.
4.Our truck warranty:12 months.we can provide the parts for free at the frist year.

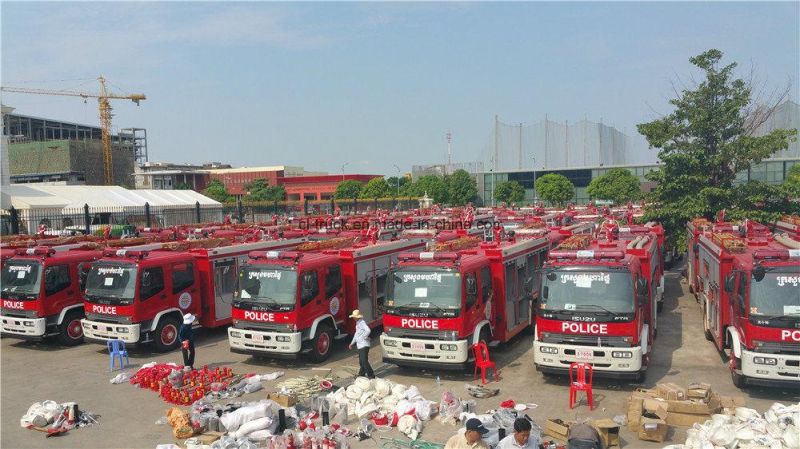

Success Case Show







Customer Visit


 FAQ 1.Payment term.
-T/T,30% deposit ,and pay the blance before shippment from our factory
-L/C,L/C price is expensive than T/T price.
 2.What about quality ?

Our truck are brand new truck,Our survival is based on quality and credit standing is the guarantee of our success. We will do as we can to treat customers honestly, manage flexibly, guarantee high quality but low price, and keep high efficiency.

our company truck pass ISO,3C,ASME certification.
 3.Visit our factory
Our factory are in suizhou city,hubei province china.
You can take train or plane to arrive wuhan citry(wuhan city is the capital of hubei province) .and our driver will pick up you at wuhan railway station or wuhan tianhe airport.And if need the invitation letter ,pls send your private information and company information to me.
