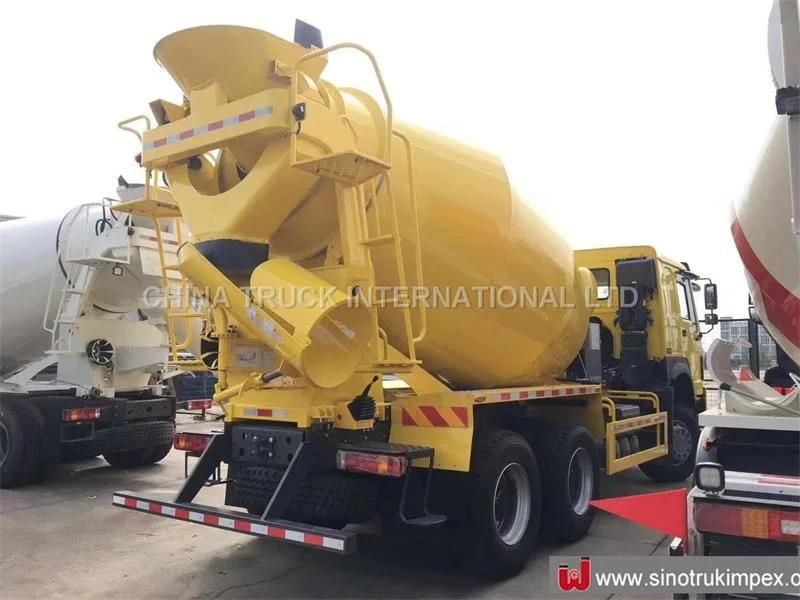

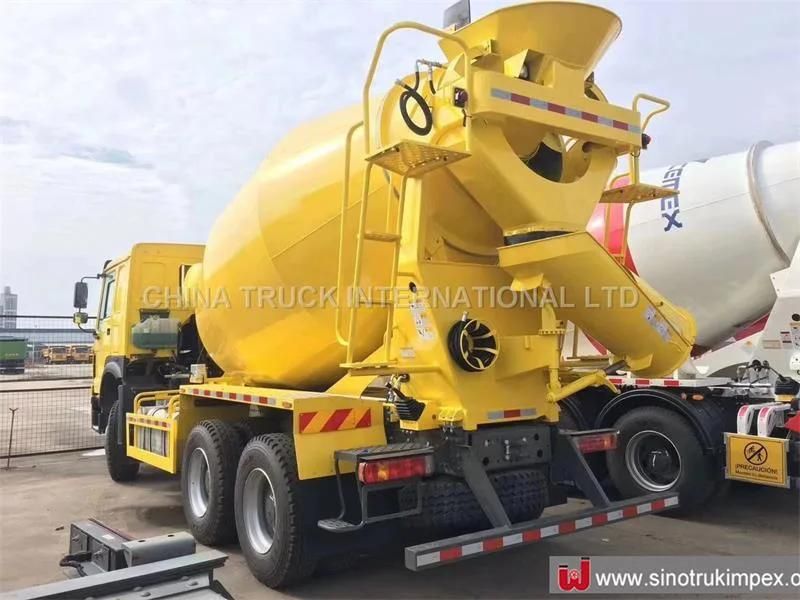

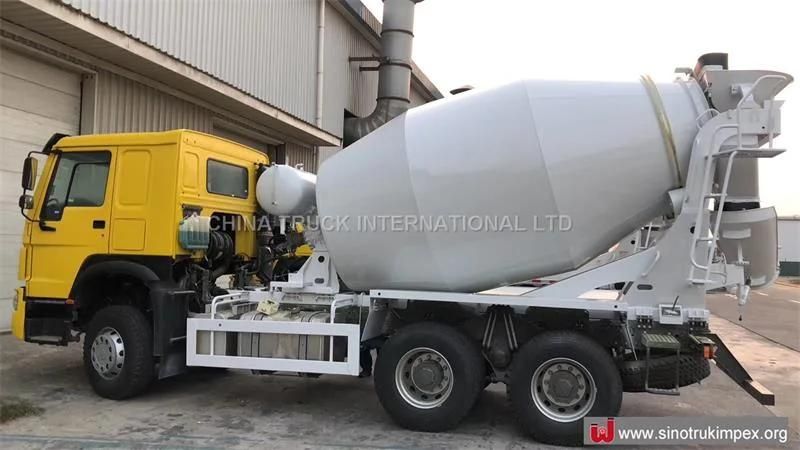

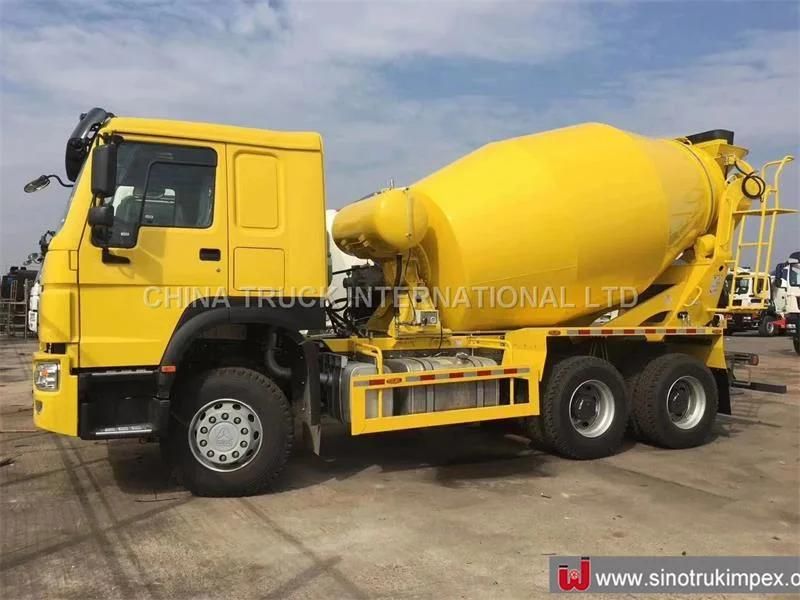

Sinotruck HOWO 9m3 336HP Mixer Truck with Concrete Mixer Truck
QINGTE GROUP SPECIAL VEHICLES CO., LIMITED- Certification：ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE
- Transmission Type：Manual
- Emission Standard：Euro 2
- Displacement：9
- Payload：9m3
- Fuel：Diesel
Base Info
- Model NO.：ZZ1257N3841W
- Drive Mode：6x4
- Maximum Horsepower：300-400hp
- Condition：New
- Color：Customized
- ABS：Optional
- AC：Optional
- Payment：T,T or LC
- Transport Package：Nude Packing After Be Waxed
- Specification：9x2.5x4
- Trademark：SINOTRUK
- Origin：China
- HS Code：8705400000
- Production Capacity：5000pieces,Month
Description
Oil Capacity
(L)1st 2nd 3rd 4th 5th 6th 7th 8th 9th 10th R1 R2 14.28 10.62 7.87 5.87 4.38 3.26 2.43 1.8 1.34 1.00 13.91 3.18 1900 2600 363 12 Steering Gear ZF8118, German ZF hydraulic steering with power assistance Clutch
Single plate φ430 diaphragm spring clutch Number of axle 3 Front axle
HF9 STEYR/HOWO drum brake front axle, axle loading capacity is 9000kg Driving axle
HC16 Rated loading capacity: 16T, Ratio: 4.42, 4.80/5.73
Double reduction, casting axle housing, drum brake
Front/Rear track(mm) 2022/1830 Overhang front/rear(mm) 1500/2210 Wheel base (mm) 3625+1350 Tires 12.00R20, radial tires, 10+1(spare tire) Approach/departure angle 16/23 (°) Maximum speed(km/h) 78 Fuel Tank 400L Van dimension 9M3(mm) Suspension Steer Axle: Parabolic springs with shock absorbers and stabilizer
Drive Axle: Parabolic springs with divided balance shaft and stabilizer Electrical System Voltage: 24V
Batteries: 2x12V 165Ah
Starter: 24V, 5.5KW
Alternator: 28V/80A Braking System Service brake: Dual-circuit air brake
Parking brake: Spring brakes on rear axle
Auxiliary brake: Exhaust valve braking(EVB) Color Standard: red, yellow, green, white, blue, black
Optional: others you liked Overall Dimension(L X W X H mm) 9000×2496×4000 others With PTO, Rear spare tire rack Options ABS, Electrical tilting cab, MTCO tachographs
Our company also have pump trucks that works with the mixer trucks.
If you need it, pls feel free to contact me.
Warranty
(1) One year quality guarantee or within 100000km, which comes the first.
(2) Other spare part could be supplied by OEM at cost prices.
(3) Regularly callback to know the vehicle's working status.
(4) The overseas engineers are always ready to deal with unexpected needs.
FAQ
Our strength:
1) Manufacturer, more than 14yrs professional experience.
2) CCC,SGS and ISO9001 certificate, one year guarantee term provided.
3) Small order can be accepted.
4) Products can be custom-made according to your design, or diversified needs.
Company information:
China Truck International Ltd is one of the main exporters of Chinese trucks which is authorized by Ministry of Commerce.
We have 20 years of experience in exporting trucks.
If you want to buy any truck, trailer or truck parts,please contact us!
We sincerely hope to cooperate with you to expand market in your country
We sincerely hope to cooperate with you to expand market in your country!
(L)
HC16 Rated loading capacity: 16T, Ratio: 4.42, 4.80/5.73
Double reduction, casting axle housing, drum brake
Drive Axle: Parabolic springs with divided balance shaft and stabilizer
Batteries: 2x12V 165Ah
Starter: 24V, 5.5KW
Alternator: 28V/80A
Parking brake: Spring brakes on rear axle
Auxiliary brake: Exhaust valve braking(EVB)
Optional: others you liked
Our company also have pump trucks that works with the mixer trucks.
If you need it, pls feel free to contact me.
Warranty
(1) One year quality guarantee or within 100000km, which comes the first.
(2) Other spare part could be supplied by OEM at cost prices.
(3) Regularly callback to know the vehicle's working status.
(4) The overseas engineers are always ready to deal with unexpected needs.
FAQ
| Q1: I don't want this configuration |
| A: The configuration can be changed according to your needs |
| Q2: Minimum order quantity? |
| A: MOQ is 1 unit. |
| Q3: Production period? |
| A: (Truck & trailer) Within 30 days since the moment we got your down payment (Parts) Within 7 days since the moment we got your down payment |
| Q4: Payment term? |
| A: (Truck & trailer) 30% T/T as deposit, the balance should be paid before delivery. or L/C (Parts) 100% T/T should be paid before delivery |
| Q5: Shipping? |
| A: (Truck & trailer) by container or RoRo/Bulk shipment. (South America, Middle East, Africa, Oceania etc.) by road or railway.(Russia, Mongolia, Kazakhstan, Uzbekistan , Vietnam, Laos etc.) (Parts) by international courier service, such as DHL, TNT, UPS, or Fedex. The goods above $1000 can be shipped by sea |
| Q6: Can you supply some quick-wear truck or semi trailer parts ? |
| A: Yes, we can supply truck and semi trailer parts as your request,such as oil filter, fuel filter, air filter, traction, traction pin, balance beam and semi-trailer plate spring, hanging accessories, turntable, all kinds of trailer brake pads, brake pan, bearings etc. |
Our strength:
1) Manufacturer, more than 14yrs professional experience.
2) CCC,SGS and ISO9001 certificate, one year guarantee term provided.
3) Small order can be accepted.
4) Products can be custom-made according to your design, or diversified needs.
Company information:
China Truck International Ltd is one of the main exporters of Chinese trucks which is authorized by Ministry of Commerce.
We have 20 years of experience in exporting trucks.
If you want to buy any truck, trailer or truck parts,please contact us!
We sincerely hope to cooperate with you to expand market in your country
We sincerely hope to cooperate with you to expand market in your country!
