HOWO 4X2 Hydraulic 15m Telescopic Boom Truck Aerial Working Platform Truck with Insulated Bucket
Hubei Weiyu Special Vehicles Co., Ltd.- After-sales Service：Yes
- Warranty：1 Year
- Type：H
- Certification：ISO9000, CCC, EPA, EEC
- Emission Standard：Euro3, Euro4, Euro5
- Hoesrpower：<150HP
Base Info
- Model NO.：CLW5933
- Payload：200kg
- Fuel：Diesel
- Transmission Type：Manual
- Drive Wheel：4x2
- Condition：New
- Max.Working Height：12m, 16m, 18m, 20m, 22m, etc.
- Boom Turn Around Angle：360 Degree
- Hook Loading：1000kg
- Platform Rated Load：200kg
- Max. Working Range：7m
- Chassis Brand：HOWO, FAW,JAC,Jmc, Dongfeng, Foton, etc.
- Warranty Time：1 Year
- Color and Logo：Customized
- Delivery Time：30 Days
- Transport Package：Naked
- Specification：6300*1980*3100mm
- Trademark：CLW
- Origin：Suizhou, China
- HS Code：8701909000
- Production Capacity：500 Units,Month
Description
ChassisCab HOWO Double row cabin / single row cabin / one and half row cabin , A/C
Right hand drive /Left hand drive Engine 95-130hp Engine emission standard Euro 3, 4, 5 Fuel type Diesel Tire 7.00R16 Wheelbase 3360mm 3800mm Gear box 6-speed, 6 forwards, 1 reverse 1 Working height 15M 2 Main technical parameters of operation The height of the platform from the ground ≥12m
Max operating range of the platform ≥10m
Operating height when the platform's max operating range is ≥14.3m
Max working angle of platform 80°
Rated load of working bucket: 200kg 3 Outrigger Mode: Front outrigger: V type,rear outrigger: H type, individually adjustable
Quantity: 4
Control: individually adjustable or linked
Front leg lateral span: 3685mm
Inclination: 120°
Rear outrigger lateral span : 3780mm 4 Main operation Operating position: turntable, remote control operation.
Control form: ZYK bus control system, electro-hydraulic proportional control system to realize stepless speed regulation 5 Hoarding and stepping board Stainless steel fence and anti-skid stepping board 6 Boom structure Five-section working arm, synchronized telescopic 7 Slewing device Two-way 360-degree continuous rotation, 360-degree rotation of the hanging basket 8 Upper body main configuration A.Operating height 15 meters,
B.The whole truck has four hydraulic telescopic legs (up and down telescopic and horizontal telescopic), eight cylinders in total.
C.The outriggers are front V and rear H type,
D.Emergency pump, working bucket 360 degree rotation, wireless remote control, and others are factory standard configuration.

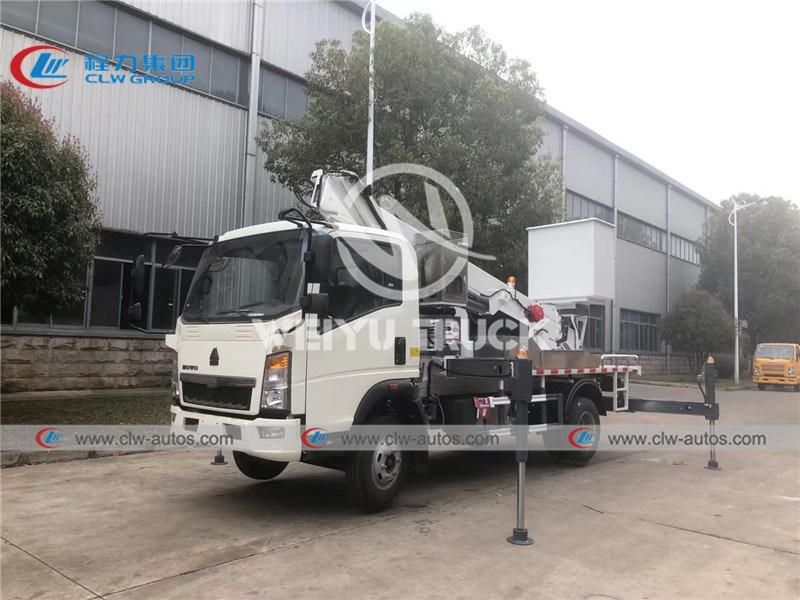

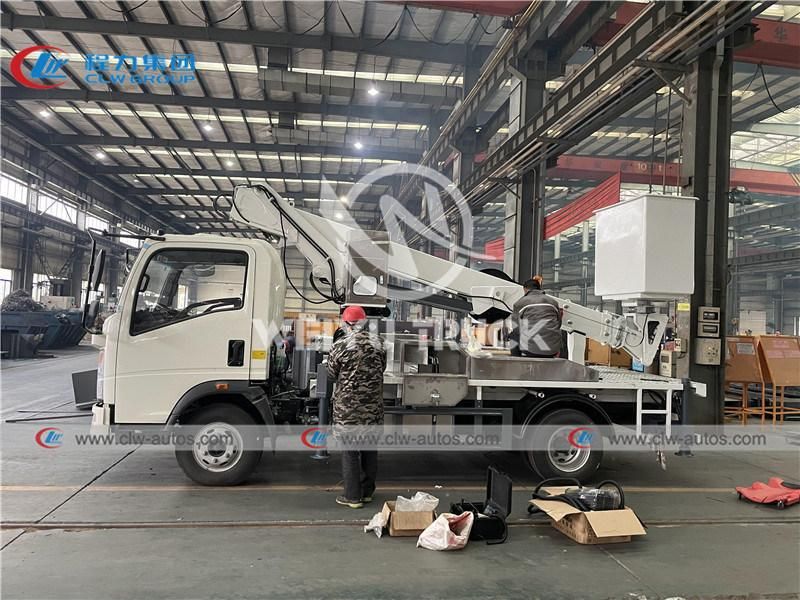

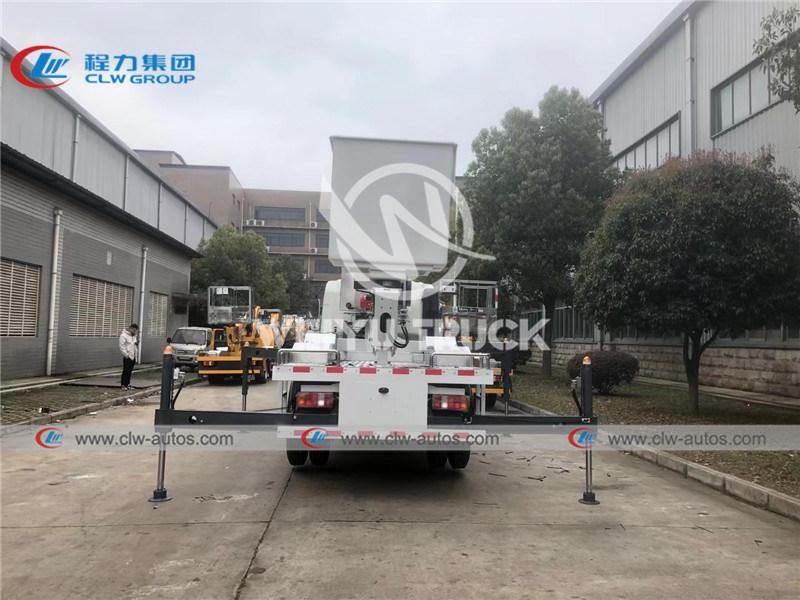

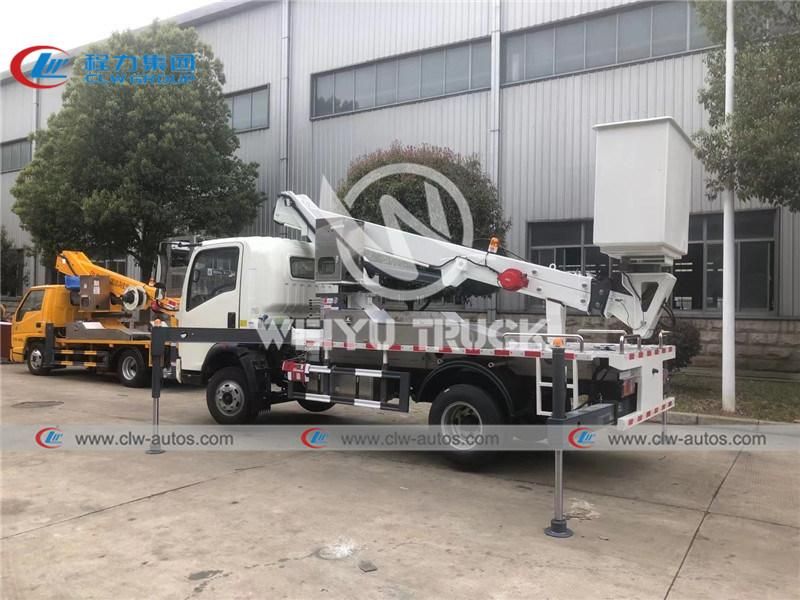

Reference photos

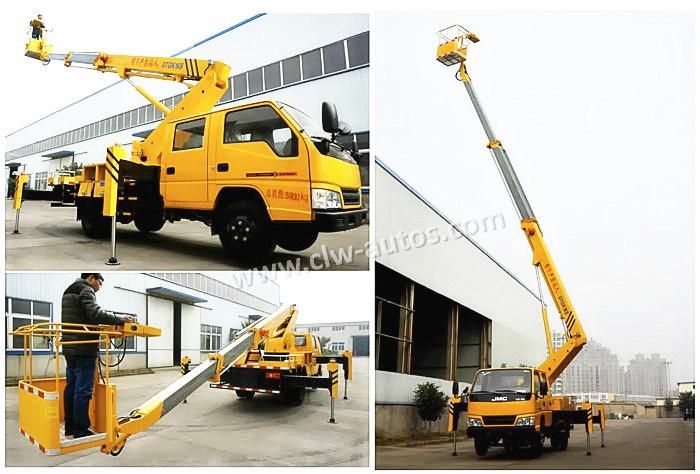

Working Scene:
Other Products:

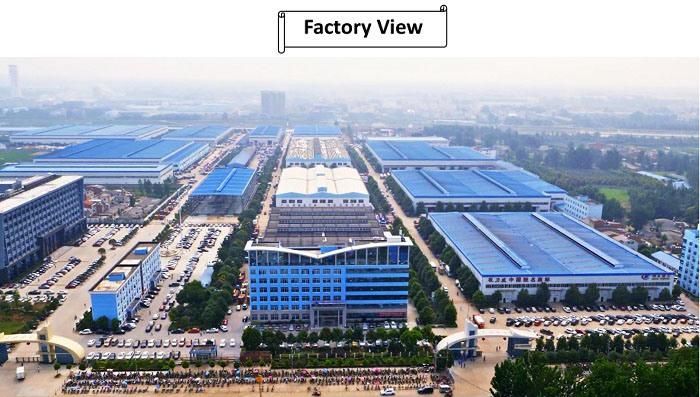

The CLW group, which was appointed by the Development and Reform Committee of China. CLW group is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer manual, video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
Shipment
Land transportation or Ship by bulk cargo ship, container, roro ship
After Sales Service
Email & Phone call tracking for each truck on timely manners.
