• Fuel：Diesel
• Drive Wheel：4×2
• Engine Capacity：4 - 6L
• Condition：New
• Material：Carbon Steel
• Tank Thickness：4 mm
• Wheel Base：3800 mm
• Engine：Weichai
• Horsepower：130 HP
• Water Pump：China Famous Brand
• Tire：8.25r20
• Loading Capacity：10000 Liters, 10ton, 10cbm
• Logo：as Per Customer′s Request
• Warranty：One Year
• Transport Package：Naked, Waxed, Bulk Ship, RO-RO
• Specification：7300x2300x2800mm
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

ConditionNew condition/Left hand drive/4x2ChassisBrandSHACMANCurb weight(kg)5455  kgLoading weight(kg)8350 kgGross weight(kg)14000 kgWheelbase(mm)3800 mmDimensions(mm)7300*2300*2800 mmFront Loading Capacity (Ton)4.8Rear Loading Capacity (Ton)9.2Max. driving speed(km/h)90 km/hClutchReinforced diaphragm clutchBrakesService brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheelsAuxiliary brake: engine exhaust valve brakeSteering GearPower steering, hydraulic steering with power assistanceTireQuantity4 pcs with one spare tireSpecifications8.25R20TransmissionManual type,6 Forwards and 1 reverseCabinSingle row seat, Tiltable. It can accommodate three people. With air conditioner.EngineBrandWeichaiFuel typeDieselPower(kw)95 kwHorsepower(HP)130Cylinder number4Emission standardEuro 2UpperWater tankCapacity(cbm/tons)10/10Tank Dimension(mm)4200*2200*1400Tank materialQ235 carbon steelThickness(mm) 4Water pumpChina local brandSuction Height7MFunction1, Front Side Rear Sprinkling width≥14m2, Water cannon range≥28mRemarks1. AM/FM radio2. 2pcs water hose.3. Color is optional

Water Tank Truck Diagram

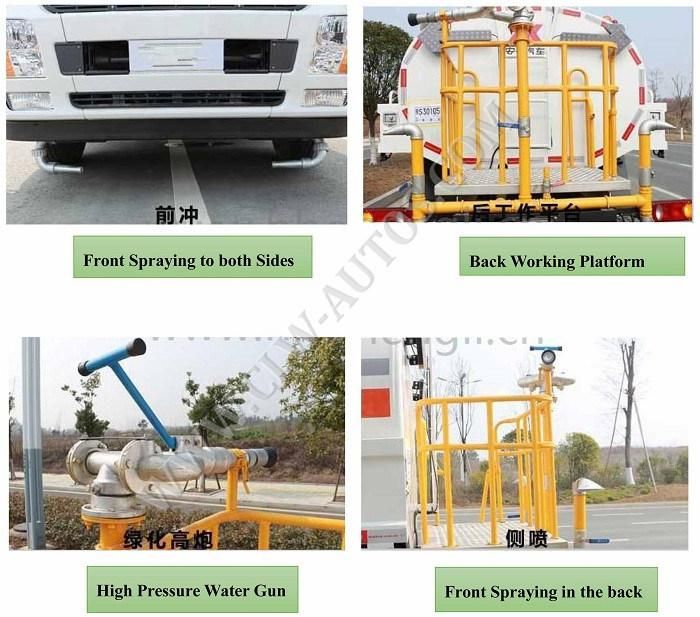

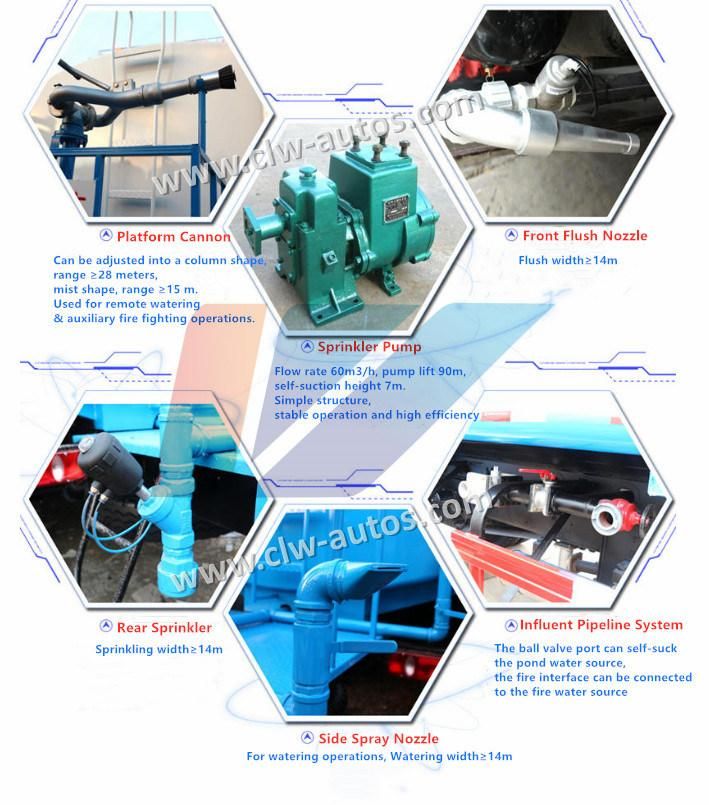

Parts Photos

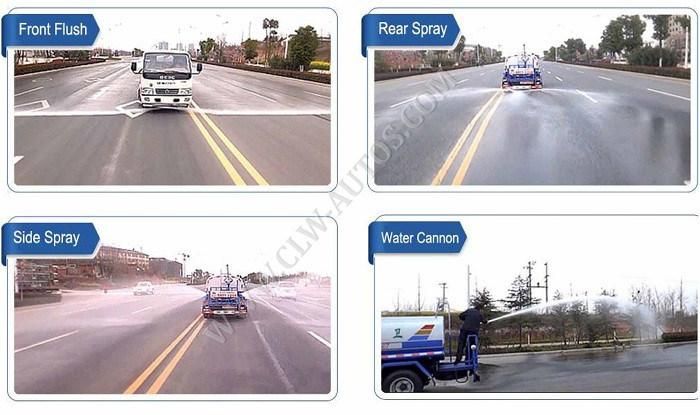

Working Show




Other Special Truck Series



Factory Overview



Overseas Exhibition and Local Support




Customer  Visiting
