• Model NO.：CLW5086LJC
• Fuel：Diesel
• Drive Wheel：4×2
• Brand：Isuzu
• Models：Small
• Usage：Compression Type
• Condition：New
• Chassis Brand：Isuzu, Dongfeng, Foton, Sinotruk, JAC, etc.
• Campacting Ratio：0.8-0.9 Ton,M3
• Compression Ratio：3-4
• Compression Cycle Time：No More Than 15s
• Unload Garbage Time：No More Than 23 S
• Hydraulic Pressure：16MPa
• Garbage Box Thickness：Side 3mm, Bottom 4mm, Carbon Steel-Q345A
• Garbage Box Volume：5cbm, 8cbm, 10cbm, 12cbm, 15cbm, 18cbm, 20cbm, etc
• Garbage Box Capacity：4ton, 6ton, 8ton, 10ton, 12ton, 15ton, 16ton, etc.
• Dirty Water Tank Volume：0.2cbm
• Hopper Volume：0.8cbm
• Controlling Way：Manual and Electrical Control
• Color：as Per Customer′s Request
• Warranty：1 Year
• Transport Package：Naked Pack with Wax
• Specification：6520*2100*2600 (mm)
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

General Technical ParametersOverall Dimension7320×2300×2650(mm)Gross Vehicle Weight10300(Kg)Curb Weight6500(Kg)Chassis SpecificationChassis BrandISUZUDrive model4*2CabinSingle Row, LHD, with air condition, audio system, and USB, etc.Number of Passengers2EngineModel4HK1-TCG40/190HP, 4-stroke direct injection , 4-cylinder in-line, intercooled supercharging, withABS.Power140KW/190HPEmission standardEURO 4Displacement5700(ml)Fuel typeDieselGearboxMSB-6MT, 6Forwards & 1Reverse, manual operation, with power steering.Brake SystemOil breakWheel Base3815mmFront/Rear Axle Loading4000/7000(Kg)Approach/Departure Angle24/12°Tire8.25R20, 6pc with 1 spare tireMax Driving Speed110(km/h)Upperstructure SpecificationCompector BoxBox Volume8CBMBox Capacity6TonDirty Water Tank Volume0.2CBMHopper Volume0.8CBMCompression density0.8-0.9T/CBMCompression ratio3-4Compression cycle time≤15 sUnload garbage time≤23 sBody ThicknessSide3mm, Carbon Steel-Q345ABottom4mm, Carbon Steel-Q345AThe Electromagnetic ValveUZCT-115/24V, 2setsHydraulic Pressure16MpaControlling WayManual and electrical controlOther Configuration

1. Tail feed flip frame or flip bucket, PLC one-button control system, etc.

   After-sales Service

   1)Pre-sales Service: Communicate with customers, analyze their needs.
   2)Sales Service: Provide professional technical solutions, recommend the right models accordingly.
   3)After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

   Reference Photos

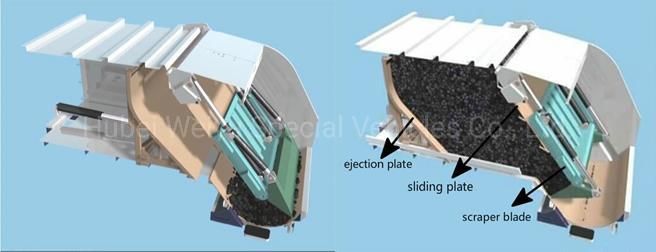

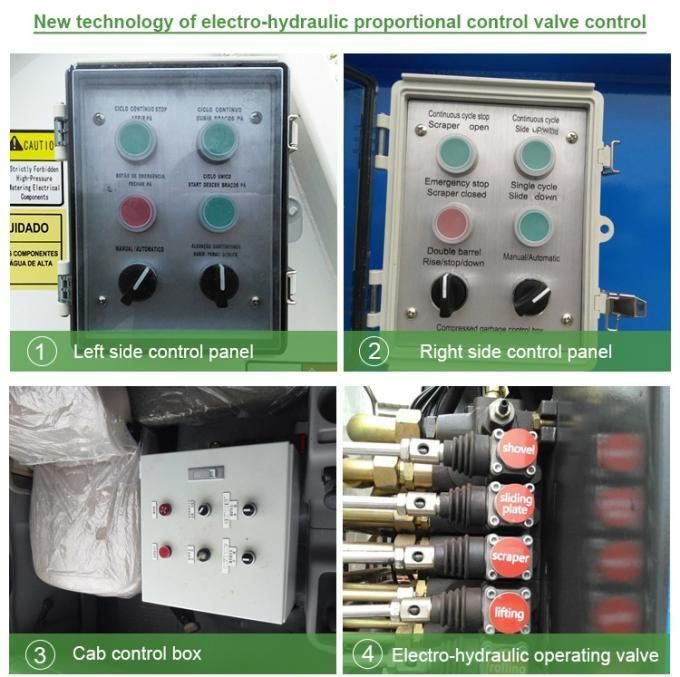

   Main Working System

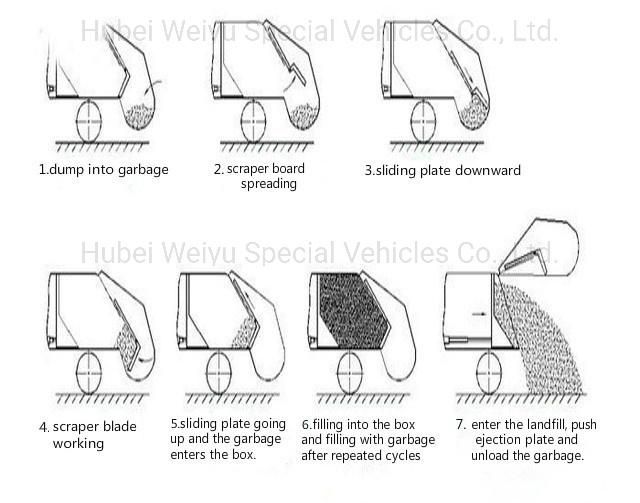

   Garbage Loading and Unloading Process

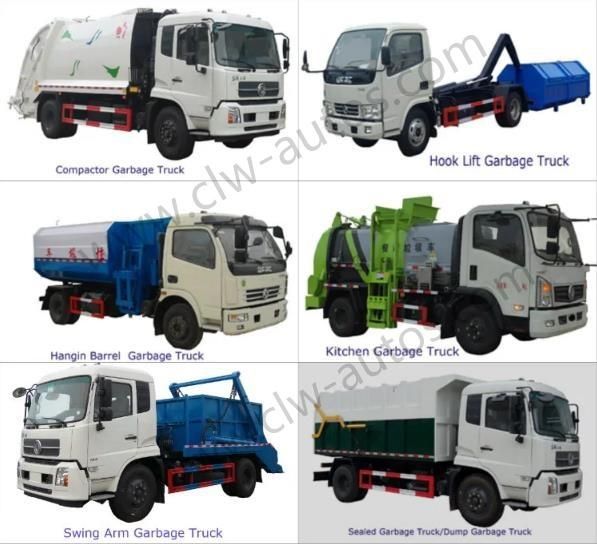

   Various Kinds of Garbage Trucks
