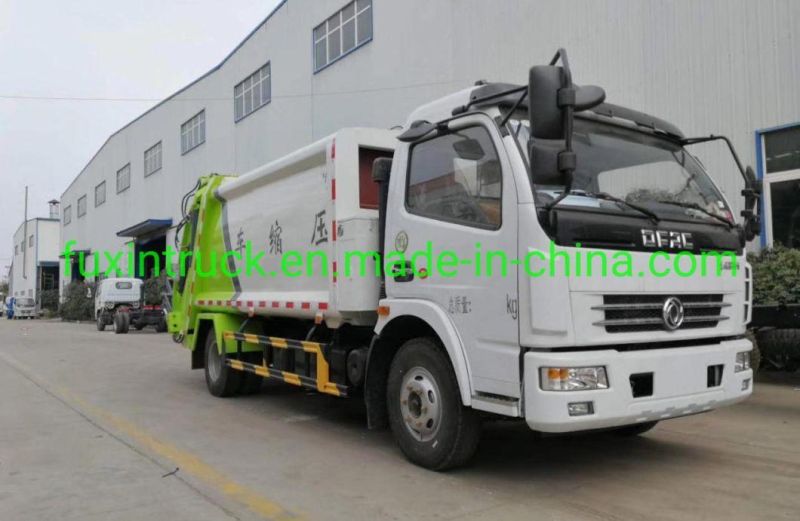

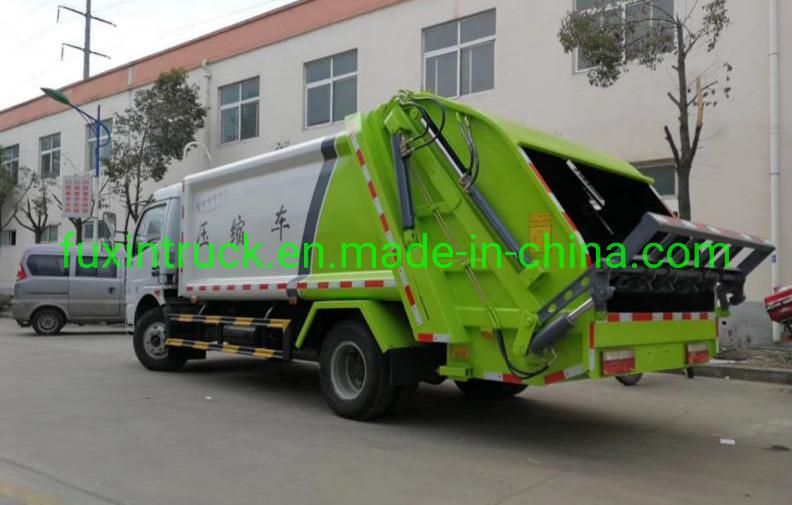

9 Cubic Meters Compression Garbage Truck
Shandong Fuxin Automobile Technology Co., Ltd.- After-sales Service：We Supply Spare Parts to The Importer
- Warranty：12 Months After Delivery at Destination Port
- Type：Recycling
- Certification：ISO9000, TS16949
- Volume：6 Cubic Meters
- Emission Standard：China Emission III
Base Info
- Transmission Type：Automatic
- Payload：9 Tons
- Fuel：Diesel
- Drive Wheel：4×2
- Brand：Dongfeng
- Models：Medium
- Usage：Compression Type
- Condition：New
- Transport Package：Nude in CBU
- Specification：9 cubic meters
- Trademark：FOSION
- Origin：China
- HS Code：87059090
- Production Capacity：300 Units Per Year
Description
Chassis Model DONGFENG Tianjin 9m³ Garbage Truck Engine 8JS118/YUCHAI 210 Cabin D912 Flat Head Cabin Gearbox WANLIYANG 5 shifts/SHANCHI 8 shifts Tread(mm) 3800mm/4500mm Axles (Front/rear) T5/T10 Tires 9.00R-20 Battery 24V Camel brand Beam 198mm Dimensions 7150*2300*2750 Box volume 9m³ Outer box Arc/Optional square Box material Thickness 4mm Compression ratio ≥2.5 Filler effective volume ≥0.5m³ Filling cycle time ≤35m s Shirk trash time ≤25 s way to control Automatic/Manual Max pressure of hydraulic system 16MPa Multi-way reversing valve CHANGYUAN, HEFEI, CHINA Hydraulic oil pump CHANGYUAN, HEFEI, CHINA Hydraulic cylinder Swiss HAIPU Control System Siemens PLC electronic control technology Bucket turning mechanism Hang two 240L standard trash cans at the same time
