Isuzu Vc46 6X4 350HP Diesel Waste Collection Truck
China Truck International Limited- Type：Compactor
- Volume：6001-10000L
- Emission Standard：Euro 4
- Fuel：Diesel
- Drive Wheel：6×4
- Brand：Isuzu
Base Info
- Models：Large
- Usage：Compression Type
- Condition：New
- Engine：6uz1-Tcg40
- Transmission：Fast 9js150ta-B
- Tire Size：11.00r20, 295,80r22.5
- Horsepower：350HP-380HP,257kw-279kw
- Displacement：9.8 L
- Overall Demension：9850X2500X3500mm
- Wheel Base：4605+1300 mm
- Compactor Body：20m3
- Front/Rear Sewage Capacity (L)：250+150
- Lifting Time of Filler (S)：8-10s
- Volume of Filler(M3)：2.5
- Time of One Filling Cycle(S)：Less Than 25s
- Max Compression Force (Kg)：>35000
- Transport Package：Nude Packing
- Specification：ISO, TS16949, CCC
- Trademark：ISUZU
- Origin：China
- HS Code：8704230000
- Production Capacity：1000PCS,Month
Description
ISUZU VC46 6x4 10 Wheeler 380HP GARBAGE TRUCK Model QL1250UTCZY Driving type: 6*4 left hand driving Engine Make: ISUZU Diesel 4-stroke direct injection diesel engine, electronic control Engine model:6UZ1-TCG40, Euro IV emission standard 6-cylinder in-line with water cooled, turbo-charging and intercooler Maximum output: 350HP-380HP/257KW-279KW Maximum torque: 1450 Nm Displacement: 9.8 L Transmission FAST 9JS150TA-B, 9 forwards and 1 reverse,manual Ratio:12.65 8.38 6.22 4.57 3.40 2.46 1.83 1.34 1 13.22 (R) Front Axle ISUZU F075, 7.5 Ton loading Capacity Rear Axle ISUZU RT210,21 Ton loading capacity,speed ratio 5.571 Chassis Frame: U-profile parallel ladder frame and reinforced subframe with size 320×90×8 MM Front suspension:12 semi-elliptic leaf spring Rear suspension:12 semi-elliptic lea spring Aluminium fuel tank: 400 L capacity with locking fuel cap, fitted to the off side of the chassis Steering Power steering, hydraulic steering with power assitance Brakes Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels ABS Wheels & Tyres Tire: 11 pcs 11.00-20 Option:11.00R20, 295/80R22.5 Driver's Cab ISUZU Flat roof cab, with two seats, 1 bed, A/C, electric glass, central lock Electrics Operating voltage: 24 V, negative grounded Starter: 24 V, 5.4 Kw Alternator: 3-phase, 28 V, 1500 W Batteries: 2 x 12 V, 165 Ah Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light Dimensions mm Wheel base 4605+1300 MM Overall length 9850 MM Overall width 2500 MM Overall height 3500 MM Weight kg Dead weight 14600 KG Rated Loading Capacity 13900 KG Gross vehicle weight(GVW) 28500 KG Front axle loading capacity 7500 KG Rear axle loading capacity 21000 KG Compactor Body
Volume of body(m3) 20 Volume of filler(m3) 2.5 Time of one filling cycle(s) ≤25 Lifting time of filler (s) 8-10 Time of discharge (s) ≤40 Pressure of fluid system (Mpa) 20 Front/rear sewage capacity (L) 250+150 Max compression force (kg) >35000

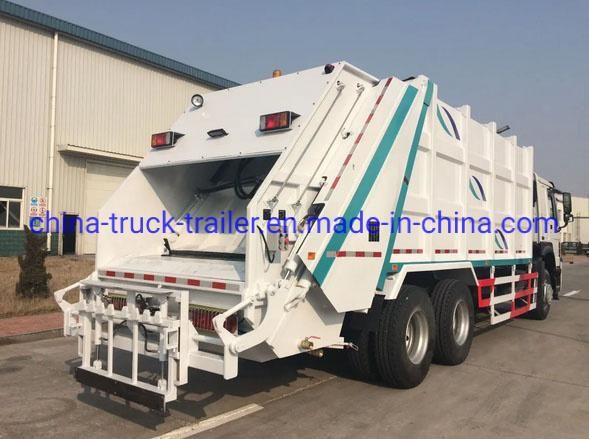

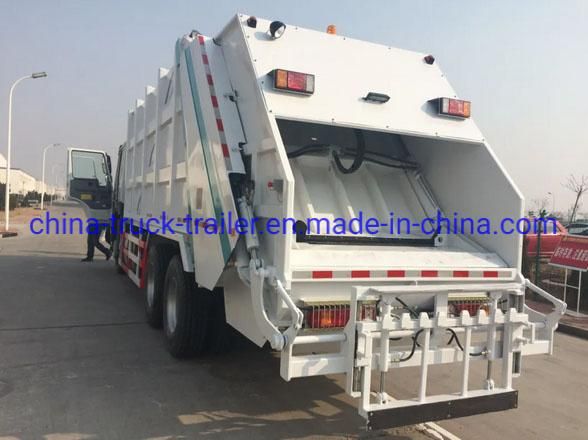

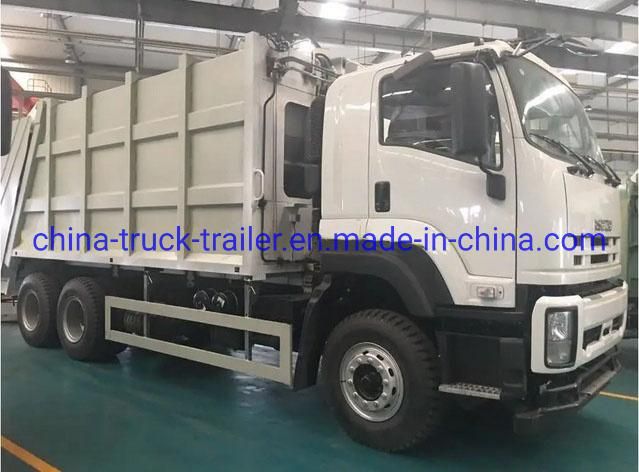

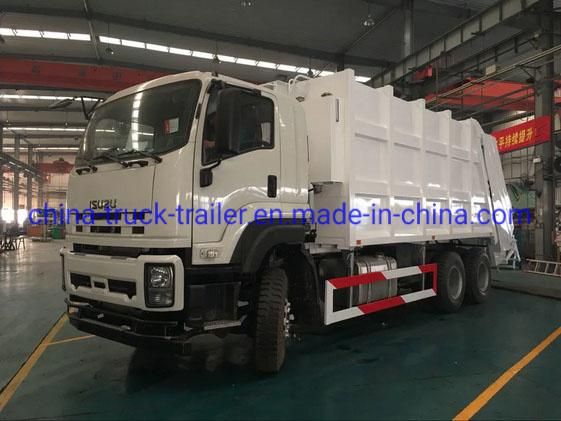

2.More Photos of ISUZU Garbage Compactor Truck:
3.Company information:
China Truck International Limited specialized in all kinds of modified vehicles of QINGLING Isuzu truck chassis.With a professional service. We are committed to providing not only high quality special trucks but also spare parts and technical support to customers.
QINGLING Motors is the only commercial vehicle manufacturer of Isuzu Japan in China. At present, it mainly produces ISUZU light,medium and heavy-duty full range of commercial vehicles with international advanced technology and quality, and five series of diesel engines with power ranging from 100 horsepower to 520 horsepower and one series of gasoline engines. We are the authorized export business company of QINGLING Motors. We guarantee professional one-stop service, competitive price with high performance and prompt response.
In 1985, QINGLING and ISUZU jointly established the first Sino-Japanese joint venture in China's auto industry.In 1994, it became the first Chinese auto industry to go public.In 2005,ISUZU Japan Company increased its capital and shares to QINGLING Motor Co.,Ltd.China and Japan have implemented joint operations to comprehensively deepen cooperation in technology, management, market and capital.In recent years, foreign cooperation has taken a strategic new step, launching a new generation of products such as GIGA heavy-duty vehicle and 4JZ light-duty engines simultaneously with Japan Isuzu.It further highlights its position as the only commercial truck partner of ISUZU in China.
4.FAQQ: Why us ?
A: Qingling Motors is the only manufacturer of Japan ISUZU in China.
Q. What is your terms of shipment?
A: Generally, trucks are always by container, bulk cargo vessel, ro-ro etc. spare parts are packed in wooden cases, shipped by
containers.
Q: Do you provide customized service?
A: Yes, we offer customized service as you needs for the performance , included special requirements .
Q. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products before you pay the balance.
Q. What is your terms of delivery?
A: EXW, FOB, CFR, CIF
Q. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and
the quantity of your order.
2.More Photos of ISUZU Garbage Compactor Truck:
3.Company information:China Truck International Limited specialized in all kinds of modified vehicles of QINGLING Isuzu truck chassis.With a professional service. We are committed to providing not only high quality special trucks but also spare parts and technical support to customers.
QINGLING Motors is the only commercial vehicle manufacturer of Isuzu Japan in China. At present, it mainly produces ISUZU light,medium and heavy-duty full range of commercial vehicles with international advanced technology and quality, and five series of diesel engines with power ranging from 100 horsepower to 520 horsepower and one series of gasoline engines. We are the authorized export business company of QINGLING Motors. We guarantee professional one-stop service, competitive price with high performance and prompt response.
In 1985, QINGLING and ISUZU jointly established the first Sino-Japanese joint venture in China's auto industry.In 1994, it became the first Chinese auto industry to go public.In 2005,ISUZU Japan Company increased its capital and shares to QINGLING Motor Co.,Ltd.China and Japan have implemented joint operations to comprehensively deepen cooperation in technology, management, market and capital.In recent years, foreign cooperation has taken a strategic new step, launching a new generation of products such as GIGA heavy-duty vehicle and 4JZ light-duty engines simultaneously with Japan Isuzu.It further highlights its position as the only commercial truck partner of ISUZU in China.
4.FAQQ: Why us ?
A: Qingling Motors is the only manufacturer of Japan ISUZU in China.
Q. What is your terms of shipment?
A: Generally, trucks are always by container, bulk cargo vessel, ro-ro etc. spare parts are packed in wooden cases, shipped by
containers.
Q: Do you provide customized service?
A: Yes, we offer customized service as you needs for the performance , included special requirements .
Q. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products before you pay the balance.
Q. What is your terms of delivery?
A: EXW, FOB, CFR, CIF
Q. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and
the quantity of your order.
