• Model NO.：CLW5324-2
• Fuel：Diesel
• Drive Wheel：4X4
• Horsepower：150-250hp
• Condition：New
• Chassis Brand：HOWO
• Traction Type：4*4
• Cabin：4 Doors with A,C
• Engine Model：125kw,170HP
• Fire Pump：CB10,60
• Lifting Lamp：4X1000W, Height More Than 7.5m
• Material of Tank：Carbon Steel
• Flow Rate of Fire Pump：60L,S
• Suction Depth：Deeper Than 7m
• Flow Rate of Fire：60L,S
• Tanker Capacity：6000L
• Fire Monitor Range：55m
• Fire Monitor Rotation Angle：360 Degree
• Warranty：1 Year
• Transport Package：Naked, Waxed, Bulk Ship, RO-RO
• Specification：6t, 6cbm, 6000L
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

The main technical parameters

The dimensions:

6752,7792,8292,9192×2520×3200(mm)

Total quality:

18000(Kg)

Anti-lock braking system:

with

Curb weight:

9000(Kg)

The rated load quality:

8870(Kg)

Approach Angle/Angle of departure:

31/23, 31/16, 31/15, 31/13 (°)

Suspension before/after suspension:

1602/1350,1602/1890,1602/2090,1602/2390(mm)

Axial load:

7000/11000

Wheel base:

3800,4300,4600,5200(mm)

Shaft:

2

Top speed:

90(km/h)

Fuel consumption:

29.0, 28.9

Spring leaf number:

4/9 + 6, 9/9 + 6

Tyre number:

6

Tire specifications:

11.00-20 18PR,11.00R20 18PR,12.00-20 16PR,12.00-20 18PR,12.00-20 20PR,12.00R20 16PR,12.00R20 18PR,12.00R20 20PR

Before the wheel track:

2041202 2

After the wheel track:

1850

vehicle VIN

LZZ1BEMD××××××××× LZZ1BEMF××××××××× LZZ1BEMH××××××××× LZZ1BEND××××××××× LZZ1BENF××××××××× LZZ1BENH×××××××××

Engine parameters

The engine

Engine manufacturing enterprises

Displacement (ml)

Power (kw)

D10.28-50
D10.31-50
D10.34-50
MC11.32-50

SINOTRUCK

9726
9726
9726
10518

206
228
249
238

Vehicle fuel parameters

Fuel types:

diesel

Chassis emissions standards:

EURO 3-4

other

1, Cross-country total GW 16000 kg, axle weight (kg) for 6500/9500, cross-country loading 7000 kg.

2,  Optional D10.28-50, D10.31-50, D10.34-50 engine,fuel consumption  29.0 L / 100 km;

   Optional MC11.32-50 engine, fuel consumption   28.9 L / 100 km.

Fuel consumption parameters

Working condition of the city

Working condition of the suburbs

Comprehensive value

36.60

29.63

29.05

36.37

29.41

28.85

SpecialFunction

Water tank volume(L)

6000

Foam tank volume(L)

2000

Fire Monitor

Model:PS50 Water monitor rated pressure:0.5-1.2MPa
Water monitor rated flow:50L/S       Water monitor rated reach≥70m               Pitching angle(°):-30~70       Level back to the corner(°):360                   Spray angle(°)≥100

Fire Pump

Model:CB10/60

(1)pump pressure (Mpa):1.0
flow(L/S):60L/S/1.0MParotate speed(rmp):2800power(kw)98.5
time of drawing water:40s

(2)pump pressure (Mpa):1.3
flow(L/S):42L/S/1.3MParotate speed(rmp):2990power(kw)93.5
time of drawing water:40s

Chassis
ZZ1167M4617C
Dimensions (length×width×height) (mm)
8640×2475×3350
Cab seating capacity
4
Engine model
WD615.93 EURO III
Engine power(kW)
213/2200r/min
Wheel base(mm)
4600
Max. Speed(km/h)
102
Tank capacity (kg)
7000
Water: 5000
Foam: 2000
Pump model
CB20.10/30.60-XZ
Pump flow(L/s)
(1.0MPa)
Normal pressure
60
(2.0MPa)
Middle pressure
30
Fire monitor
Model
PL48/PS80W
Flow(L/s)
48/50
Reach(m)
Water≥60, foam≥55
Fire Pump
Atmospheric pressure pump
Type: BS30 firefighting pump, Flow capacity: 30L/s, Pressure: 1.0MPa
Medium-low pressure pump
Type: CB60/10: Low pressure Flow capacity: 40L/s/1.0MPa; Medium pressure Flow capacity: 25L/S/2.0MPa
Fire Monitor
Type
SP80
Shot Range
≥60m


Relying on strong technological capability, we can produce and sell the DONGFENG, SINOTRUCK, JMC, ISUZU, NORTH Benz series water fire truck, foam fire truck, powder 2. Fire truck, emergency rescue fire truck, forest fire truck, water truck with fire pump etc.

Our fire truck is widely used for fire fighting of construction, forest, petroleum, chemical industry, factories, mines, oil depot, wharf and other places.

All of our fire trucks with reliable quality, stable performance and reasonable price, and also all are equiped with full fire equipments.
 No. NameSpecificationQ'tRemark1Suction pipeØ125×2000mm4PCS  2Fire fighting beltØ65×2000mm8PCS  3Fire fighting beltØ80×2000mm4PCS  4Water purifierFJF1251PC  5WyeFF651PC  6NcreaserKJ65/802PCS  7Belt pothookFG6004PCS  8Belt clothFP4704PCS  9Above ground hydrant wrenchFB4501PC  10Underground hydrant wrenchFBX8001PC  11Suction wrenchFS100/1252PCS  12Straight stream shut-off nozzleQZG191PC  13Straight stream nozzleQZ191PC  14Straight stream multi-jet squirtQZH191PC  15Fire fighting axeGF2851PC  16ToolGT11PC  17Fire extinguisher  1PC

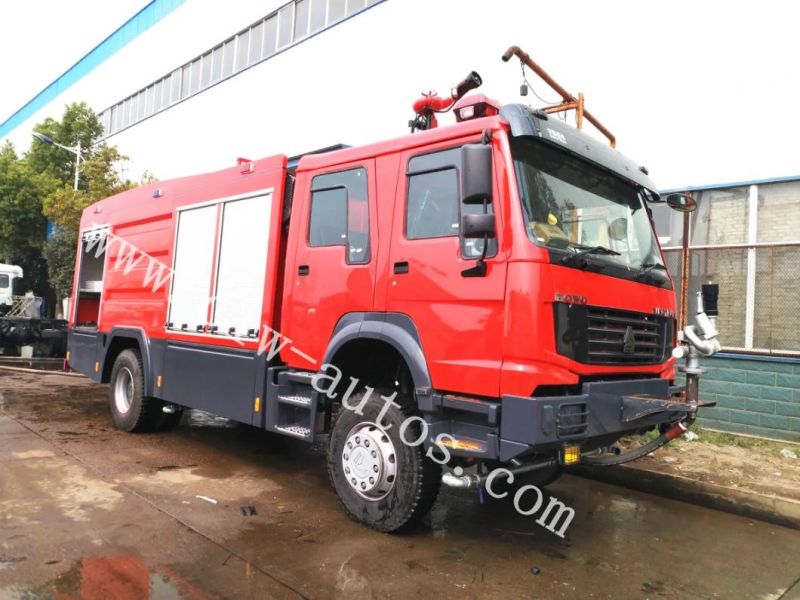

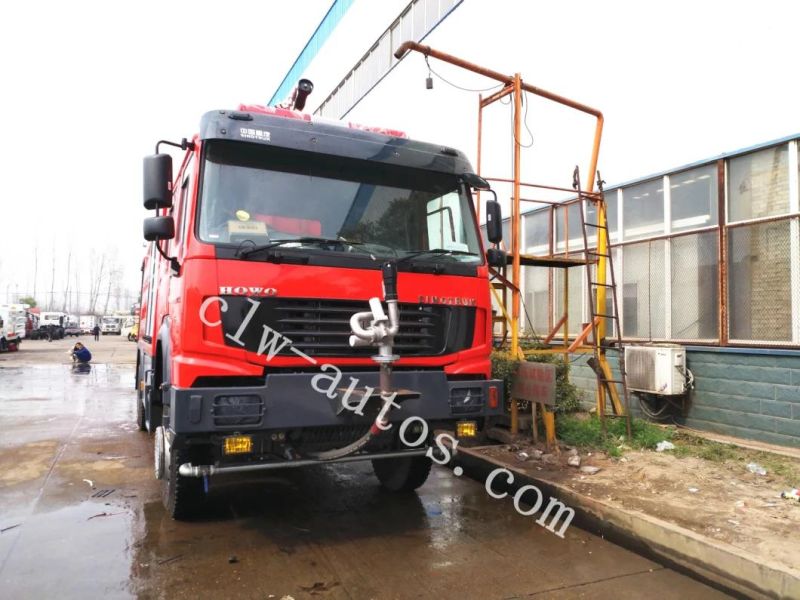

Product Specification Reference Photos

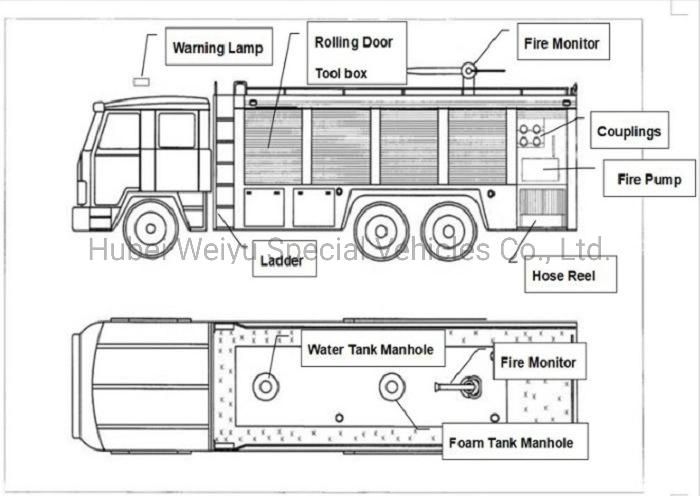

Main Structure Diagram

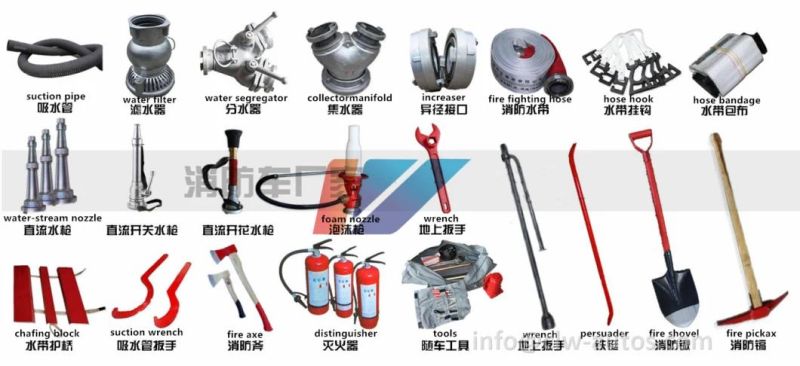

Main Tools of Fire Fighting Truck

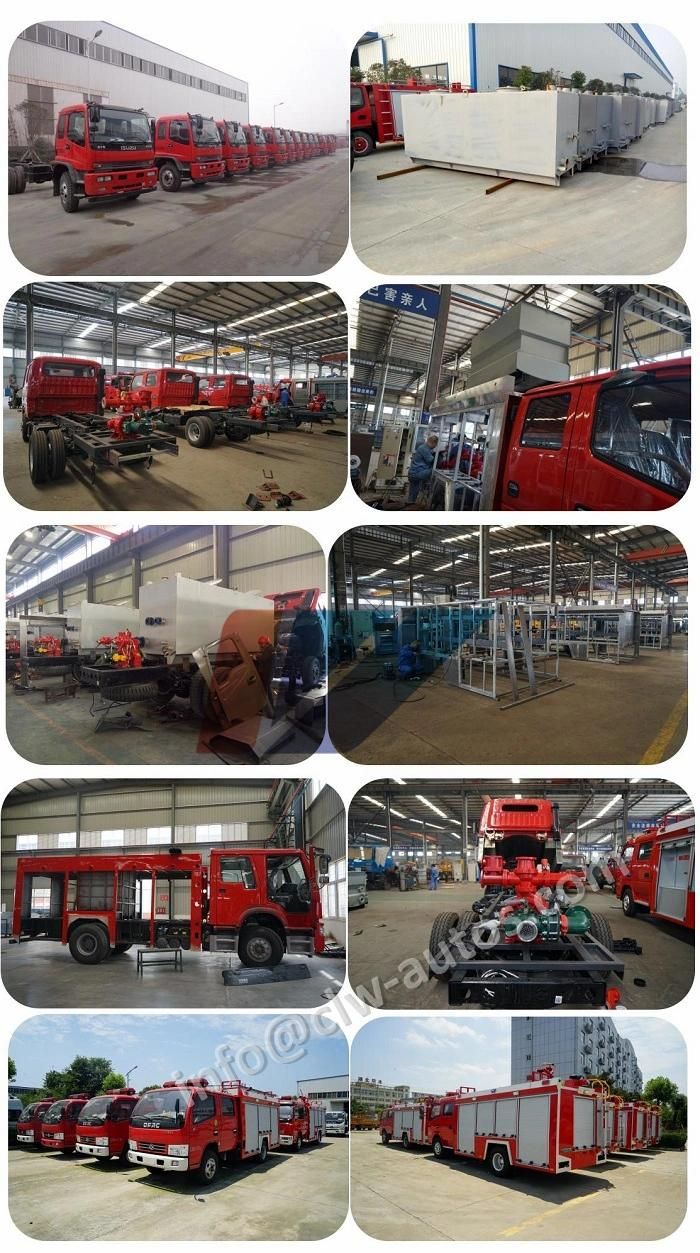

Production Show

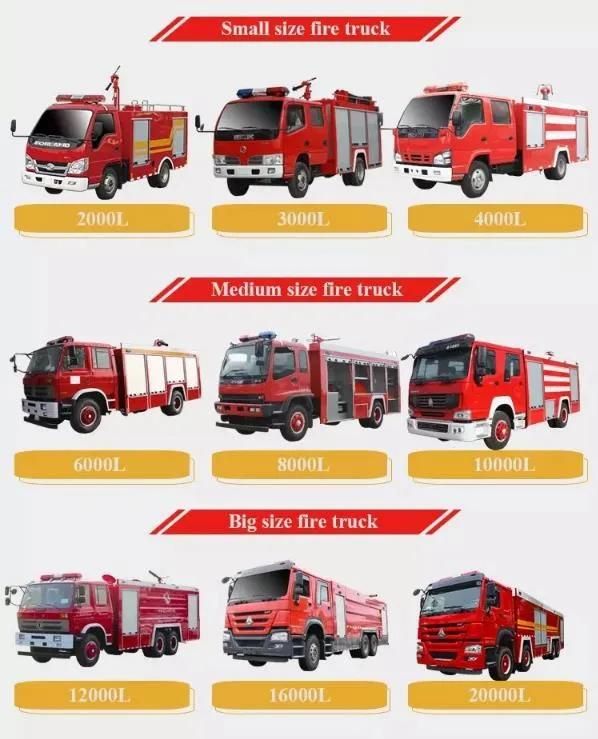

Different Capacity of Fire Fighting Truck


Certificates


Our Overseas Exhibition


Contact Mr. Sidney Wang for more details
