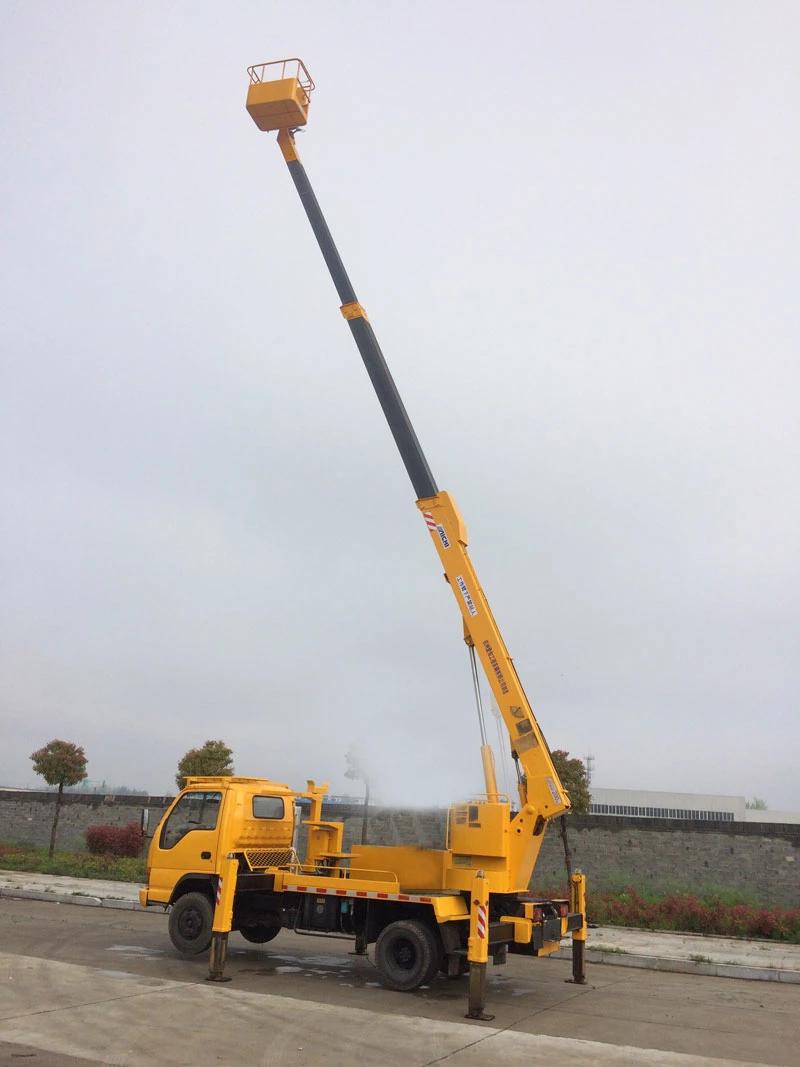

JAC Brand 16m High Working Platform Truck
CLW Heavy Industry Co., Ltd- After-sales Service：Lifetime Technical Support, Parts Supply etc
- Warranty：12 Month for Three Key Parts( Engine Gear-Box Axle
- Type：Z
- Certification：ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE
- Emission Standard：Euro 3
- Hoesrpower：120HP
Base Info
- Payload：800kg
- Fuel：Diesel
- Transmission Type：Manual
- Drive Wheel：4x2
- Condition：New
- Chassis Model：Hfc1073
- Engine Model：Hfc4da1
- Horse Power：120HP
- Working Height：12m, 13m, 14m, 16m
- Working Platform Rating Allowable Passen：2
- Crane(Optional)：1.5 Ton
- Tire：7.00-16tire, 6 + 1(Spare)
- Working Platform Dimension：1100X570X1000mm
- Export Markets：Global
- Transport Package：RO-RO Bulk Naked Container
- Specification：ISO, CCC, CE, ASME, ASTM, EEC
- Trademark：CLW
- Origin：Hubei China
- HS Code：8705909090
- Production Capacity：100000PCS,Year
Description
Overview
This parameter is just for your reference.CLW5060Description JAC High Working Platform Truck Drive Model 4X2 Chassis HFC1073 Vehicle Main Dimensions Dimensions(L x W x H)mm 7300X2000X3050 Wheel base (mm) 3360 Overhang (front/rear) (mm) 1105/2035 Wheel track (front/rear) (mm) 1440/1425 Approach/Departure angle(°) 24/14 Weight in KGS Curb Weight 5975 GVW. 6300 Max. driving speed(km/h) 90 Engine Model HFC4DA1-2C Type 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling Horse Power(HP) 120HP Emission standard Euro IV Gearbox 5 forwards & 1 reverse Clutch Reinforced diaphragm clutch Steering Gear Power steering, hydraulic steering with power assistance Fuel tank (L) 200 Tire 7.00-16 tire , 6pcs+1 spare Brakes compressed air brake UPPER Max operation height >=16m Max operation radius >=7m Max working platform height >=14.5m Working platform rating loading 250kg Turning Angle 360°(left or right) Working platform rating allowable passengers 2 working platform dimension 1100X570X1000mm Leg and Quality H-shape legs/4 Cage Insulating material (can be operated both in the air and on the earth) Crane(optional) 1.5ton
FAQ
1.Our price term: FOB Shanghai as common, other port is also acceptable.
2. Our Payment term: T/T, 30% deposit after order confirmation, 70% balance should be paid before delivery.
3. Delivery time: the delivery time is 20-30 days as common, the exact delivery time depends on the order and the current production condition.
Packaging and shipping
1, Packaging: nude or waxing;
2. Shipping: Ro-Ro ship or bulk ship according to the customer' order or requirement
Company information
Chengli Special Automobile CL.,LTD --a professional company which deal in different kinds of special vechiles,trailers ,constuction machinery and truck accessories.
12 independents workshops.
Established from 2004.
300 senior engineers and technicians. About 2000 to 3000 workers.
380kinds of LPG tank,trucks and semi-trailers.
Turnover 2 billion trucks and semi-trailers annually.
1000 sets of equipments, 25 assemble lines .
