• Model NO.：CLW5014HP
• Maximum Horsepower：336HP
• Condition：New
• Loading Capacity：12cbm
• Material：Manganese Steel
• Tank Thickness：5mm,6mm
• Wheel Base：4350+1350 mm
• Horsepower：336 HP
• Gearbox：10 Forward, 2 Reverse
• Water Supply：400L
• Hydraulic Pump：Italy or USA Brand
• Motor：Italy or USA Brand
• Reducer：Italy or USA Brand
• Radiator：Chinese Famous Brand
• Logo：as Per Customer′s Request
• User Manual：Yes
• Warranty：One Year
• Transport Package：Roll-Roll, Bulk Shipment
• Specification：12CBM
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

ConditionNew condition/Left hand drive/6X4ChassisBrandHOWOCurb weight(kg)25000 kgWheelbase(mm)4320+1350 mmDimensions(mm)9480*2496*3980 mmOverhang (front/rear) (mm)1500/2605 mmApproach/Departure angle(°)16/16°Axle Load(kg)7000/18000kgMax. driving speed(km/h)90 km/hClutchReinforced diaphragm clutchBrakes

Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels

Auxiliary brake: engine exhaust valve brake

Steering GearPower steering, hydraulic steering with power assistanceTire
 Number10pcs with one spare tireSpecifications12.00R20Batter2x12VStarter motor capacity24VFuel tank(L)400 LTransmission

10 Forwards and 1 Reverse with PTO

CabinIt can accommodate three people, With Air conditionerEnginePower(kw)/Horsepower/(HP)248 kw/336 HPEmission standardEuro 2Upper & EquipmentMixer drumMax. Capacity12.0 CBMMaterialManganese Steel, 5mm thicknessSpecificationFeeding Speed (m3/min)≥2.8Discharging Speed (m3/min)≥2Discharging Residual rate(%)≤0.5Mixing Tank Rotating Speed (RPM)0-17Discharging range180° full rangeDriving systemHydraulic PumpUS SAUER DANFOSS brandHydraulic MotorUS SAUER DANFOSS brandReducerItaly PMP brandRadiatorChina local brand KLMAKEWater supply systemWater Tank Capacity (liters)400Water supply typePneumatic water supplyControl systemControl WayConnecting Rod ControllingStructure Features

1. Mixer Tank and Vane use special anti-resistant material.

2. Discharging slot and feeding plate are the same anti-resistant material as the tank.

3. Humanized Operation System, Connecting Rod Controlling, easy, safe, reliable.

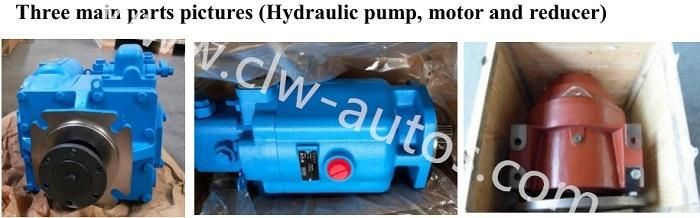

4. With US and Italy brand driving system. Discharging fast, no residue.

Remarks1. Color is optional

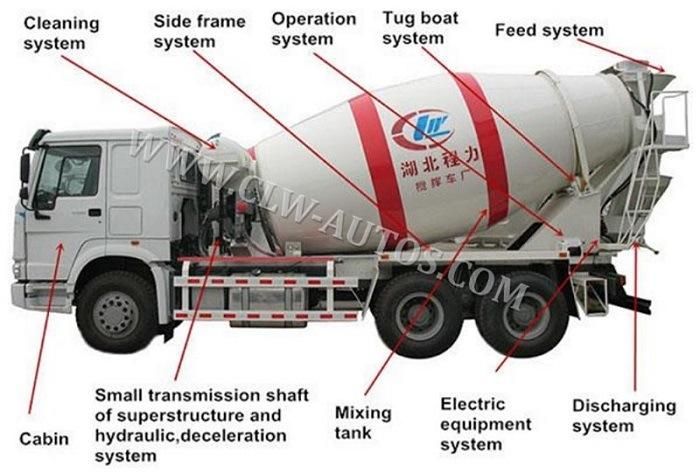

Truck Diagram

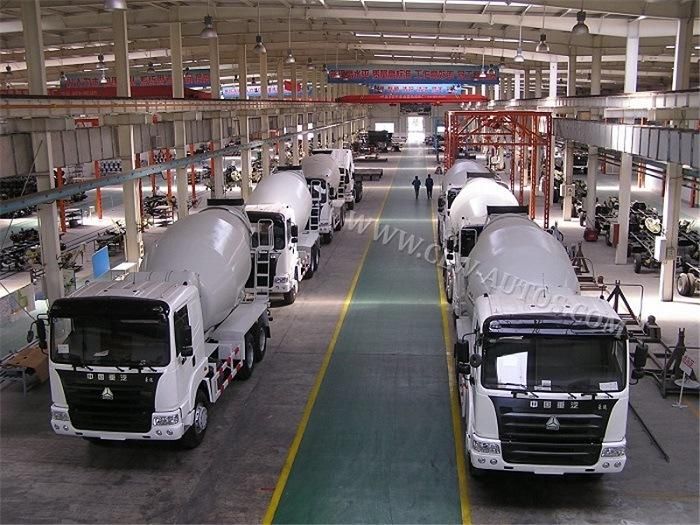

Workshop

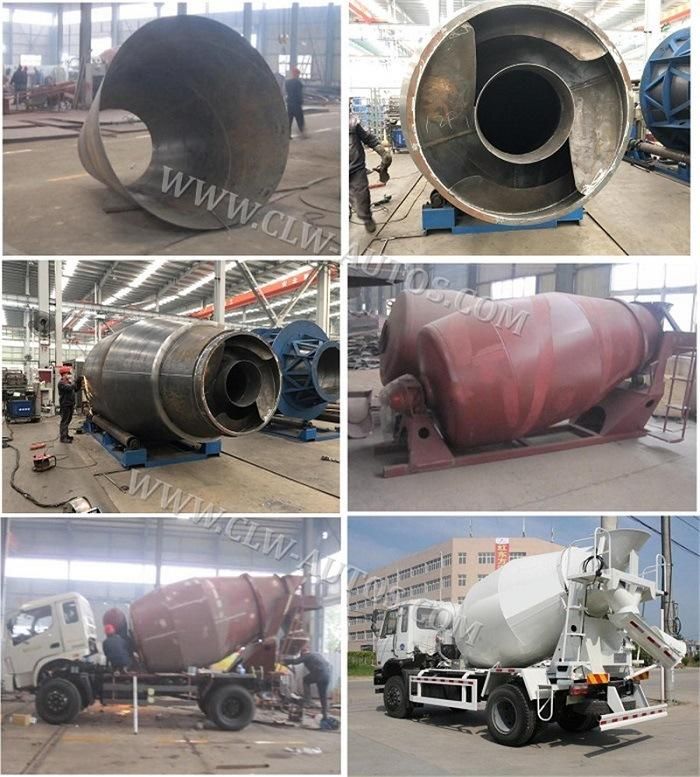

Production Procedure




Factory Overview



Overseas Exhibition and Local Support




Customer  Visiting







Contact Alice for more details (+86 180 7154 2196):
