• Model NO.：sewage suction
• Fuel：Diesel
• Tank Volume：160000L
• Drive Wheel：4x2
• Hoesrpower：251-350hp
• Condition：New
• Color：Red, Yellow, Green, White, Blue.etc
• Driver Seat：Air Suspension Seat
• Transport Package：Nude Packing After Painted Wax
• Specification：SGS, CCC, ISO
• Trademark：SINOTRUK
• Origin：China
• HS Code：8705909990
• Production Capacity：3000units,Year

Basic Info.

Model NO. sewage suction Fuel Diesel Tank Volume 160000L Drive Wheel 4x2 Hoesrpower 251-350hp Condition New Color Red, Yellow, Green, White, Blue.etc Driver Seat Air Suspension Seat Transport Package Nude Packing After Painted Wax Specification SGS, CCC, ISO Trademark SINOTRUK Origin China HS Code 8705909990 Production Capacity 3000units/Year

Product Description

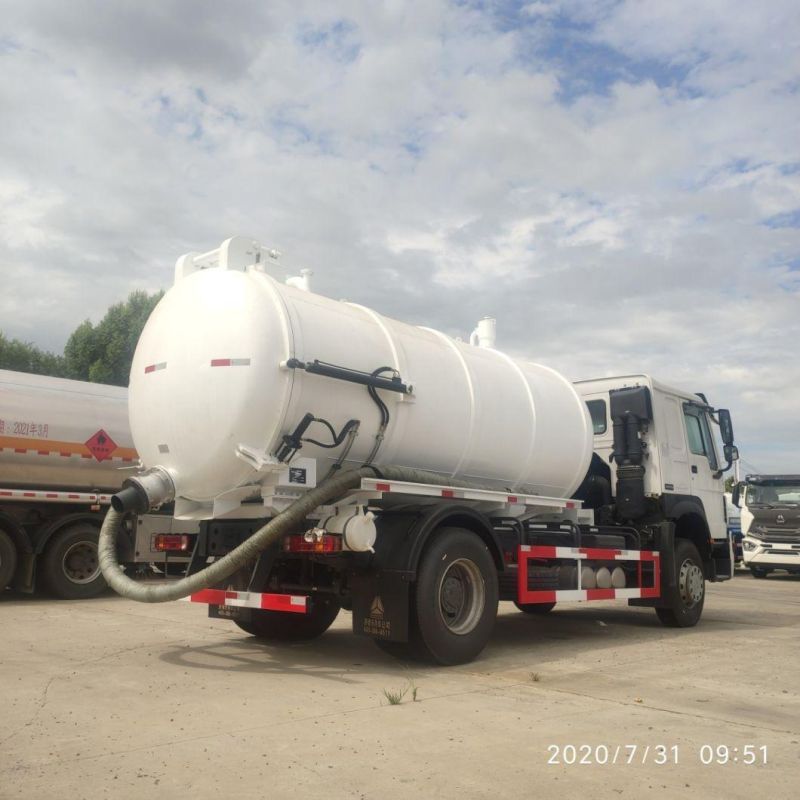

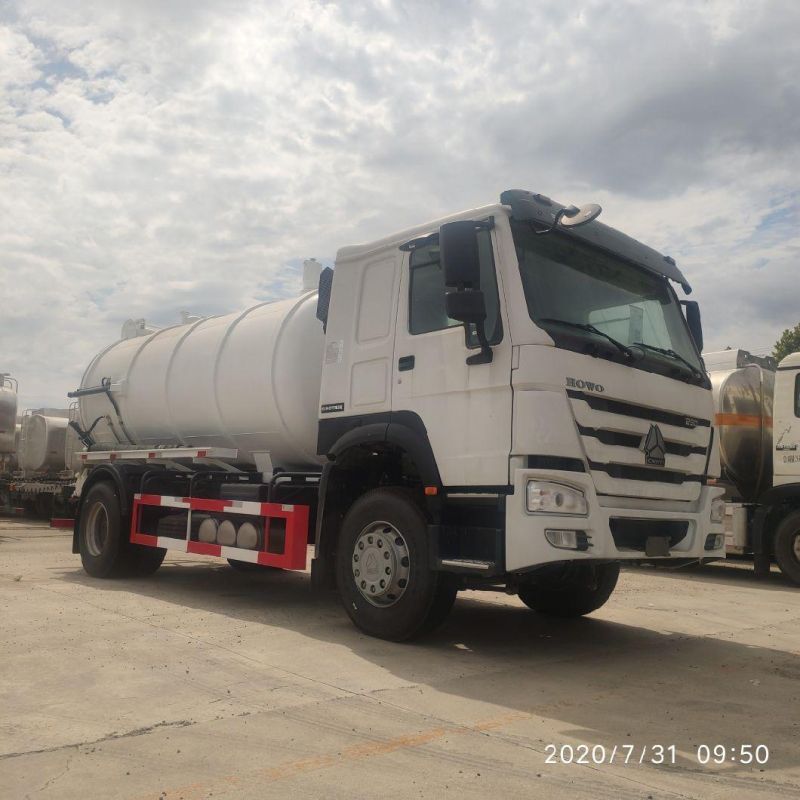

1. Fecal Suction Truck Vacuum Tank Truck
1.1 vacuum tank sewage suction truck is loading and discharging quickly.
1.2. Fecal suction truck with 16cbm tank volume.
1.3. Sewage suction truck is discharged clearly.

2. Fecal Suction Truck Vacuum Tank Truck main equipment:
sewage suction tank truck cab - single and half row, optional: A/C
vacuum sewage truck Engine - sino howo, 6 cylinders
vacuum truck manual gearbox -9-speed
sewage truck drive axle loading capacity- 20T
vacuum suction truck tire - 10.00-R20
vacuum sewage sucking truck tank capacity - 16cbm

3. Fecal Suction Truck Vacuum Tank Truck main specification:

Item	Unit	Parameter
Description		Suction truck
Model		CLW5161GXW3
Drive type		4*2
Chassis type		EQ1167
Overall dimension	mm	7700*2470*3250
GVW	kg	15990
Curb weight	kg	6795
Fact cabbage	kg	10000
Wheel base	mm	4700
Front/ rear track base	mm	1910/1800
Approach/departure angle	°	34/13
Engine model		B190 33  Cummins
Displacement of the engine	ml	5900
Horsepower	hp	190
Max. speed	Km/h	80
Engine type		4-stroke direct injection ,  6-cylinder in-line with water cooling, turbo-charging and inter-cooling
Emission standard		Euro III
Gearbox		5 forwards&1 reverse
Tire specification		9.00-20; 7pc including 1 spare tire
Suspension		Steel suspension
ABS system		Available
Operation control system		Electrically hydraulic control
Electric system		24v
Cabin seats		3 person available
Dimension of the body	mm	4500*1600mm
Material of the body		Q235A
Others equipment		100mmΦ suction pipe, suction time ≤5min, effective suction range≥8,max vacuum degree ≤15 K pa, dump angle ≥45
Delivery time		30days
Warranty		12 month for three key parts(gearbox, axle,engine) from the date of shipment.

Equipment

No.	Description	Type/size	Quantity
1	Cylinder	XWZX-90/50-1050×670	2
2	Cylinder	XWZX-100/70-1050×670	2
3	Tank	/	1
4	Inspection window	/	1
5	Pressure gauge	/	1
6	Φ65 ball valve	/	1
7	Φ150 ball valve	/	1
8	Rear lock door device	/	2
9	Φ100 ball valve	/	1
10	Oil-gas separator	/	1
11	Vacuum pump(800rpm, hydraulic, air cooled)	50QZDH-68/7000	1
12	Moisture separator	/	1
13	Fence	/	2
14	4-port valve	/	1
15	Plastic valve	/	1
16	Safety valve	/	1
17	Anti-overfill device	/	1






4. Packaging & Shipping

Truck is nude packing, shipping by container, bulk cargo, ro-ro.

We will choose the best shipping type basis on truck volume, truck structure, Sail Schedule, clients' requirement for clients!

5. FAQ

Q1: I want the front two tires are bias tires and the rear 9 tires are radial tires, is it ok ?

A: We can make the tires as your requirement to suit your country's need.

Q2: What about your products quality ?

A: Quality is our culture! "Our factory has advanced production technology and management team!    We always attach great importance to quality controlling from the very beginning!

Q 3: Can i have samples of this type of flatbed semi trailer to test the quality ?

A: Yes, you can buy any samples to test the quality,our MOQ is 1 unit.

Q 4: What others we can do ?

A: According to your order, we will provide the best price and quality trucks and trailers.    And we are well capable in offering overseas after-sales service. Besides, we also provide rational    packing and shipping program,let shipment save money and security.

Q 5: How to guarantee customers get the goods smoothly after they pay ?

A: Don't worry, dear. We have been in this field for 20 years, we will send you production photos once in a while, and we will help you to book the latest ship.

Q 6: What's the delivery time ?

A: The delivery time is within 15 working days after receiving your advance payment.

Q 7: Can you supply some quick-wear truck or semi trailer parts ?

A: Yes, we can supply truck and semi trailer parts as your request,such as oil filter, fuel filter, air filter, traction, traction pin, balance   beam and semi-trailer plate spring, hanging accessories, turntable, all kinds of trailer brake pads,   brake pan, bearings etc.

Q 8:  Do you have any used truck and semi trailer for sale ?

A: We have some trucks and trailers in stock for choice, from 2010-2016 year, the price are favorable. We'll    show you our stock if you need.

Q 9:  Which INCOTERMS 2010 TERMS can we work ?

MAOWO is a professional and sophisticated international player, can handle all INCOTERMS    2010 terms, and we normally work on FOB, CFR, CIF, CIP, EXW.

Q 10:  What logistics ways we can work for shipment?

A: We can ship construction machinery by various transportation tools.    (1) For 80% of our shipment, we will go by sea, to all main continents such as South America,    Middle East, Africa, Oceania etc. Either by container or RoRo/Bulk shipment.    (2) For neighborhood countries of China, such as Russia, Mongolia, Kazakhstan, Uzbekistan , Vietnam, Laos  etc.,we can ship construction machinery by road or railway.    (3) For light spare parts in urgent demand, we can ship it by international courier service, such as    DHL, TNT, UPS, or Fedex.

6. Warranty
(1) One year quality guarantee or within 100000km, which comes the first.
(2) Other spare part could be supplied by OEM at cost prices.
(3) Regularly callback to know the vehicle's working status.
(4) The overseas engineers are always ready to deal with unexpected needs.

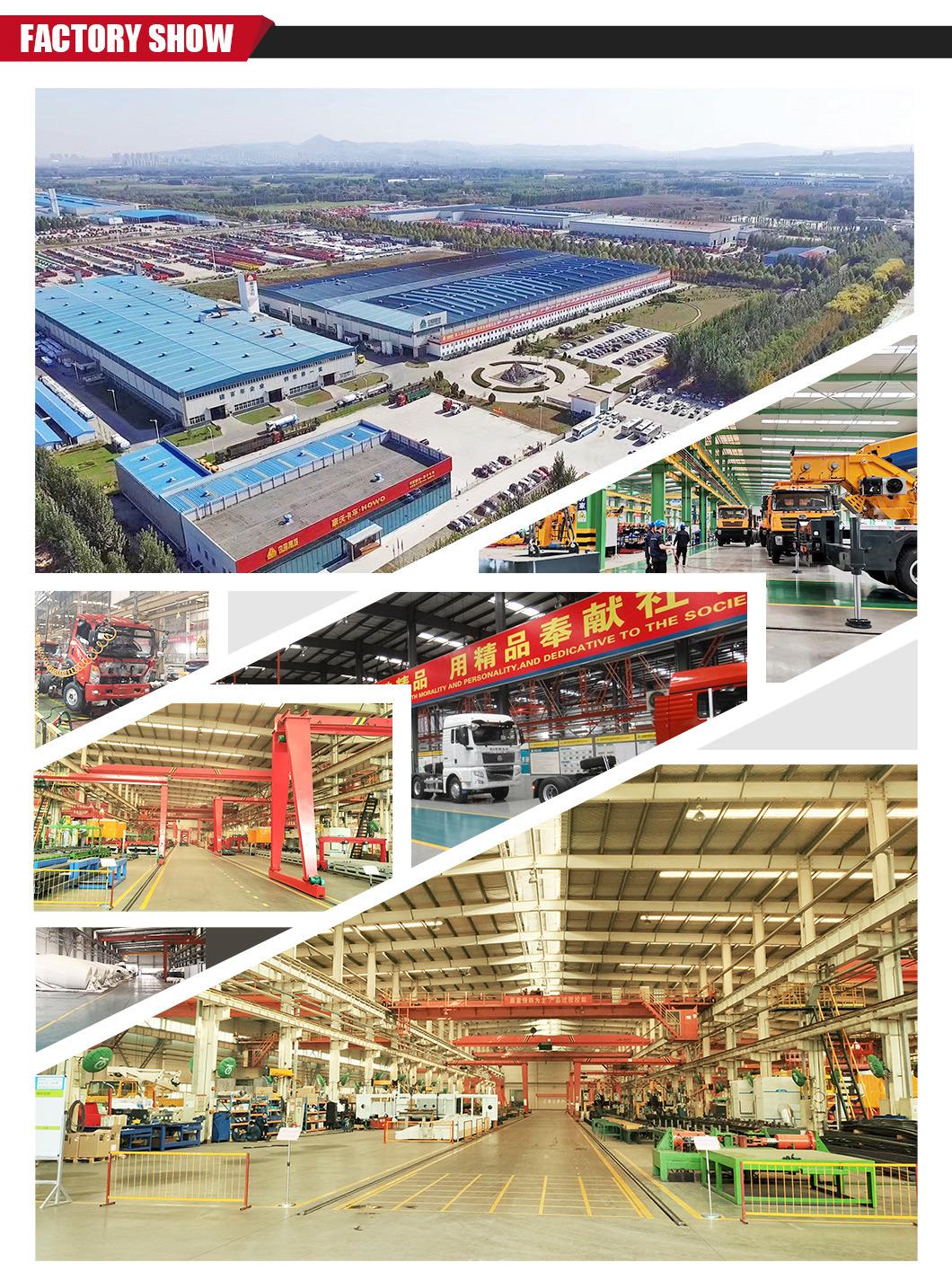

7. Company information
