High Quality Foton Forland 4X2 Refrigerated Truck 3tons 5tons Refrigerator Freezer Van Truck with Thermo King Freezer Unit
Hubei Weiyu Special Vehicles Co., Ltd.- After-sales Service：Yes
- Warranty：1 Year
- Certification：ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE
- Payload：3-5t
- Emission Standard：Euro 3
- Transmission Type：Manual
Base Info
- Model NO.：CLW5699
- Horsepower：＜150hp
- Fuel：Diesel
- Bearing Capacity：Medium
- Car Type：Van
- Condition：New
- Chassis Brand：Dongfeng, Foton, Sinotruk HOWO, Jmc, etc.
- Engine Power：115HP
- Wheel Base：3360mm
- Refrigerator Box Size：4180*1920*1800 (mm)
- Box Material：Fiberglass
- Insulating Layer：8cm Polyurethane Foam
- Refrigeration Brand：Thermoking, Carrier or Chinese Famous Brands
- Applicable Temperature：-18~0 Degree
- Logo or Pattern：as Per Customer′s Request
- Transport Package：Bulk Ship, RO-RO, Container
- Specification：16cbm, 18cbm, 20cbm, 3t, 4t, 5t
- Trademark：CLW
- Origin：Suizhou, China
- HS Code：8705909090
- Production Capacity：500 Unit,Month
Description
Axle
Number of axles: 2
Axle-load: 1800/2695
Wheel base(mm): 3360
Traction system
4*2
Fact cubage(m3)
12
GVW(kg)
4495
Curb weight(kg)
2710
Overall dimensions(mm)
5995×2200*3000
Upper box body size(mm)
4180*1920*1800
F/R track base(mm)
1590/1525
F/R overhang(mm)
1085/1550
Approach / departure angle(°)
23/17
Max speed(Km/h)
95
Equipment and Function
Chassis & preservation box body--standard material is glass fiber reinforced plastic, 8mm polyurethane insulation layer, Standard back open door and refrigeration unit;
Function: transport frozen foods (ice truck), dairy (milk truck) fruits and vegetables (fresh transporter) vaccine and drug transporter (vaccine truck), etc
Refrigerated Unit
-18 degrees
Product cycle
15-20 days
Warranty
12 months, from the date of supply

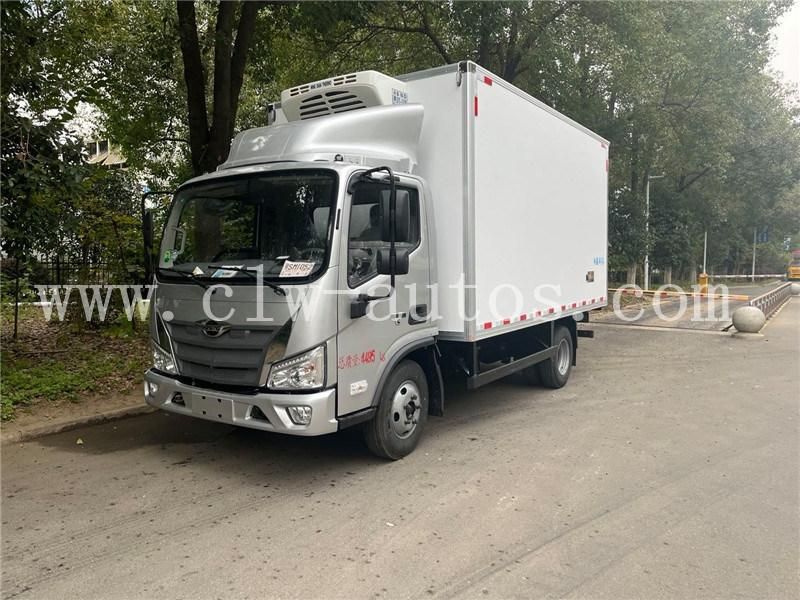

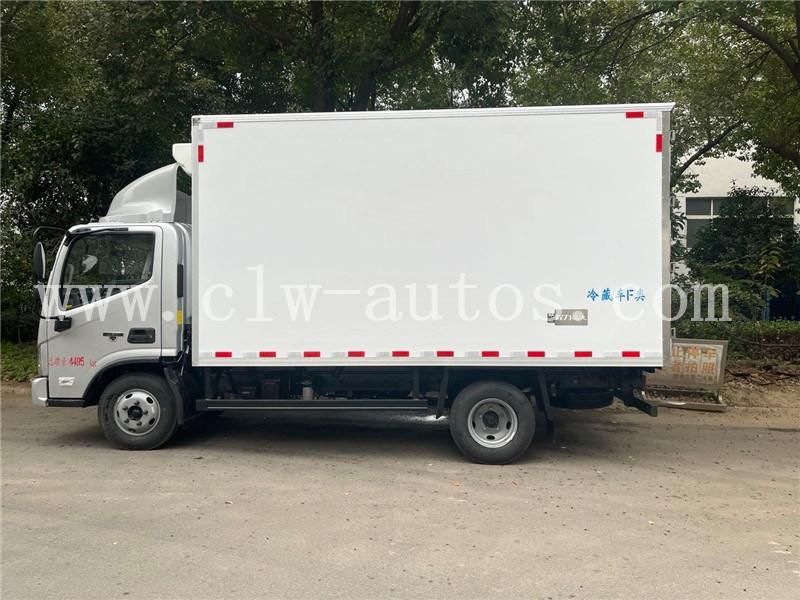

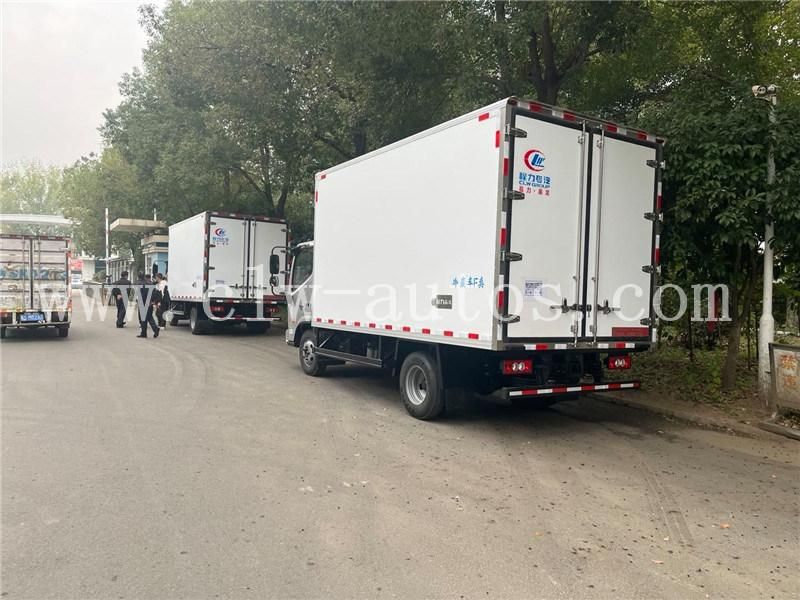

Reference Photos

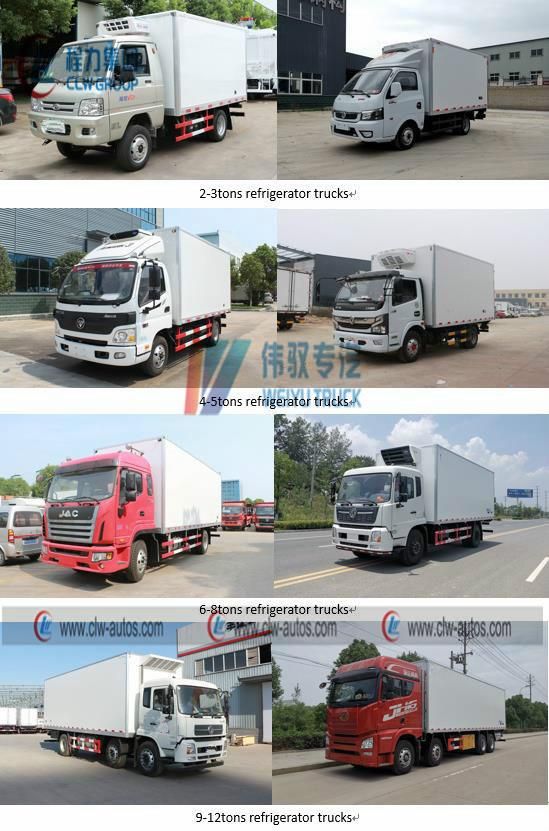

Different Capacities of Refrigerator Trucks

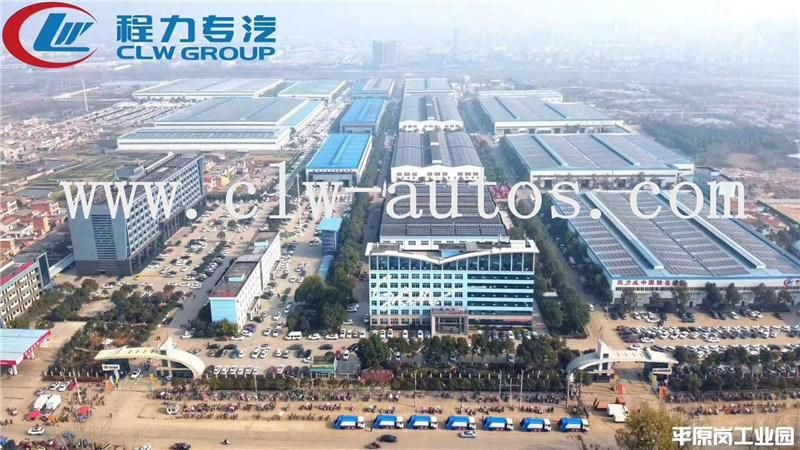

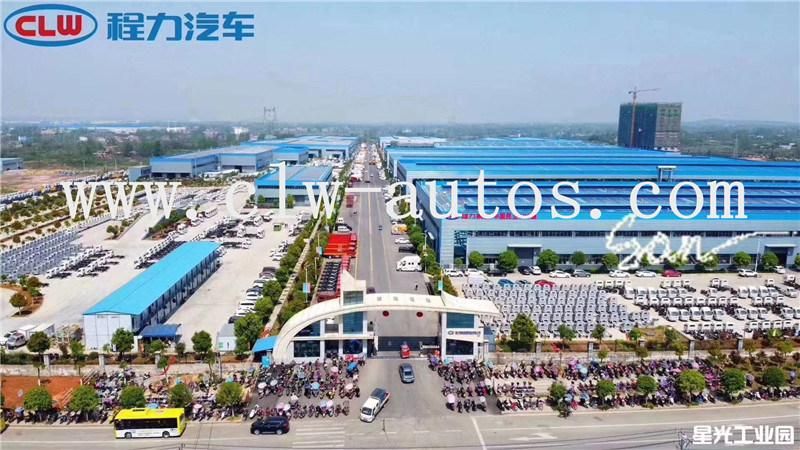

Factory overview
Certificates
Overseas Exhibitions
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer manual, video guidance and our engineers will go to customer's country to assist the
installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the
products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
After Sales Service
Email & Phone call tracking for each truck on timely manners.
Shipment
Land transportation or Ship by bulk cargo ship, container, roro ship
