Small Japan Isuz 5m3 5000L 5tons 5t Water Bowser Tank Truck

Hubei Fuya Vehicle Co., Ltd.
  • After-sales Service：72 Hours After Sales Serive and Solution
  • Warranty：2 Year
  • Volume：5001 - 10000L
  • Certification：ISO9000, CCC
  • Emission Standard：Euro 4, 5,6
  • Sprinkling Area：12 - 16m

Base Info

  • Model NO.：WTT05ISZ
  • Transmission Type：Manual
  • Payload：5-8t
  • Fuel：Diesel
  • Drive Wheel：4×2
  • Engine Capacity：4 - 6L
  • Condition：New
  • Truck Chassis：HOWO(I-Suzu, Dongfeng, Foton, Shacman, JAC)
  • Engine Power：190HP
  • Water Tank：5000L
  • Transport Package：Roro Ship
  • Specification：7500x2350x2950 mm
  • Trademark：FUYA
  • Origin：Hubei
  • HS Code：8705904000
  • Production Capacity：1000PCS,Yr

Description

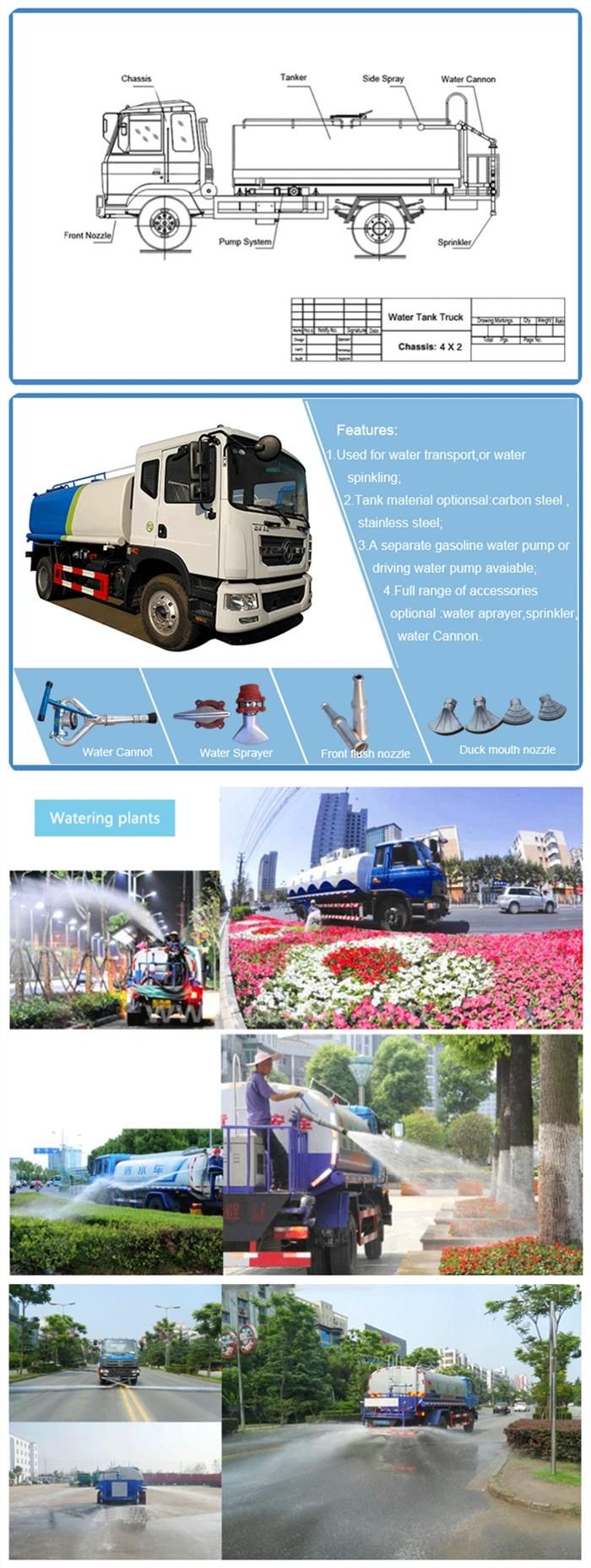

5m3 Water Sprayer TruckChassis Model I-SUZU ChassisModel 700P, sirngle row cab, with A/CDriving type4x2, RHD/LHDWheelbase3815 mmDimension7500x2350x2950 mmEngineModelAxleFront4TonsRear7TonsTire235/75R17.5, 6+1 tyres including one spare tyreTransmissionMLD, 6F+1R, ManualWater TankVolumeSpraying systemFront Sprinklersa sprinkler on the left and right side respectivelyRear Sprinklersa sprinkler on the left and right side respectivelyWorking Platform an operator standing there to operate the water gun high-pressure water gunshotting range over 28mWater suction tube2 tubes of 3m long, or 1 tube of 6m longWater level gauge1 setSpecial FunctionVertical suction height>7mSprinkler width>14mFlux90m3/hWater intake time<5minWater PumpWLOONG brand, for water suction and drainage as dual function

III. Working State:

1. Self-absorption self-discharge function, vertical suction ≤ 7 meters;

2. After the sprint, sprinkler width ≥ 14 meters;

3. Side spray, rear work platform, with green water cannons, 360-degree rotation, range ≥ 28 meters;

4. High-pressure gun water can be adjusted into a columnar, foggy, heavy rain, light rain, drizzle;

5. Equipped with high-power dedicated sprinkler pump, with a fire connector, gravity valve, with self-   priming function and
   pressurized discharge function;

6. Optional fire pump, range ≤ 50 meters.

Small Japan Isuz 5m3 5000L 5tons 5t Water Bowser Tank Truck

IV. About Us

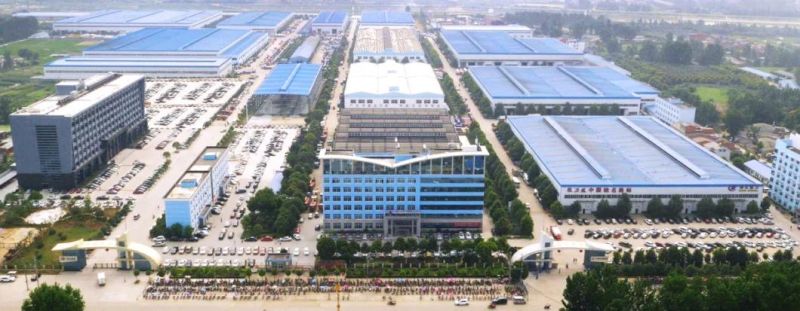

HUBEI FUYA VEHICLE CO.,LTD is an authorized special truck manufacturer which has many years in design ,product ,
sales and service in special trucks like as boom truck, fire truck, manlift truck, tank truck, garbage truck, tipper truck, wrecker
truck, refrigerated truck, water truck, etc.

Small Japan Isuz 5m3 5000L 5tons 5t Water Bowser Tank Truck

Our main products:
Small Japan Isuz 5m3 5000L 5tons 5t Water Bowser Tank Truck

Exporting
As Manufacturer, We Have Our Own License Of Import And Export.We Have Successfully Exported To Ghana, Sudan, Nigeria,
Angola ,Tajikistan, Namibia, Burma, Korea, Iran,American,Afghanistan,Iraq And Some Other Countries.The Development Of Our
Factory Is Getting Better And Better.

After Sales Service
Answer and solve your questions and consult within 24 hours
Overseas job site service available
One year guarantee about three key parts(axle, engine, transmission).Other spare parts could be supplied by cost price.
Other services:
1.All trucks and trailers are new and be customized to meet all your requirement.
2. All trucks and trailers are with 12 months quality guarantee.
3. CKD and SKD are available.
4. Technical support are provided.

FAQ
1.Our price term: FOB Shanghai as common, other port is also acceptable.
2. Our Payment term: T/T, 30% deposit after order confirmation, 70% balance should be paid before delivery.
3. Delivery time: the delivery time is 20-30 days as common, the exact delivery time depends on the order and the current
    production condition.

If you are interested in our trucks, pls contact me, I will send our best quotation to you.
