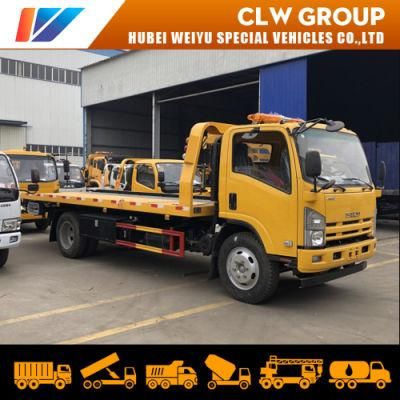

6tons 8tons Towing Truck Wrecker Flatbed Platform Recovery Truck Mounted Crane for Emergency Rescue
Hubei Weiyu Special Vehicles Co., Ltd.- Certification：ISO9000, CCC, CE
- Emission Standard：Euro 5
- Transmission Type：Manual
- Towing Tonnage：6ton
- Fuel：Diesel
- Bearing Capacity：5ton, 6ton, 8ton
Base Info
- Model NO.：CLW5125K8YJQ
- Brand：Dongfeng
- Condition：New
- Flatbed Dimensions：6000*2400mm
- Max. Loading Weight：8000kg
- Winch Rating Pulling Capacity：6000kg
- Length of Steel Cable：35m
- Rating Under-Pulling Capacity：6000kg
- Engine：180HP
- Gearbox：6 Forward & 1 Reverse
- Crane Max Lifting Capacity：8000kg
- Crane Max Lifting Height：14m
- Crane Max Working Range：11.5m
- Warranty：1 Year
- Transport Package：Bulk, RO-RO, Container
- Specification：5ton, 6ton, 8ton
- Trademark：CLW
- Origin：Suizhou, China
- HS Code：87059099
- Production Capacity：500unit Per Month
Description
1. Equiped with One Set of Auxiliary Wheels
2. Bandages 4pcs
3. Yellow Warning Lamp 1pc
4. Double Side Hydraulic Operation
5. Can Tow 2 Cars

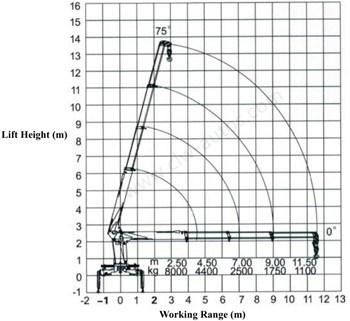

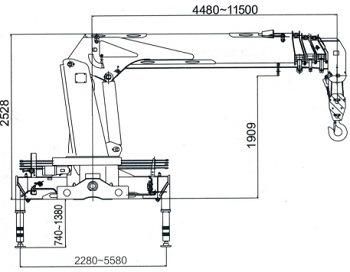

6. Outrigger 2pcs Parameters of the CraneItem Unit Value Max Lifting Capacity kg 8000@2.5m Max lifting height M 14 Max working range M 11.5 Max Lifting Moment T.M 20 Recommend Power kw 27 Max Oil Flow of Hydraulic System L/min 55 Max Pressure of Hydraulic System Mpa 27 Oil Tank Capacity L 160 Crane Weight kg 3315 Installation Space mm 1200 Rotation Angle ° 360° All Rotation

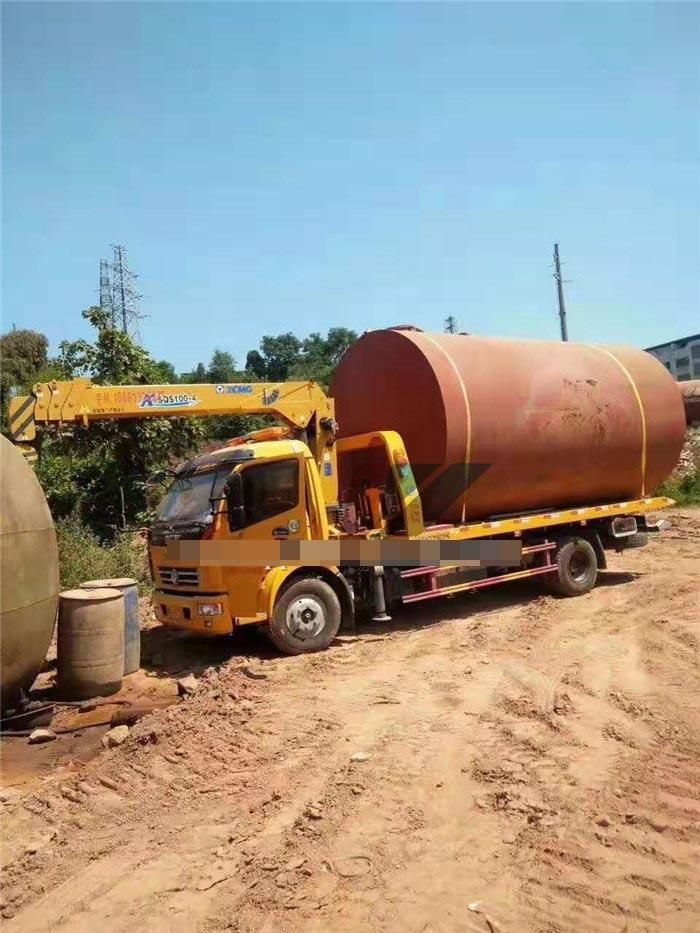

Working Scene:
Company Profile:
The CLW group, which was appointed by the Development and Reform Committee of China. ChengLi is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.
Packaging & Shipping:
1.By cargo bulk shipment or ro-ro shipment .
2.By Flat Rack Container.
2. Bandages 4pcs
3. Yellow Warning Lamp 1pc
4. Double Side Hydraulic Operation
5. Can Tow 2 Cars
6. Outrigger 2pcs Parameters of the Crane
Working Scene:
Company Profile:
The CLW group, which was appointed by the Development and Reform Committee of China. ChengLi is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.
- Certificate: ASM, ISO, BV, SGS, CCC etc.
- 12 independents workshops.
- 1000 sets of equipment, 25 assemble lines.
- 300 senior engineers and technicians. About 8000 workers.
- 800kinds of LPG, trucks and semi-trailers.
- 20 years wholesale experience
- Turnover 250 million and Export 20million annually
- Turnover 2 billion trucks and semi-trailers annually.
- LPG/Truck Sold to 90 countries
- Cooperates DONGFENG,SINOTRUCK,ISUZU,FOTON,FAW,BEIBEN,ETC
Packaging & Shipping:
1.By cargo bulk shipment or ro-ro shipment .
2.By Flat Rack Container.
