• Model NO.：GMDG23-U02
• Weight：880kg
• Wheel Base：1850mm
• Transport Package：Iron Frame & Carton
• Specification：3730× 1460× 2020mm
• Trademark：RARIRO
• Origin：China
• HS Code：87091109
• Production Capacity：1000 Units Per Year

MOTOR48V/5KW high efficiency high speed AC motorCONTROLLERCMOS system of infinitely variable speed, with the function of automatic
pretection fall slippery, downhill speed limited, personalized program designBATTERYMF 8*6V large capacity deep cycle traction batteryCHARGERauto high-frequency high pulse charger, input voltage of AC 110V/220V 50hz, output DC 48V 25Ah, with CE certificateACCELERATOROriginal inductive, non-contract variable speed system non-contractCHASSICFrame type, high strength steel structure, thermal spraying Zinc and dual
antirust paint processingCOVERHight strength shock resistance composite material (PT+PBT)REAR AXLEMotor direct type integral rear axle, with the mail reduction and differentialBRAKE SYSTEMDouble circuit four-wheel hydraulic brake (front disc rear drum), and
mechanical parking (manual)FRONT SUSPENSION SYSTEMMuti-plate leaf spring and hydraulic damping cylinder typre independent suspensionREAR SUSPENSION SYSTEMMuti-plate leaf spring and hydraulic damping cylinder typre independent suspensionSTEERING SYSTEMSingle stage gear rack steering system, with the function of steering self-retureLIGHT SYSTEMLED Headlights, front turn signal lamp and rear combination lights, buzzerSEATING SYSTEMOne-piece seat system, confirm to the principle of ergonomics, comfortable seating, emulation leather seatsCELLINGHight strength shock resistance composite material (PT+PBT)TYREVacuum meridian mini car tyre, specification: 165/70 R13DASHBOARDWith the ignition switch, electricity meter, direction selector switch, turning signals, brake lights, horn meter, etcFRONT WINDSHIELDFoldable, high strength organic glassSELECTION FITTINGRain curtain, ECU electric power steering system, radio, luxury leather seatsMAIN TECHNICAL PARAMETERS AND PERFORMANCE INDEX OF THE VEHICLEWEIGHT880KGCHARGING TIME8-12 hoursL*W*H (MM)3730×1460×2020mmMAXIMUM MILEAGE≥100kmWHEEL BASE1850mmMINIMUM GAP170mmFRONT TREAD1290mmMIN. BRAKING DISTANCE≤5mREAR TREAD1260mmGRADEABILITY25%MIN TRUNING RADIUS3500mmMAXIMUM SPEED24-30km/hSEATER8 SEATSMAXIMUM BACK SPEED9-13km/hCHARGING TIME8-12 hoursCONTAINER LOADING2/20GP, 6/40HQ
PRODUCT DETAILS
Royal grace presented in chrome plate front shades and headlingts in heroic style
Console easy for driving brings freedom for movement
Noble leather seats, comfortable in seating
Big famous vacuum tire fullybears the strong load, and make the dring steadly
Good confort suspension system
Electric prower steering system ECU

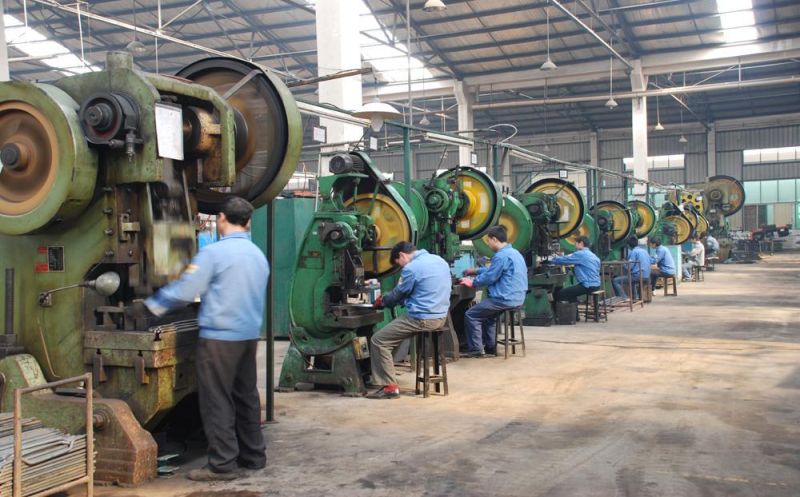

FACTORY

In the Nansha Free Trade Zone
20 minutes from Canton Fair
One hour from Guangzhou Baiyun International Airport



CERTIFICATE
ISO9001 Certificate
ISO14001 Certificate
OHSAS18001 Certificate
CE Certificate
Trademark Certificates
Patent Certificates


PACKING & DELIVERY
SKD package by Iron frame
Leatheroid package outside
20 days delivery time
30 minutes to Nansha Port and 40 minutes to Huangpu Port

Q1:Are you factory or trading company?
A:We are  factory in Guangzhou City, Guangdong Province,China.Near Shenzhen
Q2:What kind of certificate you have accreditted ?
A:ISO9001 Certification, CE Certification. Manufacture license of special equipment and ERP  Intra Program Management.

Q3:Do you accpet customized products?
A:yes, we can make  the customized products  as per your drawings and other requirements including OEM

Q4:How long is for  the lead time of the product?
A: Generally within 15 days after receipt of the deposit.

Q5:How about the trading term and payment term?
A:We can accept FOB or CIF,T/T and L/C at sight payment

Q6:How about the warranty term and post service
A:one  year warranty,offer FOC components by  EXW cost shipped term,full weather post service .
