Foton Xiangling M1 Gasoline Refrigerated Truck Fresh Meat Vegetables Refrigerated Truck 4X2 Refrigerator Box Van Truck

Hubei Weiyu Special Vehicles Co., Ltd.
  • After-sales Service：Yes
  • Warranty：1 Year
  • Certification：ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE
  • Payload：2-3t
  • Emission Standard：Euro 4
  • Transmission Type：Manual

Base Info

  • Model NO.：CLW5121
  • Horsepower：＜150hp
  • Fuel：Gasoline
  • Bearing Capacity：Small
  • Car Type：Van
  • Condition：New
  • Chassis Brand：Dongfeng, Foton, Sinotruk HOWO, Isuzu, Jmc, etc.
  • Engine Power：116HP
  • Wheel Base：3200mm
  • Refrigerator Box Size：5605*1900*2700mm
  • Box Material：Fiberglass
  • Insulating Layer：8cm Polyurethane Foam
  • Refrigeration Brand：Thermoking, Carrier or Chinese Famous Brands
  • Applicable Temperature：-18~0 Degree
  • Logo or Pattern：as Per Customer′s Request
  • Transport Package：Bulk Ship, RO-RO, Container
  • Specification：8cbm, 9cbm, 10cbm, 2t, 3t, 4t
  • Trademark：CLW
  • Origin：Suizhou, China
  • HS Code：8705909090
  • Production Capacity：500 Unit,Month

Description

UpperstructureBox inner dimension(mm)3700*1710*1700Box SideExterior and interior with FRP( fiber reinforced plastic), and the middle with 80mm PU slices with vacuum negative pressure one-formed casting as the insulation layer, approved the related Ministry of Health of food grade requirements, etc. just like sandwich structure.Box FloorBaseboard adopts aluminum alloy anti-skipping diamond board, which assuring the insulation ability and the compact resistance of the baseboard.Doors

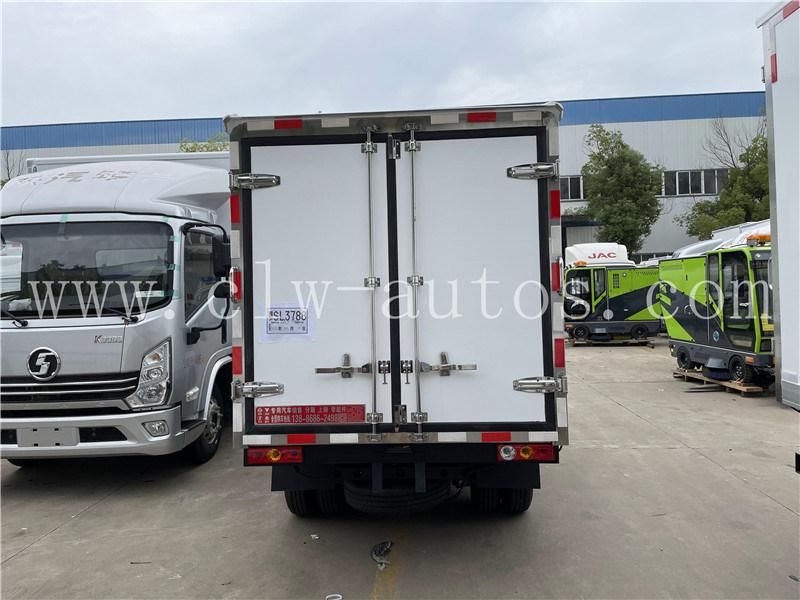

Frame of standard rear double doors adopts the stainless steel structure frame with light mass and perfect corrosive resistance, etc.

The door edgings frames are sealed with the imported high quality epdm rubber, making sure the van insulation stability.

Door edgings, door locks and accessories use stainless steel materials.

Refrigeration unit

Choose high quality China-made self-powered frozen refrigerating reefer, the lowest temperature is up to -5ºC to 15ºC. And the reefer can be adjusted at the driver cab.

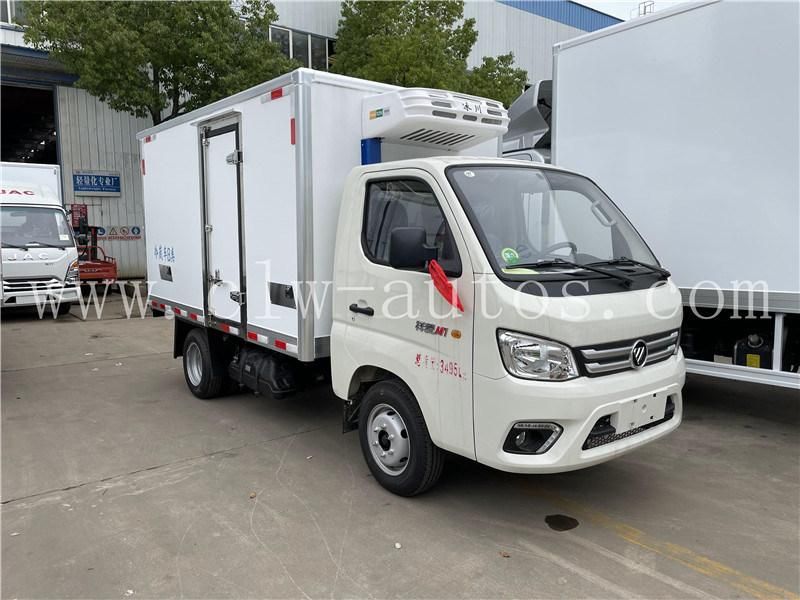

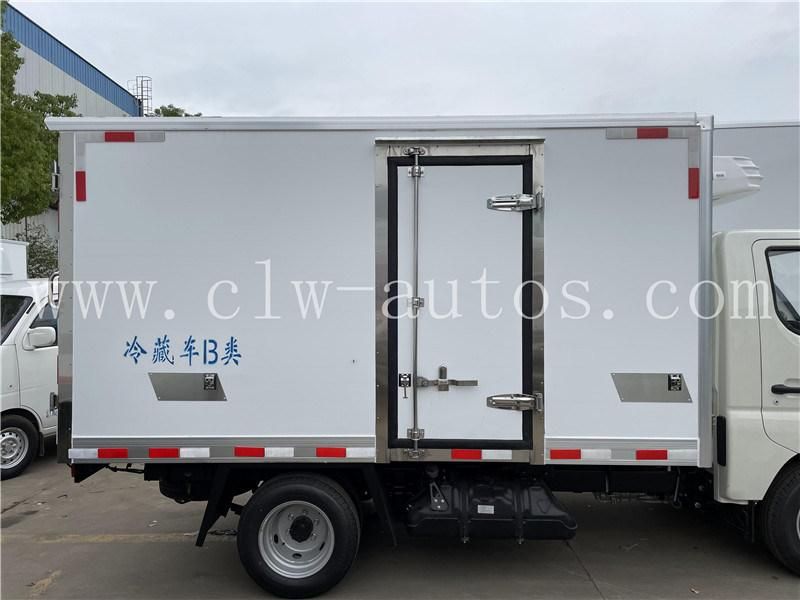

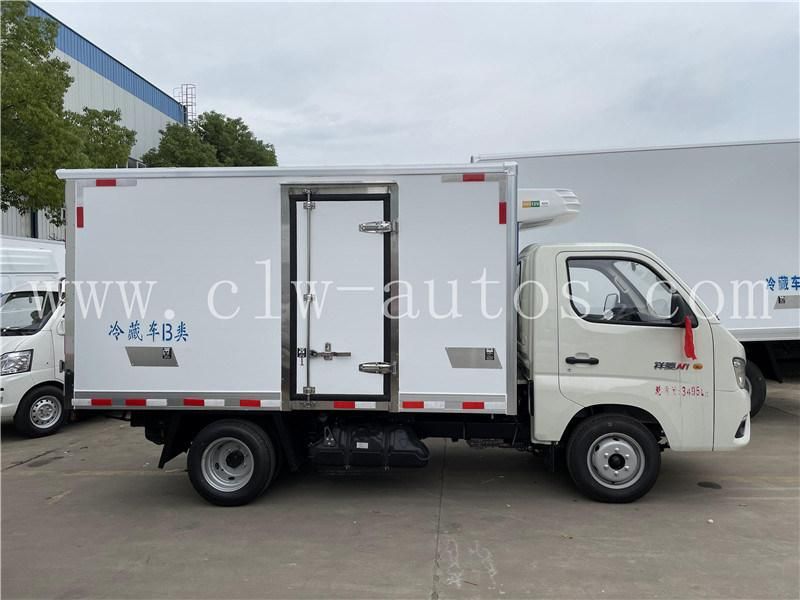

Reference Photos
Foton Xiangling M1 Gasoline Refrigerated Truck Fresh Meat Vegetables Refrigerated Truck 4X2 Refrigerator Box Van TruckFoton Xiangling M1 Gasoline Refrigerated Truck Fresh Meat Vegetables Refrigerated Truck 4X2 Refrigerator Box Van TruckFoton Xiangling M1 Gasoline Refrigerated Truck Fresh Meat Vegetables Refrigerated Truck 4X2 Refrigerator Box Van TruckFoton Xiangling M1 Gasoline Refrigerated Truck Fresh Meat Vegetables Refrigerated Truck 4X2 Refrigerator Box Van Truck

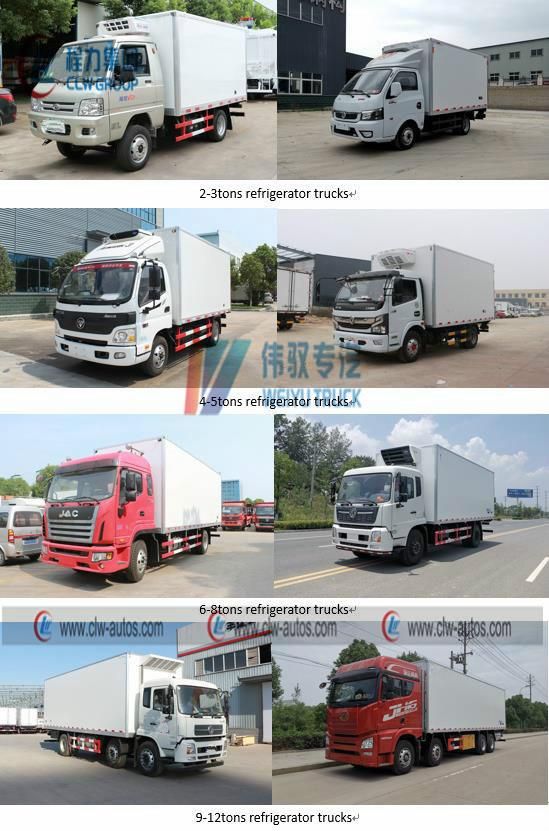

Different Capacities of Refrigerator Trucks
Foton Xiangling M1 Gasoline Refrigerated Truck Fresh Meat Vegetables Refrigerated Truck 4X2 Refrigerator Box Van Truck

Side Rails for Using Bands Fix Fish Basket
Foton Xiangling M1 Gasoline Refrigerated Truck Fresh Meat Vegetables Refrigerated Truck 4X2 Refrigerator Box Van Truck
Factory overview
Foton Xiangling M1 Gasoline Refrigerated Truck Fresh Meat Vegetables Refrigerated Truck 4X2 Refrigerator Box Van TruckFoton Xiangling M1 Gasoline Refrigerated Truck Fresh Meat Vegetables Refrigerated Truck 4X2 Refrigerator Box Van Truck
The CLW group, which was appointed by the Development and Reform Committee of China. ChengLi is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.

Products Catalog:

1. LPG Tank Truck Trailer/ Fuel Tanker Truck/ LPG station
2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck mounted crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck /Refrigerated truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truc
12. Tractor truck
13. High Pressure Cleaning Truck
14. Sweeper Truck
15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )

Certificates
Foton Xiangling M1 Gasoline Refrigerated Truck Fresh Meat Vegetables Refrigerated Truck 4X2 Refrigerator Box Van Truck
Foton Xiangling M1 Gasoline Refrigerated Truck Fresh Meat Vegetables Refrigerated Truck 4X2 Refrigerator Box Van TruckOverseas Exhibitions
Foton Xiangling M1 Gasoline Refrigerated Truck Fresh Meat Vegetables Refrigerated Truck 4X2 Refrigerator Box Van Truck
Warranty

1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.

Spare Parts

1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.

After Sales Service

Email & Phone call tracking for each truck on timely manners.

Shipment

Land transportation or Ship by bulk cargo ship, container, roro ship
