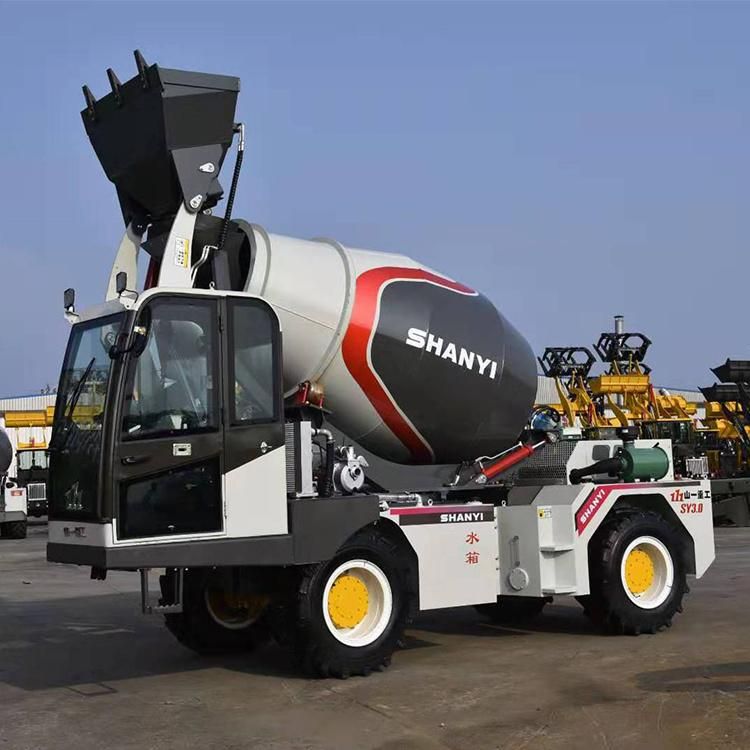

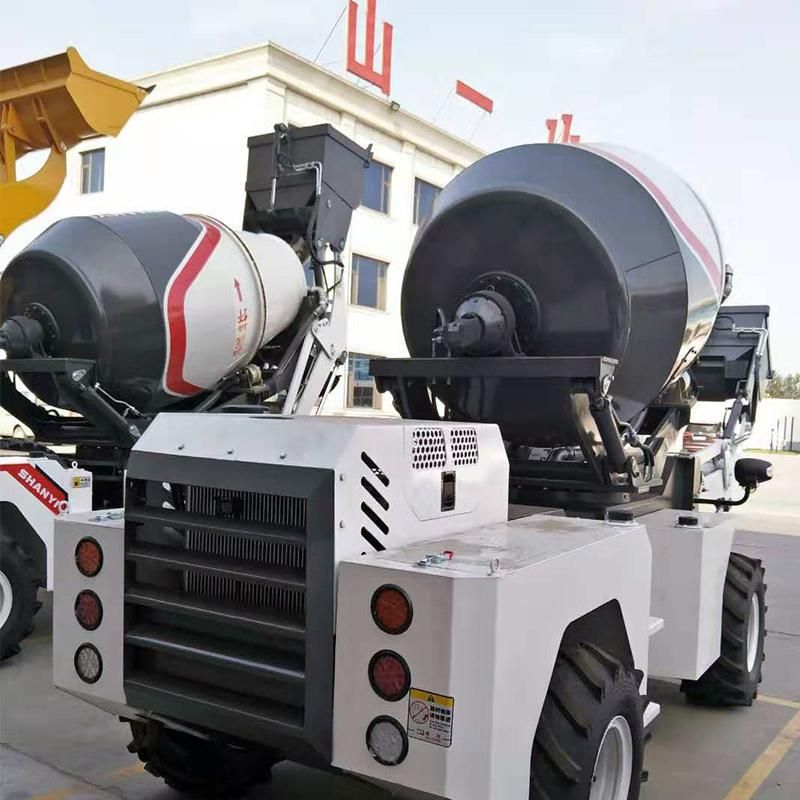

Self Loading Concrete Mixer with Pump/Concrete Mixer Truck for Sale in Malaysia
Shandong Lehman Construction Machinery Co., Ltd.- Certification：ISO9000, CE
- Transmission Type：Hydraulic
- Emission Standard：State 2
- Fuel：Diesel
- Drive Mode：4*4
- Maximum Horsepower：116
Base Info
- Model NO.：LM4200
- Condition：New
- Transport Package：No Packing
- Specification：7000*2500*3250mm
- Trademark：Shanyi
- Origin：Shandong, China
- HS Code：8474310000
- Production Capacity：3000sets,Year
Description
Type: YCD4J22-105
Total displacement, cylinders: 3800cc, four-in-line
Injection: direct injection and mechanical control.
Cooling system: water-cooling, dry air filter
Maximum power: 78Kw
Maximum torque: 280Nm, 2400r/min
Steering
Assisted by double displacement loading sensor power on steering wheel to turn, articulated steering.
4*4 Four-Wheel Drive
Hydraulic torque converter gearbox, open hydraulic gear oil pump, and reverse gear control to control working speed and travelling speed.
Water system
Two water supply system, from external water feeding, can be directly into the drum or water tank.
The total capacity of two connected water tanks positioned opposite is 532L
Visual flowmeter, the water intake of the roller by hand-control.
Equipment Hydraulic System
Maximum flow rate: 40/63L/min.
Maximum pressure: 20Mpa
Four-element distributor servo-controlled with multi-function joystick.
Aluminum heat exchanger for hydraulic oil cooling.
When the temperature reaches 55°, it will automatically opens the hydraulic cooling device, automatic opening of hydraulic cooling device, pressurised closed-circuit intake with oil filter replaceable from the outside

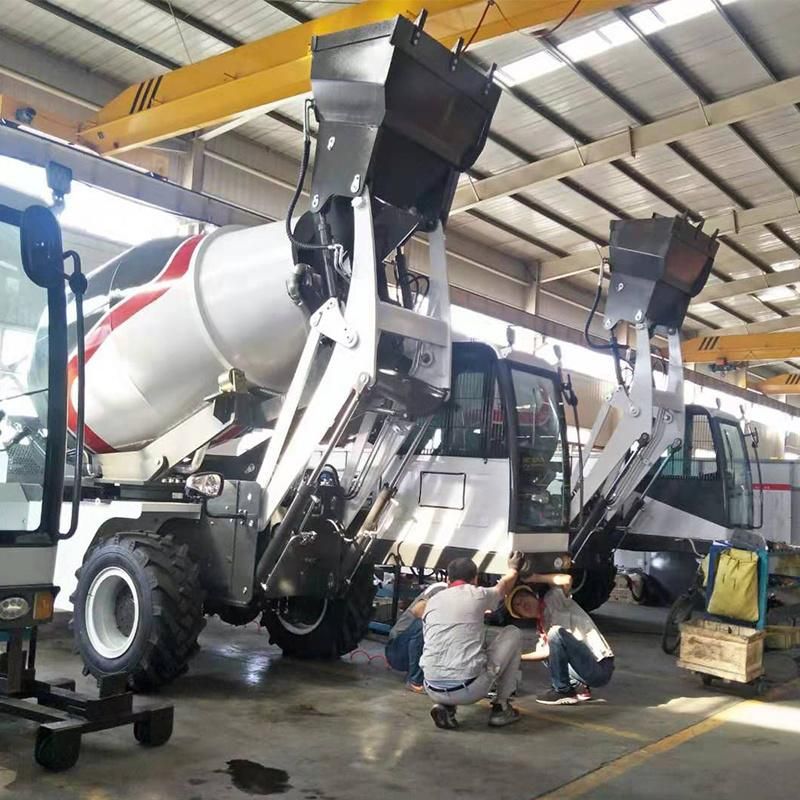

Product Show
