• Model NO.：CIMC5310GXW
• Vacuum Pump Type：Re-200vt Tss6
• Maximum Vacuum(Kpa)：78.4-58.0
• Air Compressed Engine：Vs230, Bdw-972
• (Kpa) Maximum Pressure：196
• Transport Package：Nude
• Specification：EMARK, GCC, VCA
• Trademark：CIMC
• Origin：China
• HS Code：8704230000
• Production Capacity：200 Units Per Year

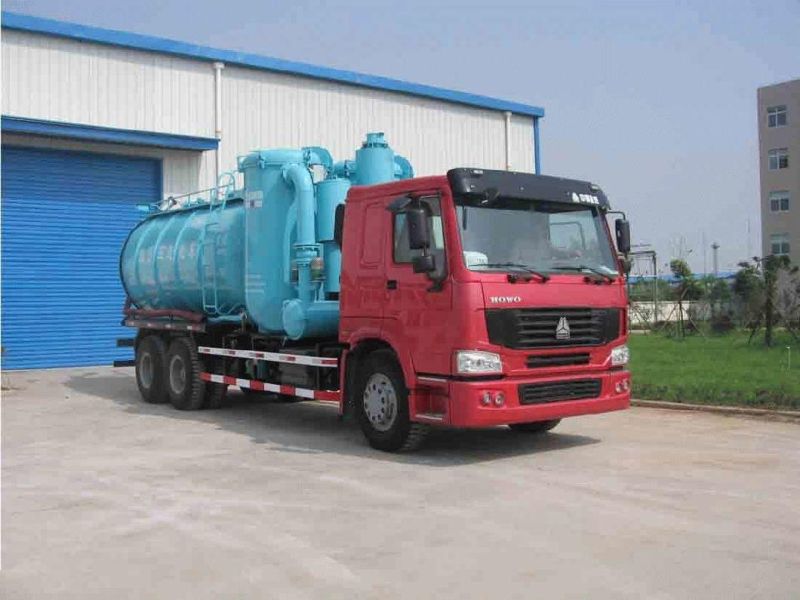

NO.Project NameDetailed description1Whole tank vehicleVehicle NameMulti-function joint suction vehiclesModelCIMC5310GXWChassisHeavy Duty TruckWheelbase1800+4200+1350The total mass kg31000Load weight kg8500Dimensions (mm)10760×2496×39602EngineEmission StandardsEuro IIIPower kw221Fuel TypeDiesel fuel3Material tankTank volume m318Tank size (diameter × length) mm2100×5410Tank material16MnHigh strength steelTank wall thickness mm6Feed valve6InchLift the tank≥50Degree4Vacuum systemVacuum degree bar-0.5Maximum air flow m3 / h5709Mm maximum particle material15Pumping distance m≥505Discharge SystemWorking pressure bar2The maximum displacement m3 / h500Discharge capacity t / h30-70Discharge height m15-30Discharge valve4InchThe remaining rate ‰≤26Dredge systemPressure bar160Flow l / min122Hose length m607Boom System Angle of rotation300FunctionCan be pulled back and forth, up and down, left and right rotationDiameter6 inches
