• Model NO.：CLW5122TSLT4
• Use：Stainless Steel
• Cleaning Process：Cold Water Cleaning
• Condition：New
• Truck Chassis Brand：Dongfeng
• Dust Bin Capacity：4cbm, 6cbm, 7m3, 8m3, 12m3
• Water Tank：1m3, 1.5m3, 2m3, 4cbm
• Material：Stainless Steel
• Auxiliary Engine：Jmc 88HP
• Monitor Inside Cabin：Yes
• Fan：Maintenance Free
• Rear Warning Light：Yes
• Vacuum Suction：Behind The Tire
• Brushes：4 Units
• Operating Manual：Yes
• Operating Video：Yes
• Usage：City Sanitation
• Logo：as Per Customer′s Request
• Warranty：1 Year
• Transport Package：Roll-Roll, Bulk Shipment
• Specification：9cbm
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：87059099
• Production Capacity：300 Units Per Month

Axle

Number of axles: 2

Axle-load: 4990/7500

Wheel base(mm): 3950

Traction system

4*2

Tank fact cubage(cbm)

6 m3 dustbin,2.5 m3 clean water tank

GVW(kg)

12490

Curb weight(kg)

8495

Overall dimensions(mm)

7160×2480×3000

F / R track base(mm)

1810/1800

F/R overhang(mm)

1250/1960

Approach / departure angle(°)

30/16

Max speed(Km/h)

90

equipment

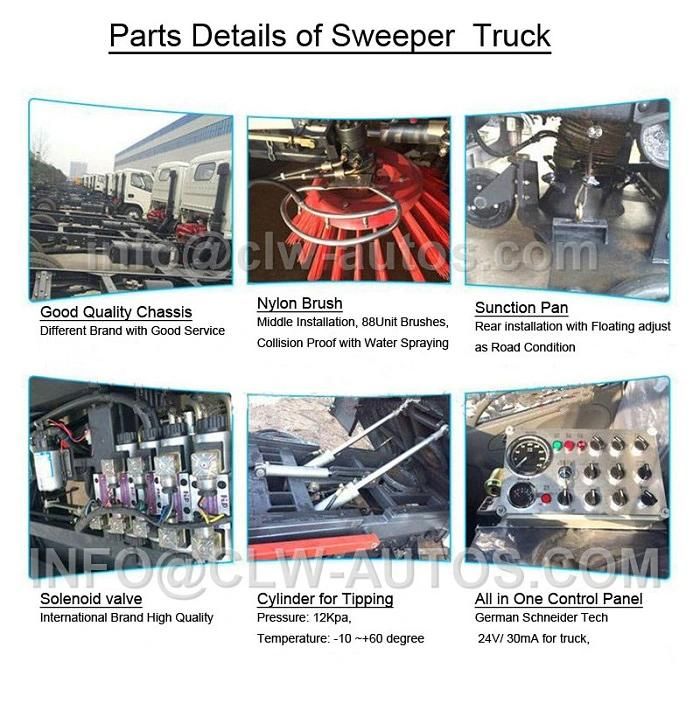

1> Equipped with 4 sweeping brush, JMC 88 hp deputy engine; Italian motor; French control switch; Joint venture solenoid valve group; Maintenance-free self-separate clutch; Maintenance-free fan; Stainless steel water tank and dustbin; Rear LED arrow lights, manual pump for emergency system.
2> Maximum sweeping width 3.2 m, inhaled sizeφ120 mm

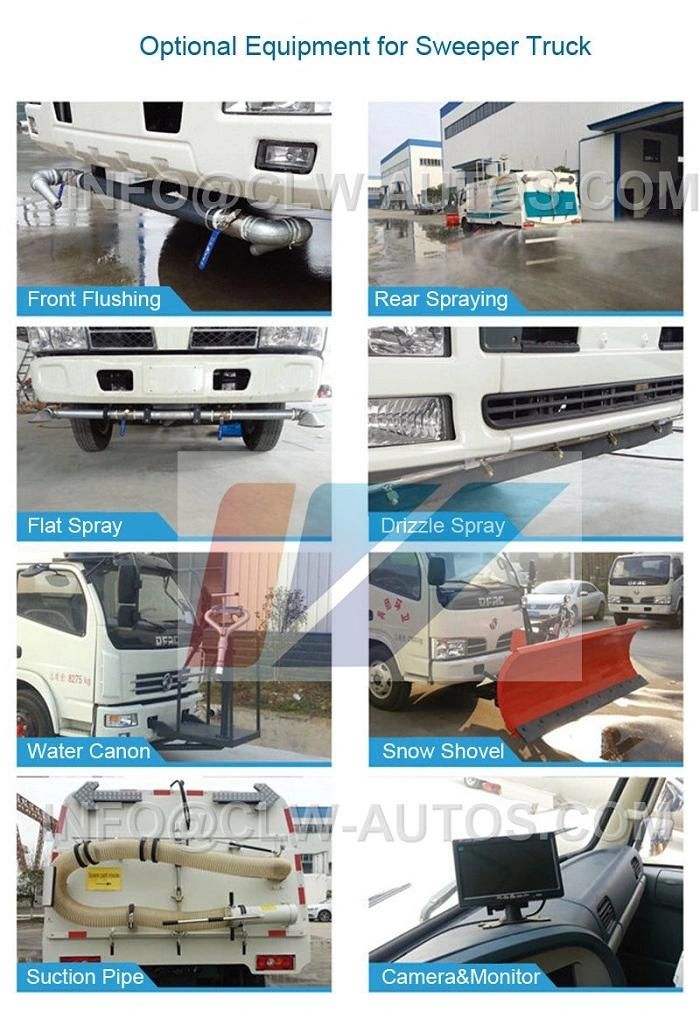

3> Optional: monitoring, sprinkler function, self-cleaning function for dustbin.

Product cycle

15-25 days

Warranty

12 months, from the date of supply
