Specialized Vehicle

Foton 3ton 4ton 5ton Flatbed Wrecker Truck Towing Truck for Road Rescue

Hubei Weiyu Special Vehicles Co., Ltd.
  • Certification:ISO9000, CCC, TS16949, EPA, EEC, CE
  • Emission Standard:Euro 4
  • Transmission Type:Manual
  • Towing Tonnage:4ton
  • Fuel:Diesel
  • Bearing Capacity:Medium

Base Info

  • Brand:Dongfeng
  • Condition:New
  • Wheel Base:3308 mm
  • Gearbox:5 Forward & 1 Reverse
  • Tire:7.00r16
  • Max. Loading Weight:4000kg
  • Flatbed Dimension:4200*2320mm
  • Winch Rating Pulling Capacity:4000 Kg
  • Hydraulic Tailgate:1200 mm
  • Wire Rope:25 Meters
  • Warranty:One Year
  • Logo:as Per Customer′s Request
  • Transport Package:Naked, Waxed, Bulk Ship, RO-RO
  • Specification:6000x2500x3300 mm
  • Trademark:CLW
  • Origin:Suizhou, China
  • HS Code:8705909090
  • Production Capacity:500 Unit,Month

Description

General Technical ParametersOverall Dimension5995x2300x2250 (mm)Gross Vehicle Weight4495kgCurb Weight3800kgChassis SpecificationChassis ParametersChassis BrandFOTONCabinSingle, Left Hand DrivingEngineModel4 CylindersPower88 KW/120HPEmission StandardEURO IIDisplacement2771MLFuel TypeDieselGearbox5 Forward & 1 Reverse GearFront and Rear Axle Load3T/6TWheel Base3308(mm)Overhang( Front/Rear)1015/2450(mm)Angle(Approach/departure)24/9(°)Brake Systemoil brakeSteering GearPower AssistantTire7.00R16, 6 Pieces with 1 Spare TireMaximum Speed90 (km/h)SuperstructureFlatbedDimensions4200x2320 (mm)Max. Loading Weight4000(kg)Operating Stroke2700 (mm)Min. Angle of Slope8(°)Platform Height from the Ground1070(mm)WinchQuantity1pcWinch Rating Pulling Capacity4000 (kg)Length of Steel Cable25 (m)Hoisting OrganRating Under-Pulling Capacity6000 (kg)Rating Under-Hoisting Capacity2000 (kg)Fully Extended Max Under-Hoisting Capacity1600 (kg)Max Under-Hoist Useful Length1640 (mm)Remarks1. Equiped with One Set of Auxiliary Wheels
2. Bandages 4pcs
3. Yellow Warning Lamp 1pc
4. Double Side Hydraulic Operation
5. Can Tow 2 Cars

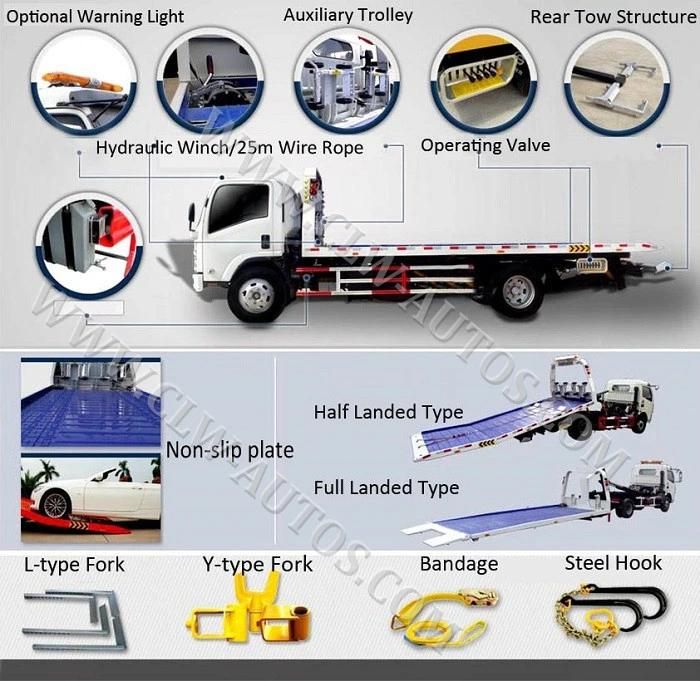

Truck Diagram

Foton 3ton 4ton 5ton Flatbed Wrecker Truck Towing Truck for Road Rescue

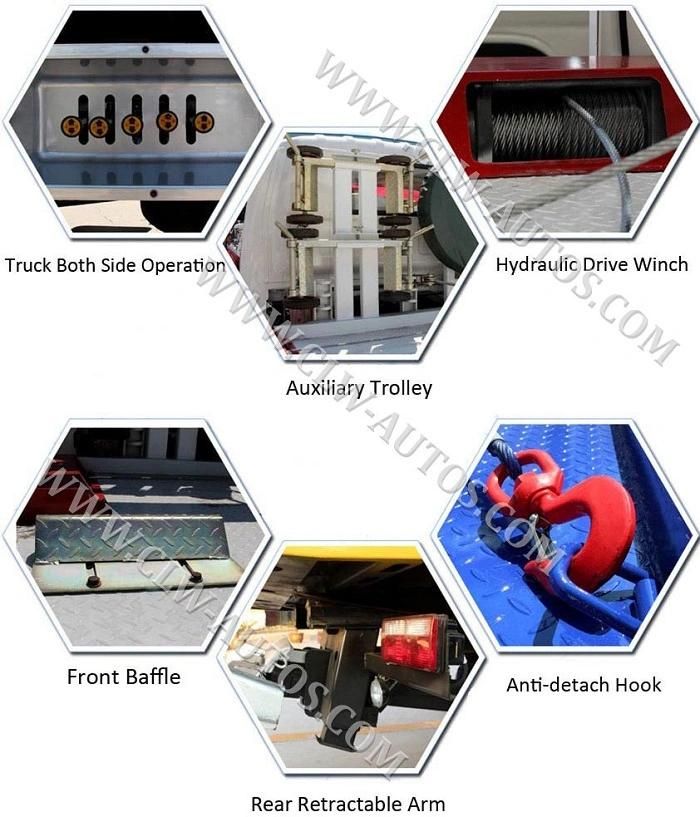

 Truck Details

Foton 3ton 4ton 5ton Flatbed Wrecker Truck Towing Truck for Road Rescue

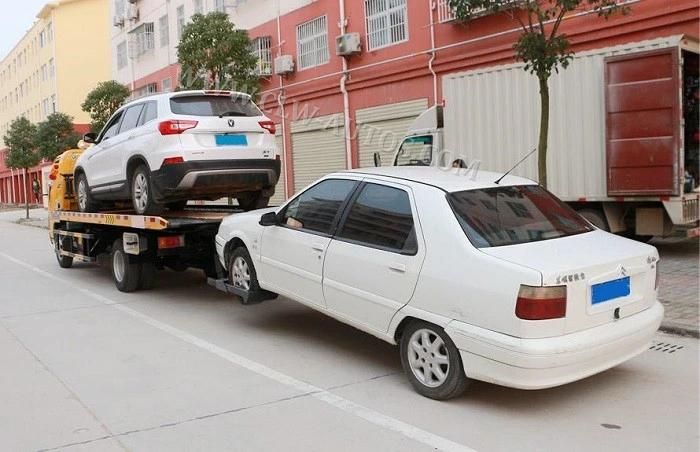

Working Show
