• Model NO.：CLW5078xp
• Axle：Single
• Condition：New
• Product Name：Ambulance Car
• Type：High Roof
• Usage：Patient Transit
• User Manual：Yes
• Operating Video：Yes
• Logo：as Customer′s Request
• Warranty：12 Months
• Transport Package：Bulk Ship, RO-RO, Container
• Specification：4944*1972*2180mm
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

 Dimensions

1

Wheelbase (mm):                                                 2835

2

Overall Size(mm):                                         4944*1972*2180,2370

3

GVW(kg):                                                              3510

4

Chassis Model:                                          JX6490T-L5

Engine

5

Fuel Type:                                                     Diesel

6

Engine Model:                                            JX493ZLQ5

7

Displacement (ml)                                    2.771

8

Emission Standard:                                       Euro 5

9

Engine Power(kw):                                        85(Kw)

Gearbox

10

Manual Gearbox:                                          5 speed forward, 1 reverse

11

Max. Speed(km/h):                                       120

12

Brake System:                                            Front Disc, rear drum

Emergency Alarm System

21

Front: LED light bar on cabin top

22

Rear:LED rotate lamps on left and side top

23

Control button of sirens and warning light in the cabin

24

Alarm built-in speaker

25

New Focus 1000W Pure sinusoidal Inverter Power supply Assembly

Medical Compartment Configeration

26

The cabin and medical compartments are separated, but with slide window

27

The middle window of medical compartment is with slide window

28

Oxygen fixing box with pressure reduction valve installed in front left of cabin compartment

29

10 liters oxygen tank is put in oxygen fixing box

30

Medical cupboard and equipment cabinet are installed at side of oxygen fixing box at front left of medical compartment

31

220V socket(Electrical socket is installed at the suitable position)

32

12V socket(Electrical socket is installed at the suitable position)

33

The humidification bottle,Ventilator oxygen Jack are installed in medical compartment

34

The left side of the medical compartment is fitted with a long cabinet seat or a foreskin front independent doctor seat with two armbands and seat belts

35

The right side of the capsule is fitted with foreskin, forward independent doctor's seat, hand guard and two seatbelts.

36

Installation of a hands-free intercom system for the middle partition of the medical compartment

37

The special floor for medical treatment is acid-resistant, alkali-resistant, fire-proof, anti-skid, anti-static floor.

38

The medical compartment is fitted with automatic carriage stretcher which with fastener, baffle, stainless steel bottom, seat belt

39

The medical compartment is fitted with fixing device for automatic carriage stretcher

40

The medical compartment is fitted with fire extinguisher and carriage

41

Top of medical compartment is fitted with infusion bottle holder

42

Top of medical compartment is fitted with antibacterial safety handrail

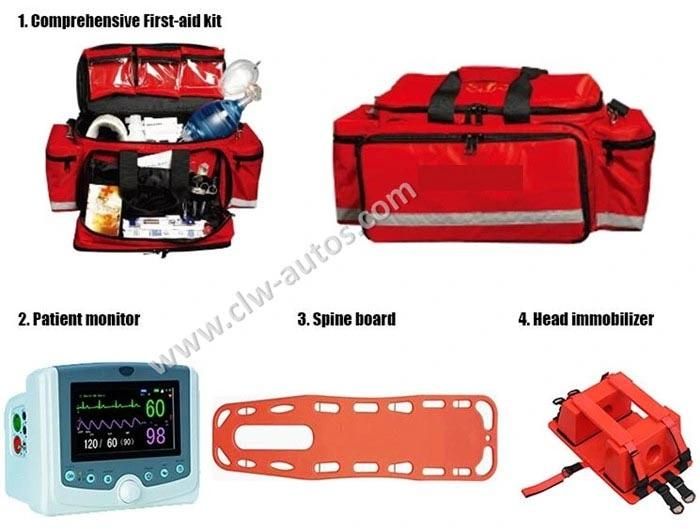

Medical Devices (Standard Configuration)

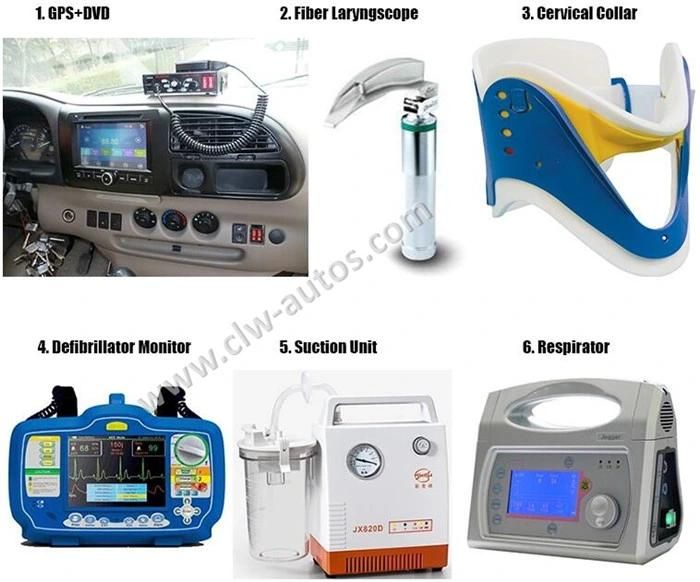

Optional devices and accessories
