Sinotruk HOWO 12ton Roll off Swing Arm Garbage Truck with 10cbm/12cbm Hydraulic Roll on Skid Loader Waste Management Container

Hubei Weiyu Special Vehicles Co., Ltd.
  • Type：Roll Off
  • Certification：ISO9000, CCC, CE
  • Volume：6001-10000L
  • Emission Standard：Euro 3
  • Transmission Type：Manual
  • Payload：7ton, 8ton, 9ton, 10ton

Base Info

  • Fuel：Diesel
  • Drive Wheel：4×2
  • Brand：Sinotruk
  • Models：Medium
  • Usage：Swing Arm Type
  • Condition：New
  • Chassis Brand：Sinotruck HOWO
  • Engine：290HP, 336HP, 371HP
  • Gearbox：10 Forward & 2 Reverse
  • Loading Capacity：12ton ~ 15ton
  • Hopper Size：12cbm, Ground Type
  • Hooper Shape：Skid Loader
  • Hopper Material：Carbon Steel Q235B
  • Hopper Thickness：5mm ~6mm
  • Dump Type：Hydraulic Cylinder Lifting and Self-Loading
  • Protective Material：Q235A Carbon Steel
  • Hopper Quantity：as Per Customer′s Request
  • Controlling Way：Three-Way Hydraulic Control Valve
  • Color：as Per Customer′s Request
  • Warranty：1 Year
  • Tire：12.00r20
  • Transport Package：Naked Pack with Wax
  • Specification：7350*2500*3350 (mm)
  • Trademark：CLW
  • Origin：Suizhou, China
  • HS Code：8705909090
  • Production Capacity：500 Unit,Month

Description

General Technical ParametersOverall Dimension7350*2500*3350 (mm)Gross Vehicle Weight16000(Kg)Curb Weight6660(Kg)Chassis SpecificationChassis BrandSinotruk HowoDrive model4*2CabinSingle Row, LHD, with air condition.Number of Passengers3EngineModel336HP, 4-stroke direct injection , 6-cylinder in-line, turbocharged intercooled, with ABS.Power336HPEmission standardEURO 3Displacement9720(ml)Fuel typeDieselGearbox6 Forwards & 2 Reverse, manual operation, with power steering.Brake SystemAir breakWheel Base4350+1300mmFront/Rear Axle Loading3600/8000(Kg)Approach/Departure Angle30/21(°)OverhangMechanical Suspension, 9/11+8Tire12.00R20, 6pc with 1 spare tireMax Driving Speed90(km/h)Upperstructure SpecificationGarbage HopperDimension3700×1850×1400mmStandard ConfigurationWith one garbage bin, with hydraulic rear outriggerVolumeGround type, 8CBMLoading Capacity6TonThickness5mm, Carbon Steel Q235BDump typeHydraulic cylinder lifting and self-loadingDump angle≥45°Hydraulic system pressure≤16MpaProtective MaterialQ235A Carbon SteelControlling WayThree-way hydraulic control valveOther Configuration
  1. Electronically controlled valve, trash bin type, trash bin quantity, etc.

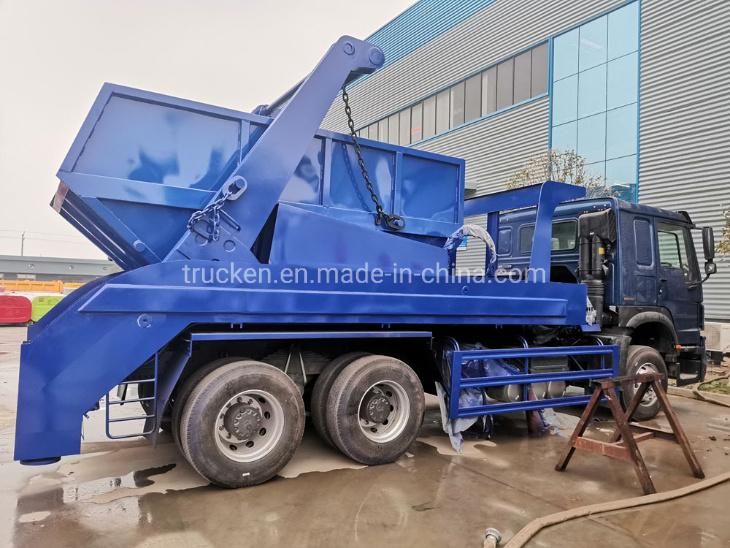

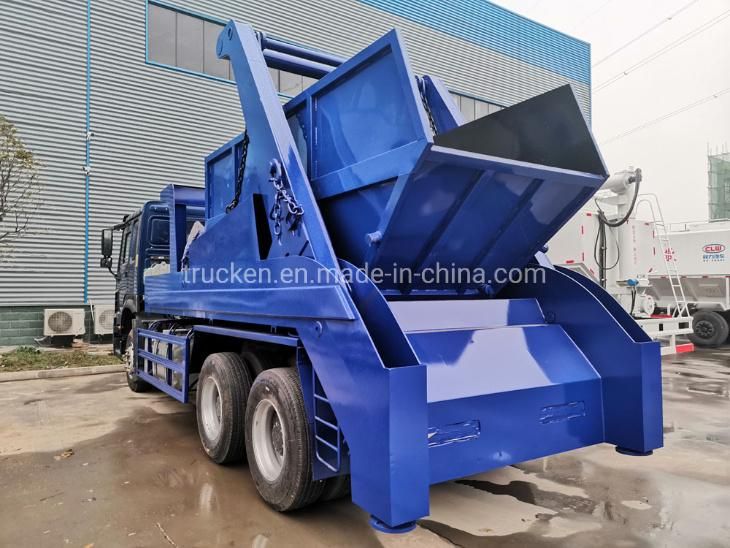

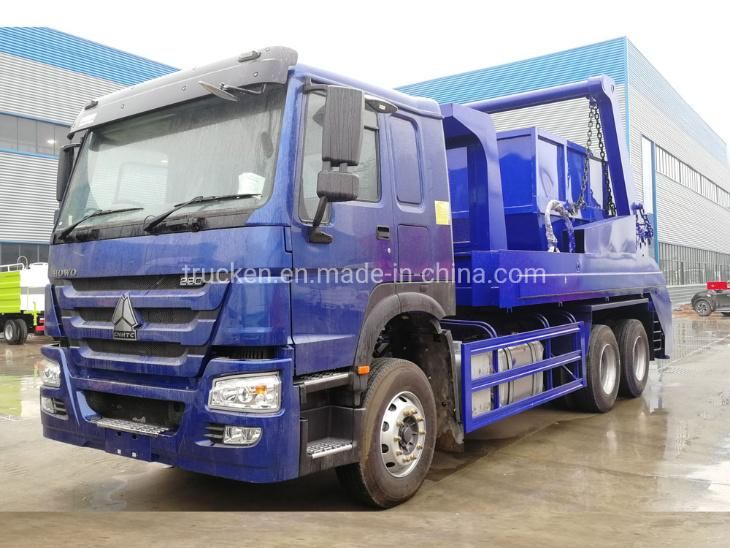

    Reference Photos
    Sinotruk HOWO 12ton Roll off Swing Arm Garbage Truck with 10cbm/12cbm Hydraulic Roll on Skid Loader Waste Management ContainerSinotruk HOWO 12ton Roll off Swing Arm Garbage Truck with 10cbm/12cbm Hydraulic Roll on Skid Loader Waste Management ContainerSinotruk HOWO 12ton Roll off Swing Arm Garbage Truck with 10cbm/12cbm Hydraulic Roll on Skid Loader Waste Management ContainerSinotruk HOWO 12ton Roll off Swing Arm Garbage Truck with 10cbm/12cbm Hydraulic Roll on Skid Loader Waste Management Container

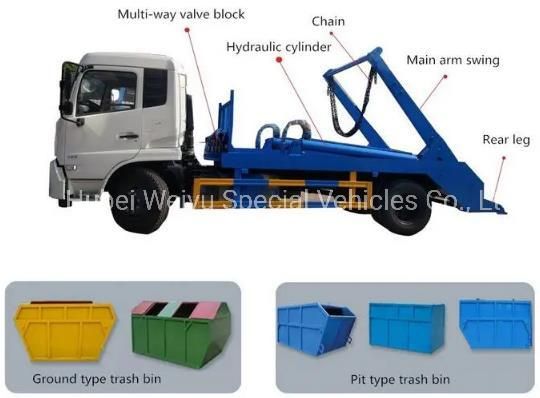

    Main Structure and details
    Sinotruk HOWO 12ton Roll off Swing Arm Garbage Truck with 10cbm/12cbm Hydraulic Roll on Skid Loader Waste Management Container

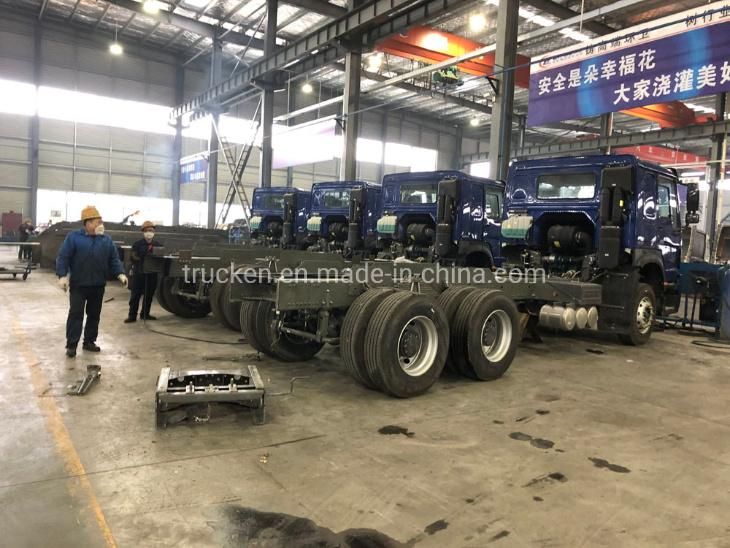

    Company Introduction
    Sinotruk HOWO 12ton Roll off Swing Arm Garbage Truck with 10cbm/12cbm Hydraulic Roll on Skid Loader Waste Management Container

    Certificates
    Sinotruk HOWO 12ton Roll off Swing Arm Garbage Truck with 10cbm/12cbm Hydraulic Roll on Skid Loader Waste Management Container
    Sinotruk HOWO 12ton Roll off Swing Arm Garbage Truck with 10cbm/12cbm Hydraulic Roll on Skid Loader Waste Management Container

    Our Overseas Exhibition
    Sinotruk HOWO 12ton Roll off Swing Arm Garbage Truck with 10cbm/12cbm Hydraulic Roll on Skid Loader Waste Management Container
