Dongfeng HOWO Rear Side 3ton 5ton 8ton Flat Bed Wrecker Towing Truck

Hubei Fuya Vehicle Co., Ltd.
  • After-sales Service:24hours on-Line Service
  • Warranty:12months
  • Certification:ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE
  • Emission Standard:Euro 3
  • Transmission Type:Manual
  • Towing Tonnage:8T

Base Info

  • Model NO.:CLW507FFT
  • Fuel:Diesel
  • Bearing Capacity:Light
  • Brand:Dongfeng
  • Condition:New
  • Truck Engine:95HP 102HP 120HP 140HP 160HP
  • Drive Model:4*2
  • Wheels:7 Pieces with One Spare Type
  • Hydraulic Control:Available
  • Transport Package:Nude Package
  • Specification:7000*2100*2300
  • Trademark:CLW-FUYA
  • Origin:China
  • HS Code:8705909990
  • Production Capacity:10units,Month

Description

Main structure and working principle of flat bed one tow two wreckerI. Power take off device

The power take-off device of flat bed one towing two wrekcer truck is composed of oil pump, power take-off device and flexible shaft cable. It is used to output automobile power to the oil pump and become hydraulic energy. Through the action of the handle installed in the truck cabin, the power take-off gear is connected or separated with the power take-off output gear in the car gearbox through the flexible shaft cable, so as to make the oil pump work or stop.

Note: when the truck is running, the power take-off tooth in the power take-off should be disconnected, and the oil pump does not work.II.Hydraulic transmission mechanism

After the power take-off of the flat bed truck is engaged, the oil pump works and the high-pressure oil enters the multi-way directional valve. Various actions can be carried out by controlling different handles on the directional valve.III. Traction system

High pressure oil drives hydraulic motor to drive winch. When the hydraulic motor works, the handle of the control valve is in the "put" position, and the steel wire rope can be automatically put out. Pull the handle of the control valve to the "put" position, and the vehicle can be towed or the steel wire rope can be put back.

Note: when the vehicle is running normally, the wire rope hook should be tightly hung on the ring hole at the end of the flat plate. Flat one tow two wrecker using tiresIV. Lifting device

The bracket is divided into front bracket and rear bracket. The front bracket is sheathed at both ends of the swing arm and fixed with a spring pin. The rear bracket is inserted into the square hole of the front bracket and fixed with a pin. At the same time, the tire is locked with a fastening pull lock.
texture of material

The supporting arm and lifting arm of the wrecker are all made of steel plates, which are formed by bending. CO2 automatic protection welding, only two welding seams are allowed, with less welding seam, small deformation, high precision and strength, and ultrasonic welding seam detection. Carbon dioxide shielded welding and argon arc welding are used in the welding of the wrecker. The length of the weld is more than 300 mm. Automatic welding is adopted to make the weld surface smooth and beautiful.

Capacity Division

Light, medium and super heavy. The objects of light wrecker are light trucks, minibuses and cars. The objects of medium and heavy wrecker are medium and heavy trucks, large and medium buses. The objects of super heavy wrecker are heavy trucks and overweight semitrailer series.
Dongfeng HOWO Rear Side 3ton 5ton 8ton Flat Bed Wrecker Towing TruckDongfeng HOWO Rear Side 3ton 5ton 8ton Flat Bed Wrecker Towing Truck

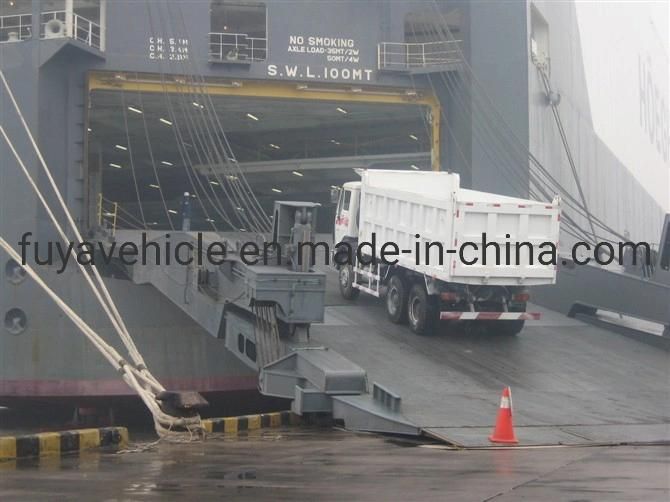

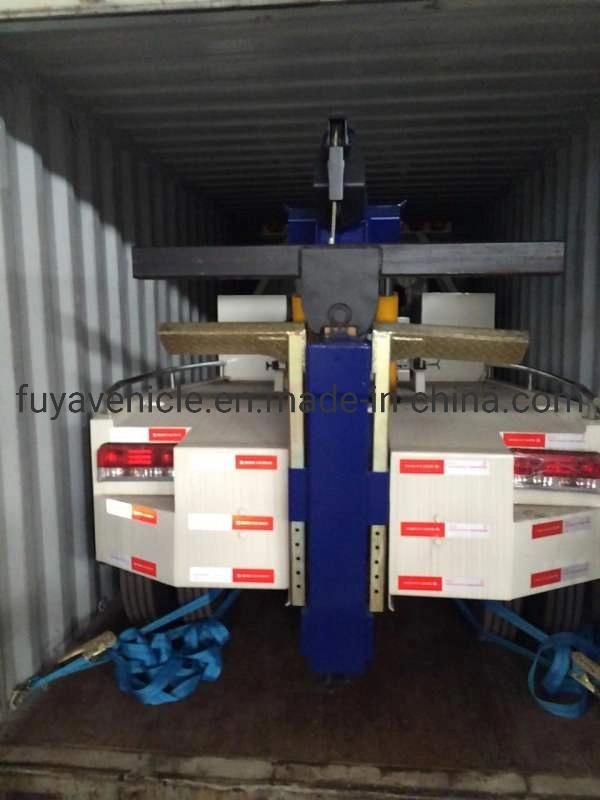

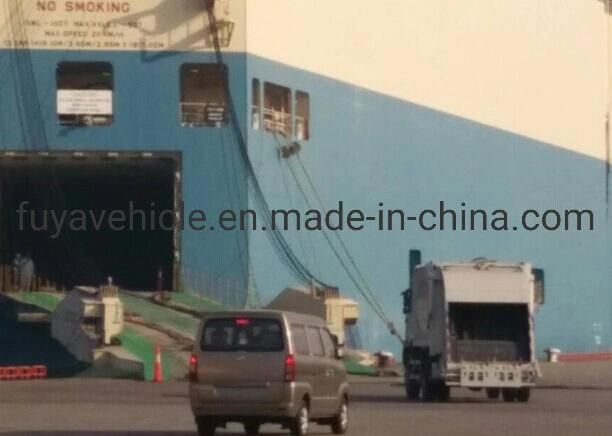

Shipment & DeliveryDongfeng HOWO Rear Side 3ton 5ton 8ton Flat Bed Wrecker Towing TruckDongfeng HOWO Rear Side 3ton 5ton 8ton Flat Bed Wrecker Towing TruckDongfeng HOWO Rear Side 3ton 5ton 8ton Flat Bed Wrecker Towing Truck

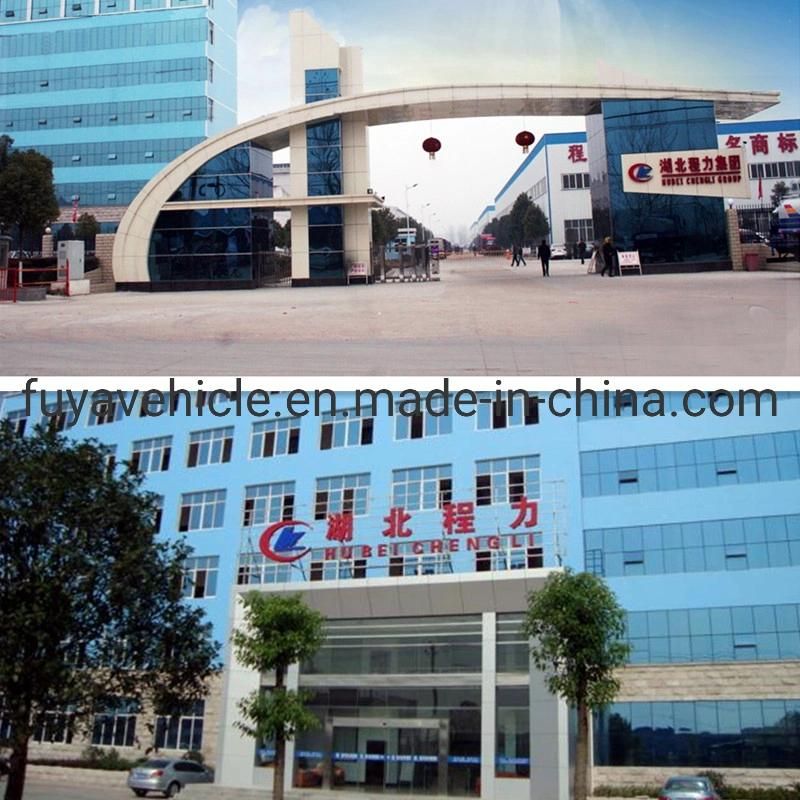

Factory InformationCLW Group-Fuya vehicle Co., Ltd. is mainly engaged in the production and manufacture of all kinds of special purpose vehicles, as well as the sales of complete vehicles and accessories. The company has its own export rights, and its products occupy the foreign market. The leading varieties are 5-ton sprinkler, 10 ton sprinkler, 5-ton tank truck, 5-ton refueling truck, garbage truck, manure suction truck, sewage suction truck, dump truck, van type truck, semi-trailer, obstacle removal truck, truck mounted crane, aerial work truck, coach truck, bulk cement truck, chemical truck, cement mixer truck Tractor and other eight series of more than 100 varieties.Dongfeng HOWO Rear Side 3ton 5ton 8ton Flat Bed Wrecker Towing Truck

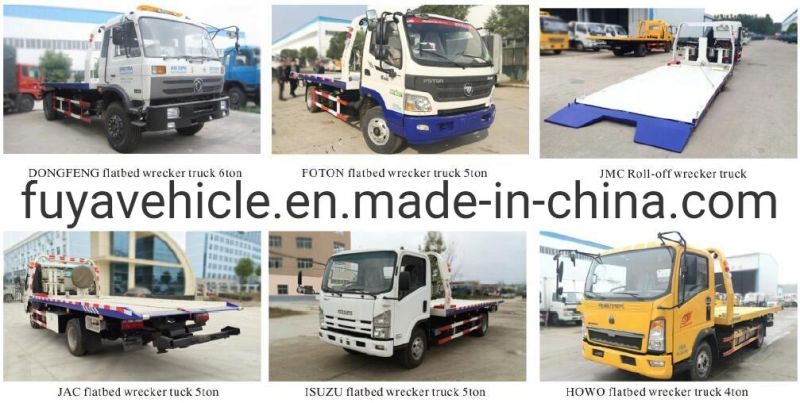

Related Products for reference
