• Model NO.：CLW5086GGC
• LED Tube Core Type：SMD
• Self-powered：Self-powered
• LED Screen Type：P3,P4,P5,P6
• Power Supply Mode：Own Generator-powered
• Chassis Brand：Dongfeng, Isuzu, HOWO, Foton, etc.
• Drive Model：4X2, 6 Wheels
• Wheelbase：2800mm,3300mm,3360mm,3800mm,4500mm,4700mm,etc.
• LED Board Type：One-Side Screen,Two-Side Screen,Three-Side Screen
• Screen Size：4m2-12m2, as Per Chassis Size
• Pixel Pitch：4mm, 5mm, 6mm; P4 P5 P6
• Picture Tube Chip Color：Full Color and Monochrome
• Control Mode：VGA Synchronous
• Color：White; Blue; Green; Yellow; Customized
• Warranty：1 Year
• Transport Package：with Foam Cover on LED Screen
• Specification：5990*2080*2990(mm)
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

General Technical ParametersOverall Dimension5990×2080×2990(mm)Gross Vehicle Weight8000(Kg)Curb Weight2560(Kg)Chassis SpecificationChassis parametersChassis BrandFoton ForlandCabinSingle, Left Hand Driving, Radio + MP3EngineModelFoton Cummins ISF3.8s4R154, 4 CylindersPower115KW/154HPEmission standardEURO IVDisplacement3.76LFuel typeDieselGearboxZF 6S500, 6 Forward & 1 Reverse GearFront and Rear Axle load3T/6TWheel base3360(mm)Overhang( Front/Rear)1095/1420(mm)Angle(Approach/departure)21/17 (°)Brake SystemAir brakeSteering GearPower AssistantTire215/75 R17.5, 6 Pieces with 1 Spare TireMaximum speed95(km/h)SuperstructureLED Screen
 PixelOutdoor full colour display screen
P6Single module size192*192(mm)Quantity1pc, left or right side; 1pc rear LED screen.Dimension(LxW)3840*1728(mm)DescriptionHydraulic lifting, Waterproof, shake-proof, high brightness, long lifeScreen Lift Height1.3-1.5(m)Roller ScreenDimension(LxW)3840*1728(mm)No. of scrolling posters5-7pcs


General configuration



 1. OUMA brand silent diesel generator, 8KW2. One set industrial computer with control system3. Sound system: Loudspeaker 2pcs, amplifier 1pc4. Internal and external electrical distribution box.5. Circulating ventilation and cooling systems.6. 5CM composite steel frame body7. Aluminum patterned floorRemarksHydraulic legs 4pcs included; stage is for optional.

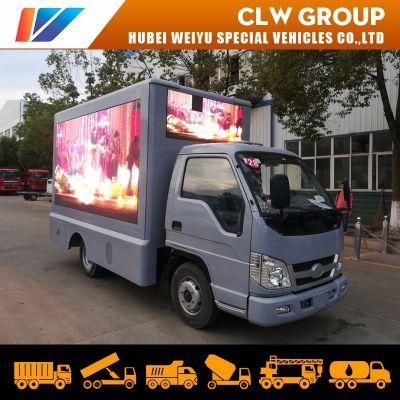

Reference Photos

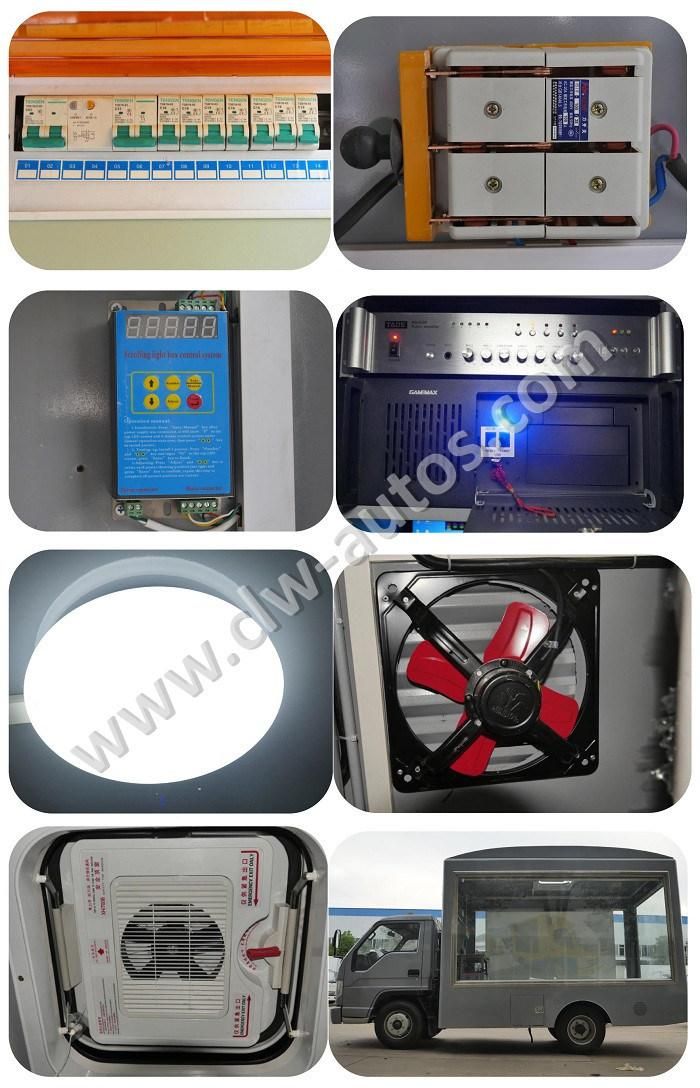

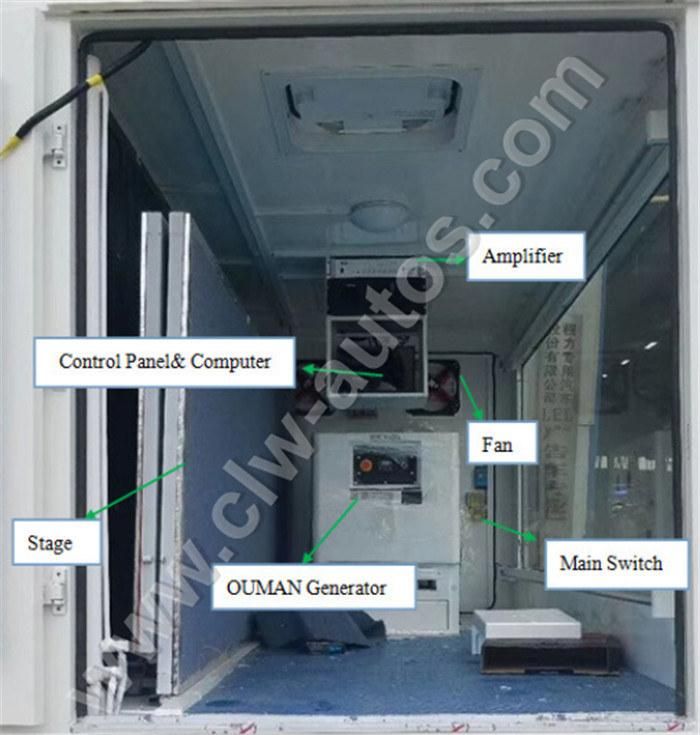

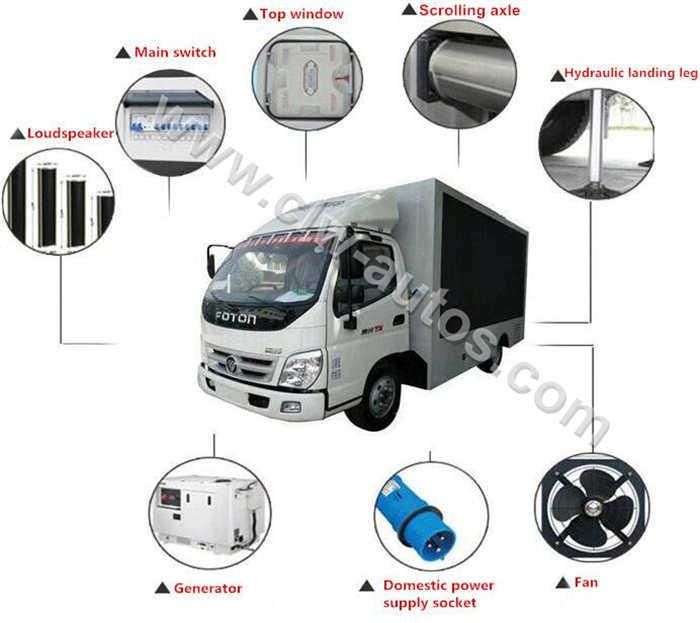

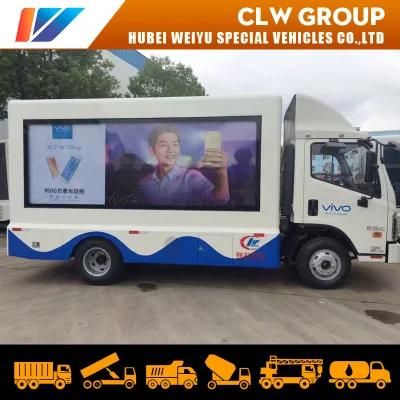

Details of LED truck


Details of Scrolling Advertisement truck

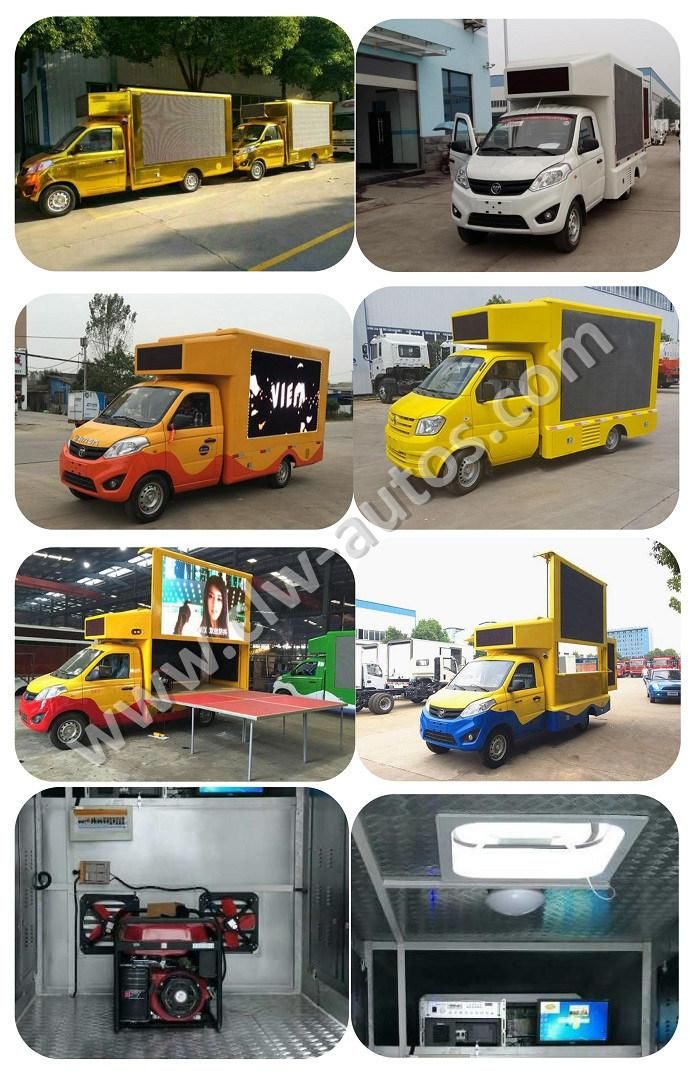

Various kinds of Advertising Trucks
