• Model NO.：GVG11
• Optional：Lithium Battery
• Transport Package：Nude
• Specification：4390L*1500W*2120Hmm
• Trademark：GREENMAN
• Origin：China
• HS Code：87031019
• Production Capacity：2000units Per Year

Basic Info.

Model NO. GVG11 Optional Lithium Battery Transport Package Nude Specification 4390L*1500W*2120Hmm Trademark GREENMAN Origin China HS Code 87031019 Production Capacity 2000units Per Year

Product Description

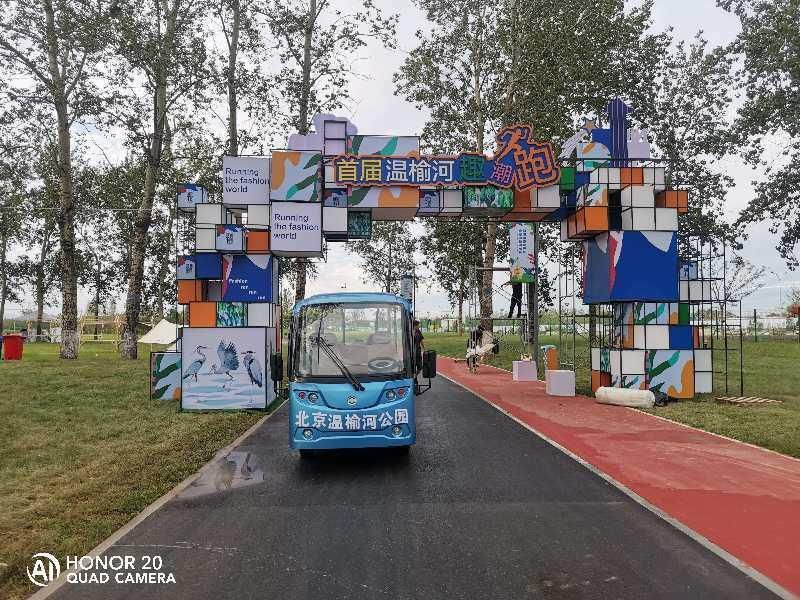

11 Seats Electric Bus, Shuttle Bus, Electri Car, Sightseeing Bus, Battery Powered Tourist Bus


Model No.       Configuration	GVG11
Battery Type	Maintenance free battery,8pcs×6V/48V
Driving range distance /Km	~80
Size(mm)L*W*H	4390×1500×2120
Seating capacity	11
Wheel base(mm)	2840
Max speed(Km/h)	35
Maximum climbing ability	20%
Ground clearance(mm Fully load)	150
curb weight(kg)	900
Loading capacity(kg)	700
Charging Time(h)	8
Body work	Rust-proof treated steel frame with injected PP covered
Windshield	Double laminated glass with wiper blade
Roof	Plastic injected
Seat	PU seats with armrest and safety belt
Floor	Anti-skid plastic flooring
Dashboard	Automotive instrument desk with luminous instructions, Voltmeter, electricity meter, Ampere meter, USB connector
Light	Headlight, Turn light, Brake light, reversing light, Horn, Reverse alarm
Motor	4 Kw AC Motor
Braking system	Front disc, rear drum brake with hydraulic brake
Suspension	Front: leaf spring rigid axle suspension suspension,  Rear: full floating rear axle with cylinder hydraulic shock absorber
Steering system	Rack and pinion steering system with electric power steering
Speed control system	Stepless speed change operating system
Controller	High quality Intelligent controller
Tire	Auto tire with Aluminum alloy wheel hub
Audio	Car Audio
Charger	High performance intelligent charger
Remark:	1.The driver and passenger cab can be closed and equipped a Air Conditioner. 2.Lead time: 30-35 days after receiving the 30% deposit. 3.Payment terms: BY T/T 30% IN ADVANCE, THE BALANCE WILL BE PAID BEFORE DELIVERY.
