Jmc Hydraulic Lift Platform Truck, Aerial Work Platform Vehicles
Chengli Special Automobile Co., Ltd.- After-sales Service：Video Technical Support ,Online Support
- Warranty：1 Year or 30000km
- Type：Self-propelled
- Certification：ISO9000, CCC
- Emission Standard：Euro 6
- Hoesrpower：102
Base Info
- Payload：3-5tons
- Fuel：Diesel
- Transmission Type：Manual
- Drive Wheel：4*2
- Condition：New
- Transport Package：RO-RO Ship
- Specification：6850*1980*3080
- Trademark：JMC
- Origin：China
- HS Code：8705909990
- Production Capacity：500 Piece,Month
Description
Overview
Product DescriptionItem Specification Item Specification General Truck Name Overall Dimension (mm) 6850,6580x1980x3080 Truck Model YZR1061TSG25 Wheel Base (mm) 3360 Traction System 4 x 2 Gross Weight (kg) 5835 Cab Capacity 1+1+3 Curb Weight (kg) 5510 Transmission manual Front Wheel Tread (mm) 1385 Chassis Brand JMC Rear Wheel Tread (mm) 1425 Tyre Model 7.00R16LT 10PR Approach Angle (°) 27 Quantity of Tyre 6 Departure Angle (°) 13 Quantity of Axles 2 Front Overhang (mm) 1065 Max Speed (km/h) 85 Rear Overhang (mm) 2155 Chassis Chassis Model JX1061TSG25 Leaf Spring 7/5+6 Engine (Motor) Brand JMC Type of Fuel Diesel Model JX493ZLQ5; Displacement (ml) 2771; JX493ZLQ5A 2771 Power (kw) 85; Emission Standard Euro 5 85 Equipments Max Operation Height (m) 14-16 Arm Rotation Angle 360° Max Operation Radius (m) 7.2 (360°) Arm Rotating Speed (r/min) 0-2 Operation Stage Dimension 1100x570x1000mm Support Legs 4 H-shape legs (2 front & 2 rear) working platform rating 200 Operation Control System Electrically hydraulic control loading(kg) Hook Loading Weight (kg) ≥1000 Type of Working Arm 3 folding arms
Product ParametersSpecification of JMC High Altitude Operation Truck 14-16m Euro 5
Detailed Photos

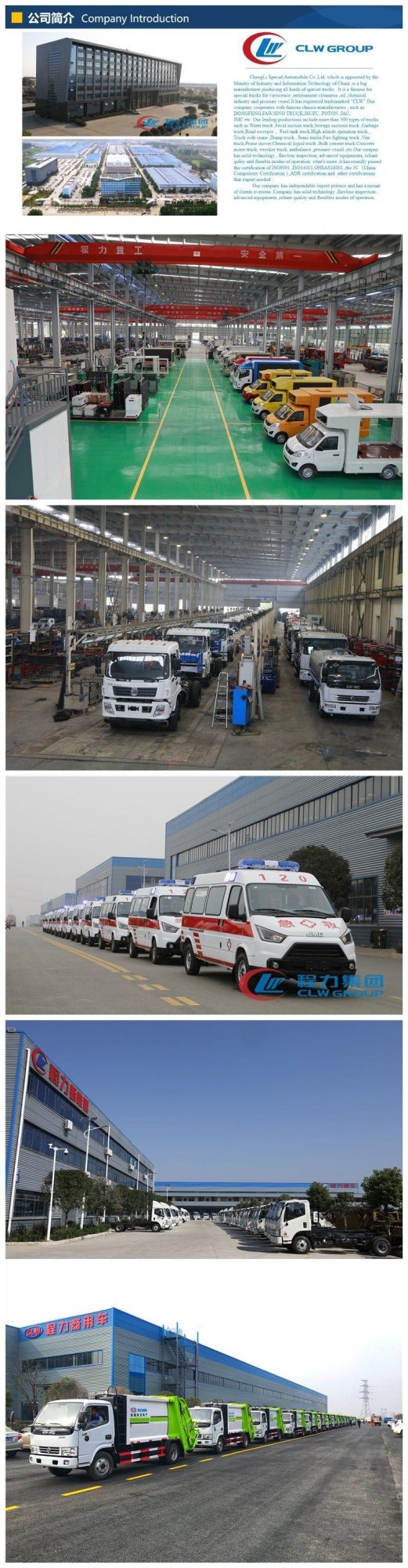

Company Profile
