• Model NO.：CLW5065KLU
• Use：Stainless Steel
• Cleaning Process：Cold Water Cleaning
• Condition：New
• Truck Chassis Brand：Dongfeng
• Dimensions：6190*2090*2500mm
• Dust Bin Capacity：4cbm, 6cbm, 7m3, 8m3, 12m3
• Water Tank：1m3, 1.5m3, 2m3, 4cbm
• Drive Model：4X2
• Material：Stainless Steel
• Operation：Self-Loading and Discharge
• Hand Driving：LHD or Rhd
• Max. Operation Ability：56000m2,H
• Max. Working Width：2700mm
• Auxiliary Engine：Isuzu Brand
• Paint：Color and Logo Designed According to Customers
• Transport Package：Naked Packing
• Specification：6cbm
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：87059099
• Production Capacity：500 Units Per Month

Basic Info.

Model NO. CLW5065KLU Use Stainless Steel Cleaning Process Cold Water Cleaning Condition New Truck Chassis Brand Dongfeng Dimensions 6190*2090*2500mm Dust Bin Capacity 4cbm, 6cbm, 7m3, 8m3, 12m3 Water Tank 1m3, 1.5m3, 2m3, 4cbm Drive Model 4X2 Material Stainless Steel Operation Self-Loading and Discharge Hand Driving LHD or Rhd Max. Operation Ability 56000m2/H Max. Working Width 2700mm Auxiliary Engine Isuzu Brand Paint Color and Logo Designed According to Customers Transport Package Naked Packing Specification 6cbm Trademark CLW Origin Suizhou, China HS Code 87059099 Production Capacity 500 Units Per Month

Product Description

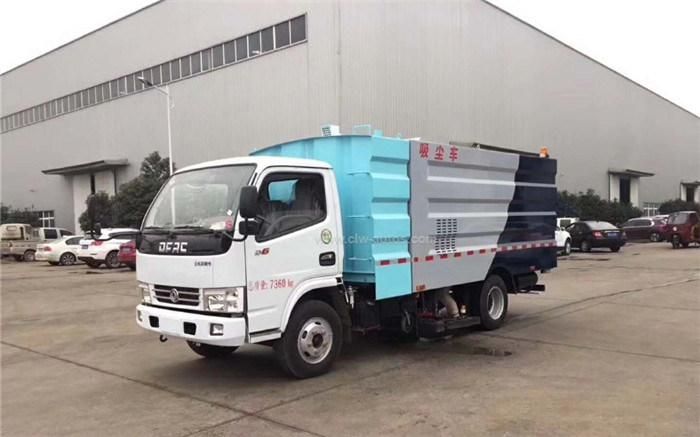

Customized Design Dongfeng Small Cleaning Vehicle for Dust Suction Brushes Optional


Advantage:

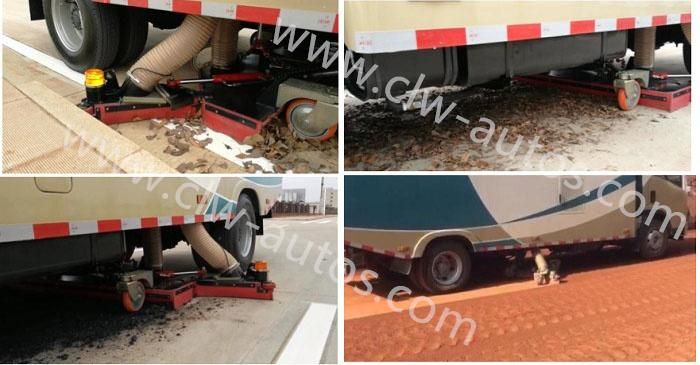

1. Full suction cleaning, no need to replace the brush; easy maintenance, no dust.
2. The cleaning effect is perfect, from tens of micron dust to ordinary pebbles, leaves and other debris can be effectively removed
3. With efficient filtration system.
4. Improve cleaning efficiency and reduce cleaning costs: a vacuum cleaner is equivalent to the labor efficiency of more than 30 cleaners.
5. Suitable for coal plants, power plants, cement plants, steel plants, mining pavements, etc.
6. Certification: ASM, ISO, BV, SGS, CCC etc.






Product Name(mm)	Road Sweeper	Outline size(mm)	6190×2090×2500
Color	White	Engine Power(kw)	102
Total Mass(kg)	7360	Engine displacement(ml)	3200
Rated Mass(kg)	1830	Vehicle weight	3800
Allowable passenger	3	Warranty	1 years
Tire specification	7.00R16	Tire numbers	7 (including 1 spare tire)
Fuel type	Diesel	Garbage bin volume(cbm)	4.5 cubic (stainless steel)
Sweep rate	99%	Cleaning width (mm)	2100-2700
Cleaning operation speed (km/h)	5-20	Maximum diameter of inhaled particles	≥50mm
Maximum cleaning capacity (m2/h)	56000	Maximum Speed (km/h)	98

                                                                                Application

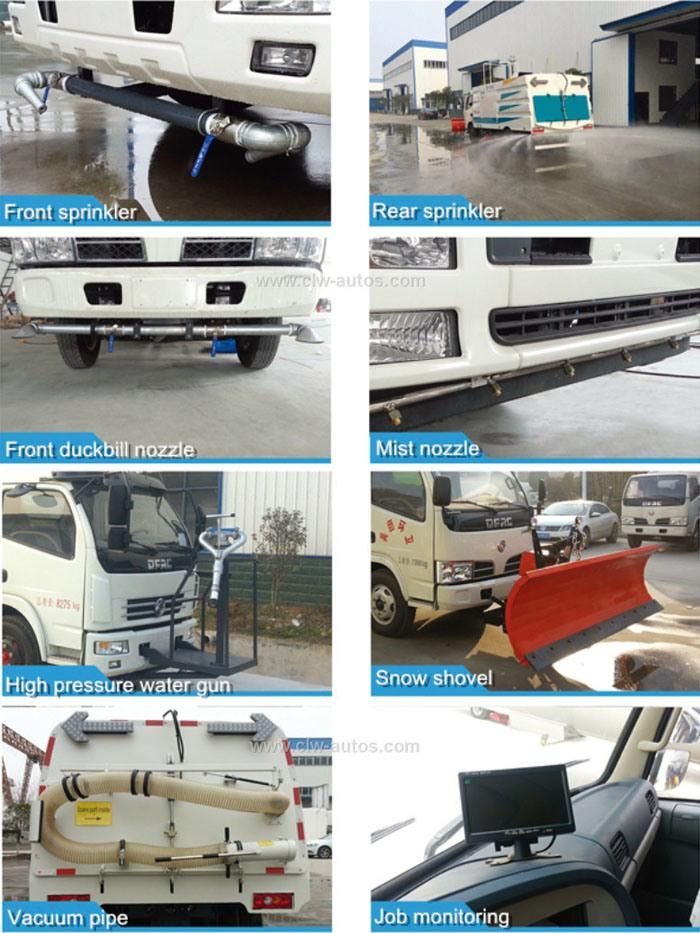

Optional function:




                                                                         Company Profile
The CLW group, which was appointed by the Development and Reform Committee of China. ChengLi is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.

• Certificate: ASM, ISO, BV, SGS, CCC etc.
• 12 independents workshops.
• 1000 sets of equipment, 25 assemble lines.
• 300 senior engineers and technicians. About 8000 workers.
• 800kinds of LPG, trucks and semi-trailers.
• 20 years wholesale experience
• Turnover 250 million and Export 20million annually
• Turnover 2 billion trucks and semi-trailers annually.
• LPG/Truck Sold to 90 countries
• Cooperates with DONGFENG,SINOTRUCK,ISUZU,FOTON,FAW,BEIBEN,ETC.

Packaging & Shipping:
1.By cargo bulk shipment or ro-ro shipment .
2.By Flat Rack Container.
