• Transmission Type：Manual
• Payload：20tons
• Fuel：Diesel
• Drive Wheel：6×4
• Engine Capacity：＞8L
• Condition：New
• Loading Capacity：20000 Liters,20ton,20cbm,20m3
• Material：Carbon Steel
• Tank Thickness：4mm,5mm, 6mm
• Wheel Base：4350+1300mm
• Engine：Diesel, HOWO
• Horsepower：336HP
• Water Pump：China Famous Brand
• Sprinking Width：14 Meters
• Suction Height：7 Meters
• Tire：12r22.5
• Logo：as Per Customer′s Request
• Water Pump Flow：20cbm,Hour
• Cannon Range：30 M
• User Manual：Yes
• Transport Package：Naked, Waxed, Bulk Ship, RO-RO
• Specification：11100x2500x3700mm
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

Overview Product Description

1. Optional chassis brand of portable water truck : Dongfeng, Sinotruk, FOTON/Forland, Faw, Shacaman,

2. Material of portable water truck :High Tension Steel Q235/Q345,stainless steel 304 for option.

3. Sprinking Width of portable water truck :>14M

4. Rear working platform with water cannon range of portable water truck :28M

5. Reliable and high quality water pump


Product Parameters



ConditionNew condition/Left hand drive/6x4ChassisBrandHOWOCurb weight(kg)11000  kgLoading weight(kg)20000 kgGross weight(kg)31000  kgWheelbase(mm)4350+1300mmDimensions(mm)11500*2500*3700 mmFront Loading Capacity (Ton)7Rear Loading Capacity (Ton)2*13Max. driving speed(km/h)90 km/hClutchReinforced diaphragm clutchBrakesService brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheelsAuxiliary brake: engine exhaust valve brakeSteering GearPower steering, hydraulic steering with power assistanceTireQuantity10 pcs with one spare tireSpecifications12R22.5TransmissionManual type,10 Forwards and 2 reverseCabinSingle row seat, Tiltable. It can accommodate three people. With air conditioner.EngineBrandHOWOFuel typeDieselPower(kw)247 kwHorsepower(HP)336Cylinder number6Emission standardEuro 2/3UpperWater tankCapacity(cbm/tons)20/20Tank Dimension(mm)4500*1700*1100Tank materialQ235 carbon steelThickness(mm) 4Water pumpChina local brandSuction Height7MFunction1, Front Side Rear Sprinkling width≥14m2, Water cannon range≥28mRemarks1. AM/FM radio2. 2pcs water hose.3. Color is optional

Water Tank Truck Diagram

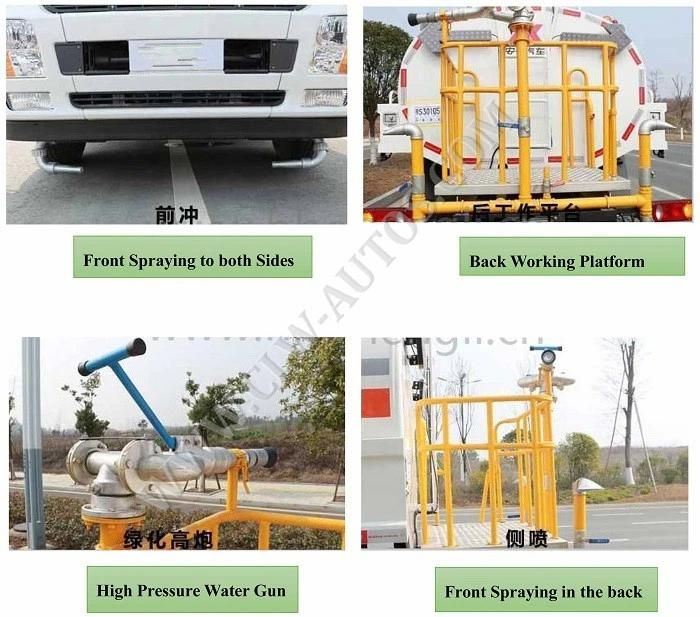

Water Truck Parts Photos



Company Profile

Overseas exhibition

Packaging & Shipping
