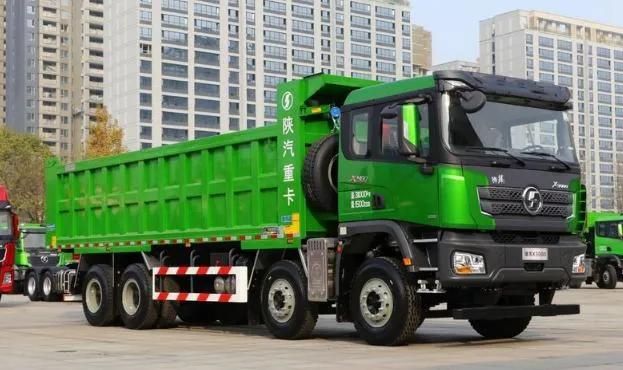

Shacman X3000 420HP 8X4 Dump Truck
Shanghai CIMC J.T Vehicle Manufacturer Co., Ltd.- Certification：ISO9000, CCC
- Transmission Type：Manual
- Emission Standard：Euro 3
- Displacement：9
- Payload：30T
- Fuel：Diesel
Base Info
- Drive Mode：8x4
- Engine：Cummins
- Front Axle：7.5 Ton Man
- Rear Axle：16 Ton Man
- Tire：12.00r20
- Color：Green
- Horsepower：345-385
- Product Name：Shacman X3000 8X4 Dump Truck
- Transport Package：Nude
- Specification：9345*2500*3900
- Trademark：shacman
- Origin：China Mainland
- Production Capacity：40, 000 Units,Year
Description

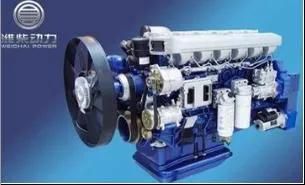

Driving type 8X4 Wheelbase(mm) 1800+3975+1400 Max weight (KG) ≤90000 Max Speed(km/h) 80 Dimensions(L×W×H) 11350x2490x4000 Approach/Departure angle (°) 20/18 Max. gradeability (%) 30 Engine(Cummins) Model ISM11E4 420

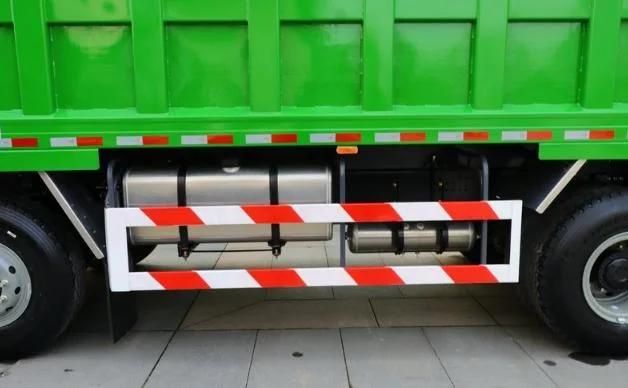

Fuel Type Diesel Emission Euro IV Rated output(kw/rpm) 309/1900 Max torque(N.m) 2000 Displacement (L) 10.8L Fuel Tanker Capacity(L) 400L aluminum Clutch Model φ430 diaphragm-spring type
Transmission Model (Fast)12JSD200T-B+QH50 Driving Steering Z/F Z/F technology LHD

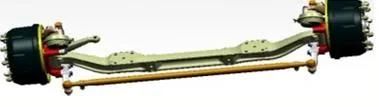

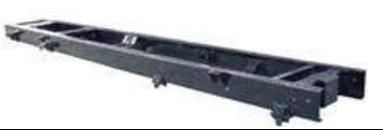

Frame 850x320(8+7+8) Front Axle 9.5T MAN

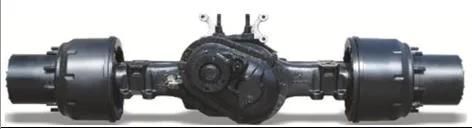

Rear Axle

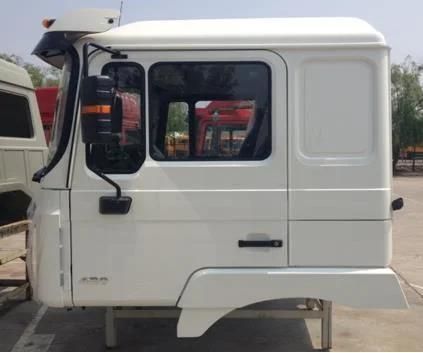

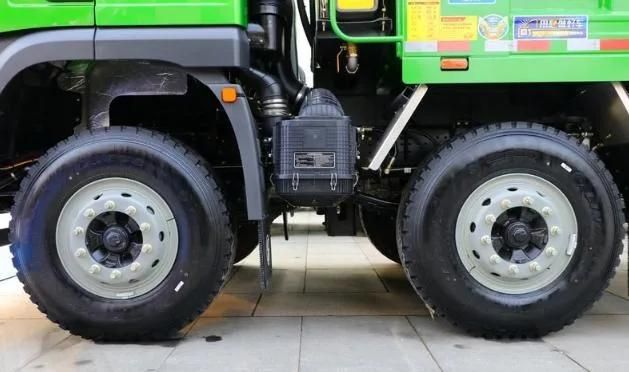

Suspension Front& rear multi-leaf spring; 4-main leaves+4 U-bolts Tire 12.00R20 Qty Of Tire 12+1 Battery 180AH Cab High-roof cab,With rear window, curtain, hydraulic main seat, four-point hydraulic suspension, integral rearview mirror, single refrigeration air conditioner, electric window shaker, manual flip, telescopic shaft control, general air filter, engineering bumper, water tank protection grid, movable (hinged) vehicle pedal, rear light protection grid, SHACMAN logo, all English logo
BOX/L*W*H 7800*2300*2000mm,bottom 8mm side 6mm, HYVAΦ 179 front lifting cylinder(Maximum lifting capacity 90 tons)
2. High performance: Improved muffler, improved ground clearance, new exhaust system layout, lowest center of gravity, new stabilizing technology.
3. Top grade chassis, reinforced driver cab, upgraded oil bath type air filter, strengthened transmission shaft, improved cab front suspension, new front axle stabilizer bar and muffler, imported cab turning shaft, off road racing quality cab damping spring.
 |
 |
 |
 |
 |
 |
X3000
1.Cummins core power upgrade, FAST twin center shaft structure gearbox, HanDe high ratio single stage axle, vehicle power increased by 20%, Cummins ISM engine .
2. High performance: Improved muffler, improved ground clearance, new exhaust system layout, lowest center of gravity, new stabilizing technology.
3. Top grade chassis, reinforced driver cab, upgraded oil bath type air filter, strengthened transmission shaft, improved cab front suspension, new front axle stabilizer bar and muffler, imported cab turning shaft, off road racing quality cab damping spring.
4. Mature power delivery system, increased overall efficiency, higher uptime, lower maintenance cost.
No matter what the job entails, our qualified professionals can help you pick out the perfect vehicle.

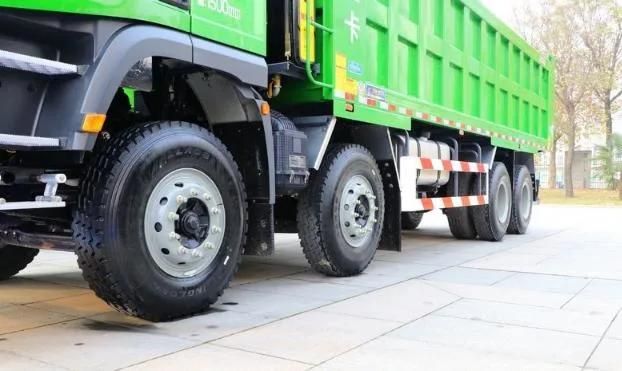

More Photos:
