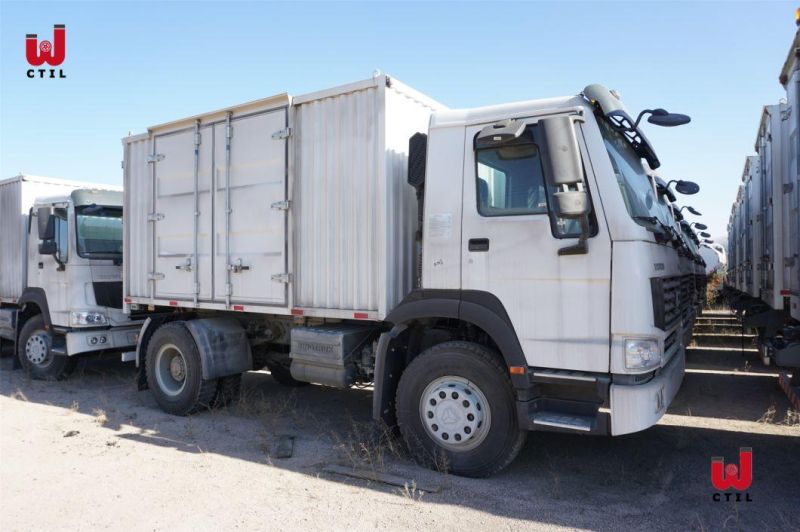

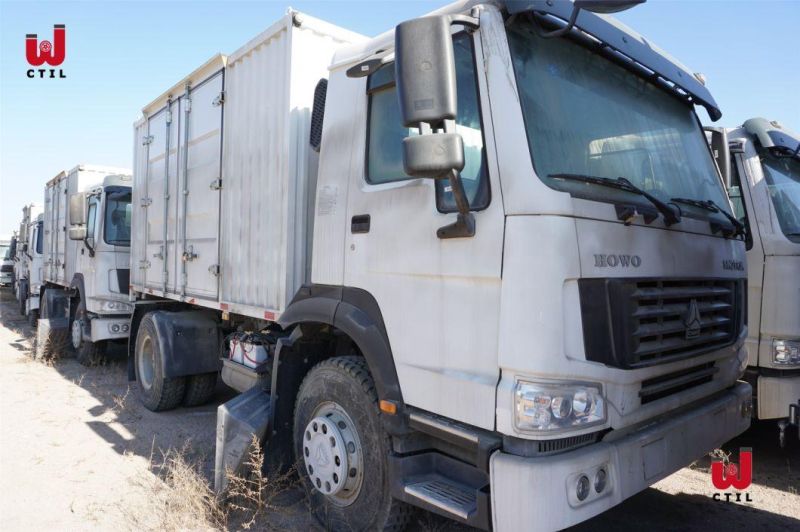

HOWO 4X2 Freezer Van Truck Refrigerator Truck
QINGTE GROUP SPECIAL VEHICLES CO., LIMITED- Certification：ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE
- Payload：20T
- Emission Standard：Euro 2
- Transmission Type：Manual
- Horsepower：251-350hp
- Fuel：Diesel
Base Info
- Model NO.：Refrigerator Truck
- Bearing Capacity：Medium
- Car Type：Van
- Condition：New
- Color：Red Yellow Green White Black Blue
- Driver Seat：Air Suspension Seat
- Warranty：One Year or 100000km Which Comes First
- Transport Package：Nude Packing
- Specification：CCC, ISO9001
- Trademark：SINOTRUK
- Origin：China
- HS Code：8704224000
- Production Capacity：20000units,Year
Description
Cabin
Driving type 4x2
With three seats, With air conditioner, Left hand driven.
Vehicle Main Dimensions
Overall dimensions (L x W x H)mm
8700×2490×3850
Wheel base (mm)
4500
Wheel track (front/rear) (mm)
1506/1466
Approach/Departure angle(°)
19/15
Weight in KGS
Tare Weight
Loading Capacity
Front axles loading capacity
5000
Rear axles loading capacity
10000
Max. driving speed(km/h)
90
Brand
YUChai
Model
YC4E160-33
Type
4-stroke direct injection , 4-cylinder in-line with water cooling
Horse Power(HP)
160HP
Emission standard
Euro 2
Gearbox
Manual type, 5 Forwards & 1 Reverse
Steering Gear
Power steering
Tire
7.00-16 with one spare tire , 7 pieces
Brake System
Service brake: dual circuit compressed air brake
Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust valve brake

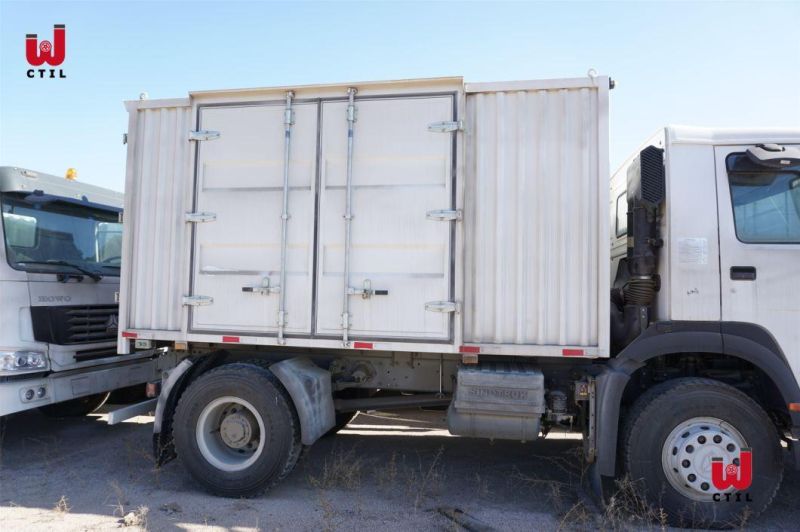

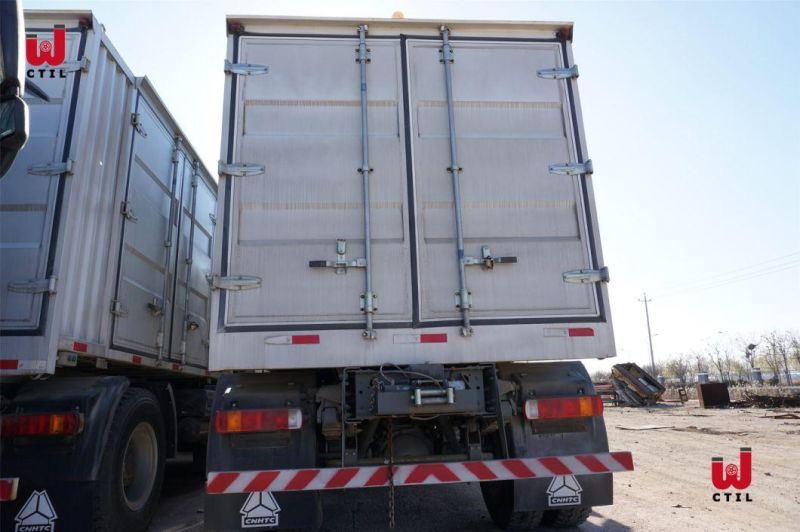

Refrigerator Van
Refrigerator Van body
Dimensions(mm)
6100*1910*1900 mm
Van material
Glass fiber reinforced plastic
Insulating layer material
Polyurethane foam
Insulating layer thickness(mm)
80 mm
Self Contained Cooling Unit
Brand
American brand Carrier
Model
VIENT0350
Refrigerated Temperature(°)
-18ºC-0ºC
3. Packing and Shipping
Packing: Nude packing after painting wax or according to your requirement.
Shipping: By bulk cargo carrier, RORO
4. Our Products Warranty
(1) One year quality guarantee or within 100000km, which comes the first.
(2) Other spare part could be supplied by OEM at cost prices.
(3) Regularly callback to know the vehicle's working status.
(4) The overseas engineers are always ready to deal with unexpected needs.

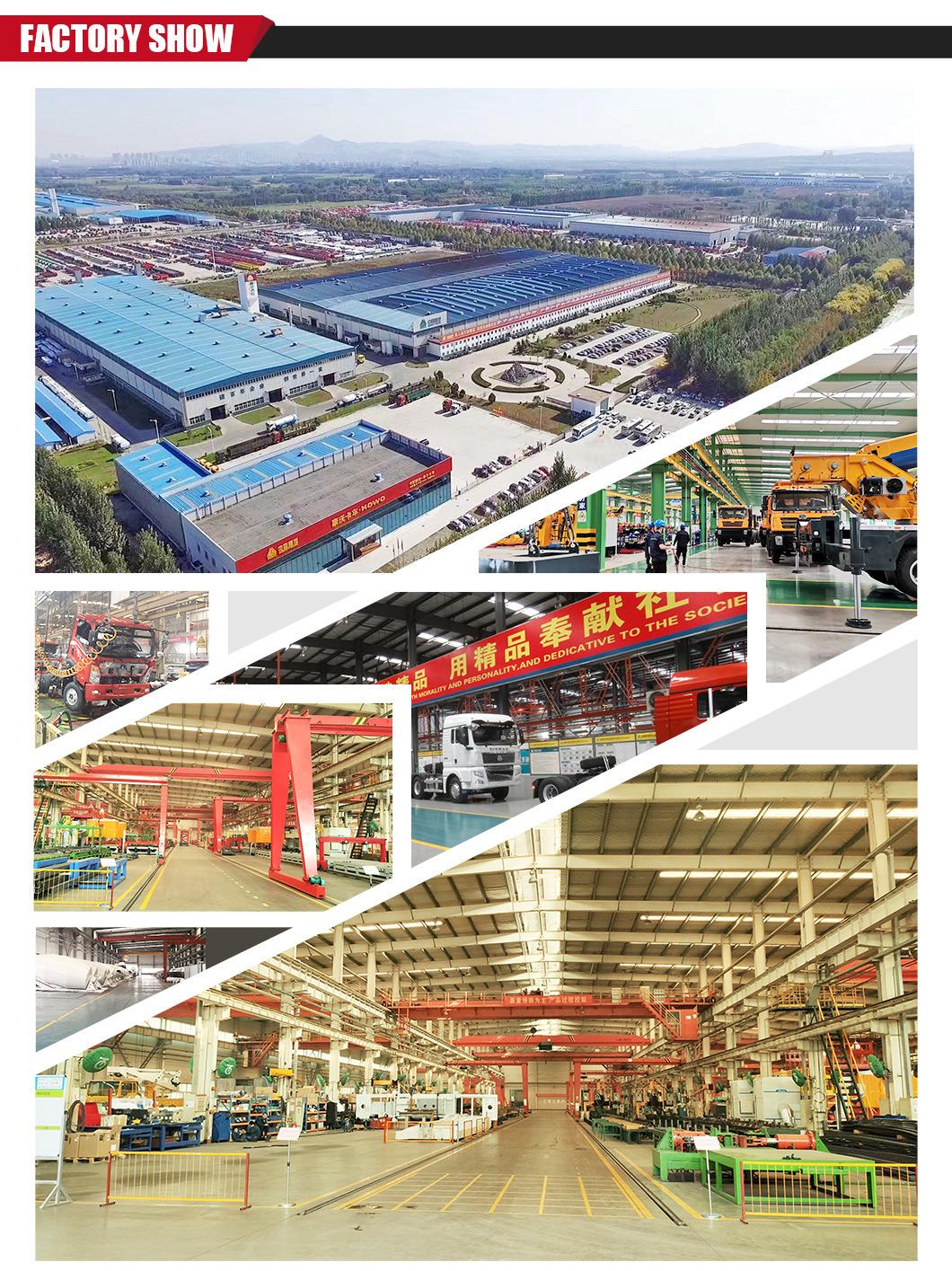

5. Company information
China Truck International Ltd is one of the main exporters of Chinese trucks which is authorized by Ministry of Commerce
6. FAQ
We always attach great importance to quality controlling from the very beginning!
And we are well capable in offering overseas after-sales service. Besides, we also provide rational
Packing and shipping program, let shipment save money and security.
Show you our stock if you need.
2010 terms, and we normally work on FOB, CFR, CIF, CIP, EXW.
(1) For 80% of our shipment, we will go by sea, to all main continents such as South America,
Middle East, Africa, Oceania etc. Either by container or RoRo/Bulk shipment.
(2) For neighborhood countries of China, such as Russia, Mongolia, Kazakhstan, Uzbekistan, Vietnam, Laos etc., we can ship construction machinery by road or railway.
(3) For light spare parts in urgent demand, we can ship it by international courier service, such as
DHL, TNT, UPS, or FedEx.
Staff of our company can provide the trucks meeting the requirement of customers at the best price. We have many years of experience in exporting trucks. We have not only the certificate and license of truck export and also strict quality management, fast and convenient channel of goods delivery, strict examination in quality and quantity of products, professional packing, professional and reliable loading goods, on-time delivery and competitive prices. If you want to buy tractor truck, please contact us.
We sincerely hope to cooperate with you to expand market in your country!
