China Factory JAC Left/Right Hand Drive 6000litres Vacuum Sewage Suction Truck
Hubei Weiyu Special Vehicles Co., Ltd.- Certification：ISO9000, CCC, TS16949, CE
- Emission Standard：Euro3, Euro4, Euro5
- Payload：5t-12t
- Transmission Type：Manual
- Fuel：Diesel
- Tank Volume：5000L-12000L
Base Info
- Model NO.：CLW5082K3GMQ
- Drive Wheel：4x2
- Hoesrpower：109HP
- Condition：New
- Fuel Type：Diesel
- Drive Model：Right Hand Drive & Left Hand Drive
- Gearbox：6 Forwards & 1 Reverse
- Tank Material：5mm Carbon Steel
- Vacuum Pump：Chinese Brand, Italy Brand or Other Imported Brand
- Sewage Suction Pipe：7m
- Suction Time：<5min
- Effective Suction Range：>8m
- Painting：Customized
- Delivery Time：30 Days
- Certificate：ISO CCC SGS BV
- Warranty：1 Year
- Tanker Volume：3m3, 4m3, 5m3, 6m3, 8m3, 10m3, 12m3, etc.
- Chassis Brand：Dongfeng, Isuzu, Foton, JAC, etc.
- Tire：6 Tires with One Spare
- Transport Package：Naked, RO-RO, Bulk
- Specification：6860*2040*2800mm
- Trademark：CLW
- Origin：Suizhou, China
- HS Code：87059099
- Production Capacity：500 Units,Month
Description

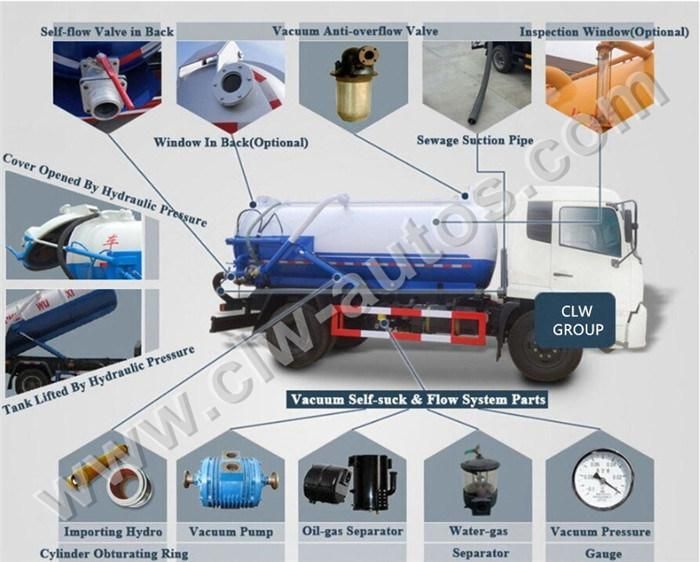

Superstructure ParameterCharacteristic 1. Sewage tank volume 6000 liter.
2. Sewage tank material is carbon steel,thickness 5mm.
3. Sewage suction pipe 1pcs, length 7m.
4. Hydraulic lifting sewage tank,rear cover can open.
5. Equipped with PTO.
6. Equipped with vacuum pump.
7. Equipped with oil water separator, overflow valve,looking sewage window, self flow exit,hand washing device. Performance (1) Vertical suction ≥ 7m.
(2) Pumping speed : 45L/s.
(3) Intake and exhaust diameter: 50mm.
(4) Full tank pumping time ≤ 5min.
(5) Sewage tank emptying time ≤ 4min.
Company Profile
The CLW group, which was appointed by the Development and Reform Committee of China. CLW group is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.
Products Catalog:
1. LPG Tank Truck Trailer/ Fuel Tanker Truck/ LPG station
2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck mounted crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck /Refrigerated truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truc
12. Tractor
13. High Pressure Cleaning Truck
14. Sweeper Truck
15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
Bulk Order
2. Sewage tank material is carbon steel,thickness 5mm.
3. Sewage suction pipe 1pcs, length 7m.
4. Hydraulic lifting sewage tank,rear cover can open.
5. Equipped with PTO.
6. Equipped with vacuum pump.
7. Equipped with oil water separator, overflow valve,looking sewage window, self flow exit,hand washing device.
(2) Pumping speed : 45L/s.
(3) Intake and exhaust diameter: 50mm.
(4) Full tank pumping time ≤ 5min.
(5) Sewage tank emptying time ≤ 4min.
