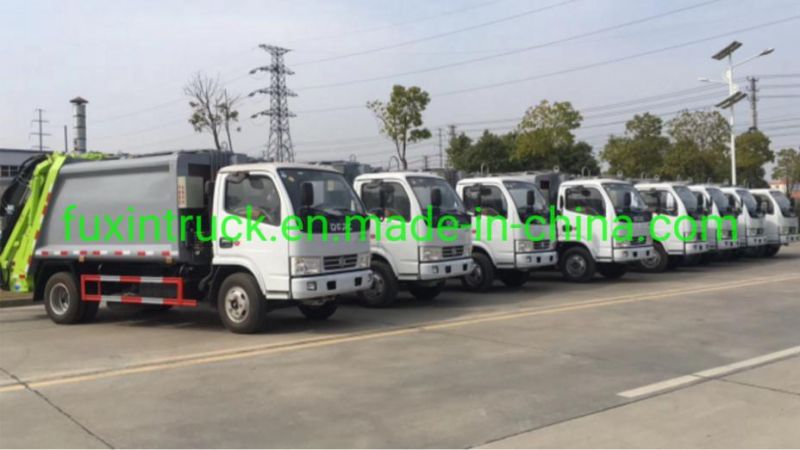

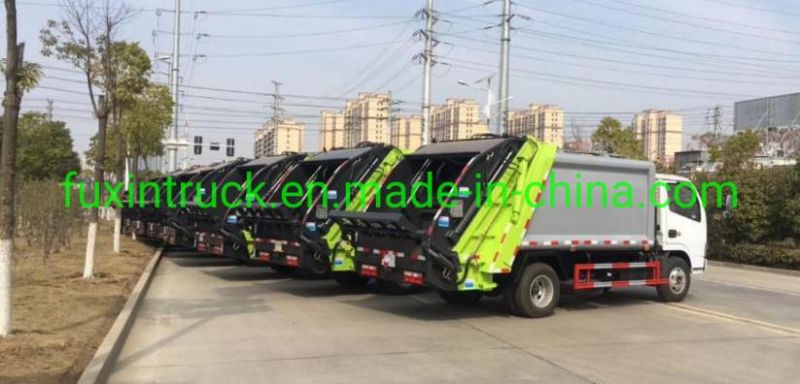

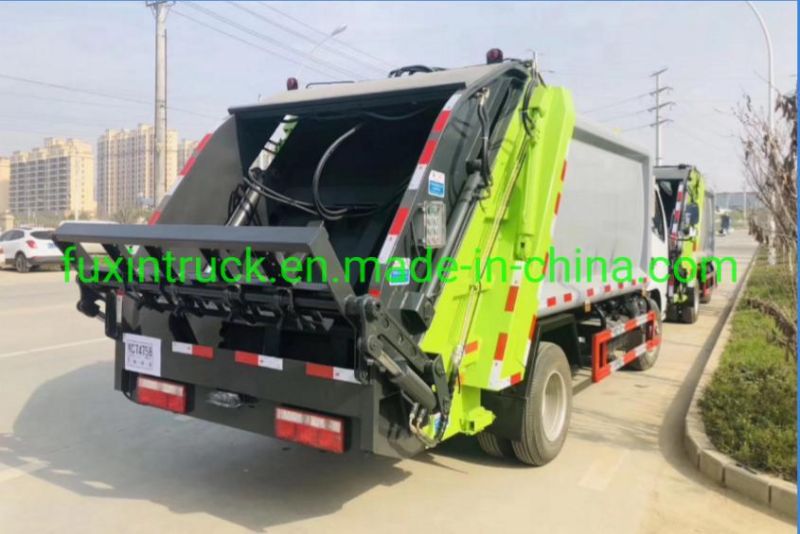

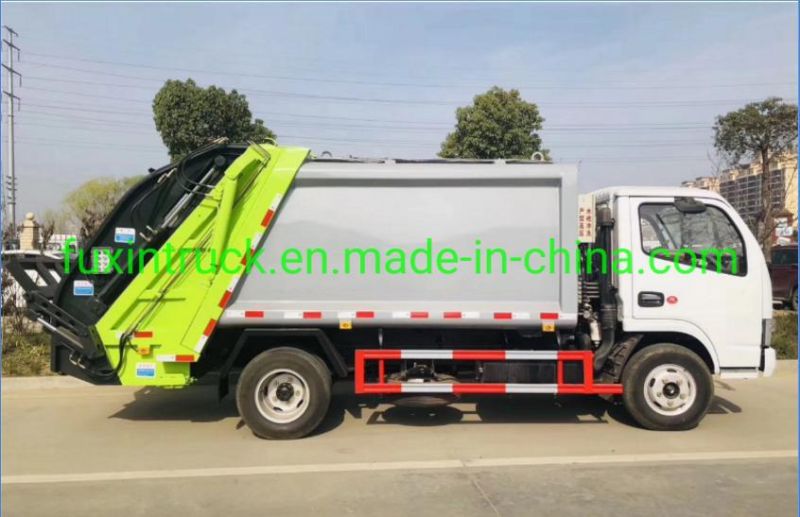

6 Cubic Meters Compression Garbage Truck
Shandong Fuxin Automobile Technology Co., Ltd.- After-sales Service:We Supply Spare Parts to The Importer
- Warranty:12 Months After Delivery at Destination Port
- Type:Recycling
- Certification:ISO9000, TS16949
- Volume:6 Cubic Meters
- Emission Standard:China Emission III
Base Info
- Transmission Type:Automatic
- Payload:5 Tons
- Fuel:Diesel
- Drive Wheel:4×2
- Brand:Dongfeng
- Models:Medium
- Usage:Compression Type
- Condition:New
- Transport Package:Nude in CBU
- Trademark:FOSION
- Origin:China
- HS Code:87059090
- Production Capacity:300 Units Per Year
Description
ChassisModel DF DLC 6cbm Compression Garbage Truck Engine Yuchai 130hp Cabin Width 1730mm Flat Head Cabin No of Shifts 5 shifts Tread (mm) 3300mm Front axle/rear axle 2T/3.5T Tire 7.00R-16 Battery 24V Camel Brand Beam 190mm straight ConfigurationOverall dimension(mm) 6670*2080*2570 Tank capacity 6m³ Shape of tank Arc/square for option Thickness of material 4 mm Compression ratio ≥2.5 Filler effective volume ≥0.5m³ Filling cycle time ≤35m s Shirk trash time ≤25 s Control form Automatic/manual Max hydraulic pressure 16MPa Multi way valve China CHANGYUAN Hydraulic pump China CHANGYUAN Hydraulic cylinder Swiss HAIPU Control system Siemens PLC control technology Bucket turning mechanism Hang two 240L standard trash cans at the same time
