• Model NO.：CLW50659
• Brand：Foton
• Condition：New
• Wheel Base：5200 mm
• Engine：170HP, Diesel
• Gearbox：6 Forward & 1 Reverse
• Tire：9.00r20
• Max. Loading Weight：5000kg
• First Flatbed Dimension：4200X2320mm
• Second Flatbed Dimension：7300X2320 mm
• Winch Rating Pulling Capacity：5000 Kg
• Hydraulic Tailgate：1200 mm
• Wire Rope：25 Meters
• Warranty：One Year
• Logo：as Per Customer′s Request
• Transport Package：Naked, Waxed, Bulk Ship, RO-RO
• Specification：5995x2300x2350 mm
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

General Technical ParametersOverall Dimension9500x2480x2760(mm)Gross Vehicle Weight15795 kgCurb Weight8950 kgChassis SpecificationChassis ParametersChassis BrandDongfengCabinSingle, Left Hand DrivingEngineModel6 CylindersPower125 KW/170HPEmission StandardEURO IIDisplacement4730mlFuel TypeDieselGearbox6 Forward & 1 Reverse GearFront and Rear Axle Load4T/9TWheel Base5200 (mm)Overhang( Front/Rear)1858/1865 mmAngle(Approach/departure)19/13 (°)Brake Systemoil brakeSteering GearPower AssistantTire9.00R20,6 Pieces with 1 Spare TireMaximum Speed90 (km/h)SuperstructureFlatbedNumber2 Units Dimension7300x2320 mmDimension4600x2320 mmMax. Loading Weight4500(kg)Operating Stroke2700 (mm)Min. Angle of Slope8(°)Platform Height from the Ground1070(mm)WinchQuantity1pcWinch Rating Pulling Capacity5000 (kg)Length of Steel Cable25 (m)Hoisting OrganRating Under-Pulling Capacity6000 (kg)Rating Under-Hoisting Capacity2000 (kg)Fully Extended Max Under-Hoisting Capacity1600 (kg)Max Under-Hoist Useful Length1640 (mm)Remarks1. Equiped with One set of Auxiliary Wheels
2. Bandages 8pcs
3. Yellow Warning Lamp 1pc
4. Double Side Hydraulic Operation
5. Can Tow 3 Cars

Truck Diagram



 Truck Details

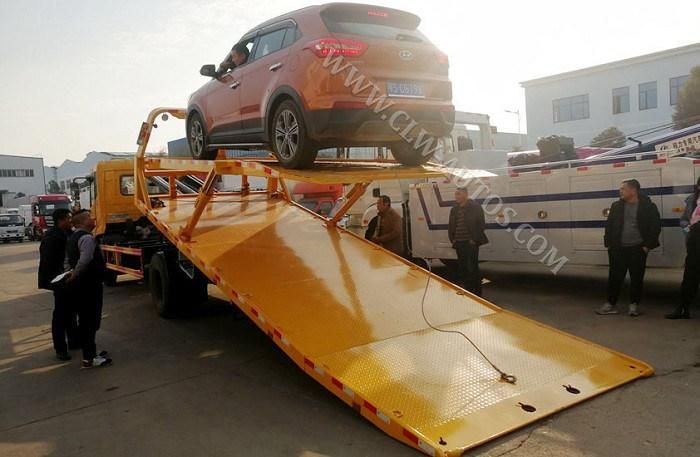

Working Show
