• Model NO.：CLW5193K4BME
• Fuel：Diesel
• Drive Wheel：4×2
• Horsepower：251-350hp
• Condition：New
• Chassis Brand：Dongfeng, Isuzu, HOWO, etc.
• Traction Type：4*2
• Cabin：4 Doors with A,C
• Engine Type：B190 33,140kw
• Fire Pump：CB20.10,30.60
• Material of Tank：Carbon Steel
• Tank Thickness：4,3,3mm
• Flow Rate of Fire Pump：60L,S
• Suction Depth：Deeper Than 7m
• Flow Rate of Fire Monitor：48L,S
• Tanker Capacity：7000L
• Fire Monitor Range：Water 55m, Foam 50m
• Fire Monitor Rotation Angle：360 Degree
• Warranty：1 Year
• Transport Package：Naked, Waxed, Bulk Ship, RO-RO
• Specification：7Ton, 7t, 7000L, 7cbm
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

Detail description for fire truck Entire VehicleMain Parameter Gross Weight(kg)14900Rated Weight(kg)6070 Total Weight(kg)  8380Overall Dimension     (L * W * H) (mm) 8570*2500*3580 ChassisChassis ModeEQ1141KJEngine ParameterModeB190 33Power(kw)140Displacemint (ml)5900Fuel Type                  DieselFunctional Parameter Max Speed(km/h)85 F/R Tread(mm)      1940/1860 Leaf Spring8/10+8 F/R Overhang(mm)1205/2135 Axle Load(kg) 4900/10000Approach/Departure25/15angle(°)Tire Size10.00-20, 10.00R20Number of Tires6Wheelbase (mm) 4500 Number of Axles2Specialized DevicePumpCB20.10/30.60, Folwing rate: 60L/sMonitorPL48, Flowing rate: 48L/s/1.0MPa,             Covering range: Foam:≥50m, Water:≥55m

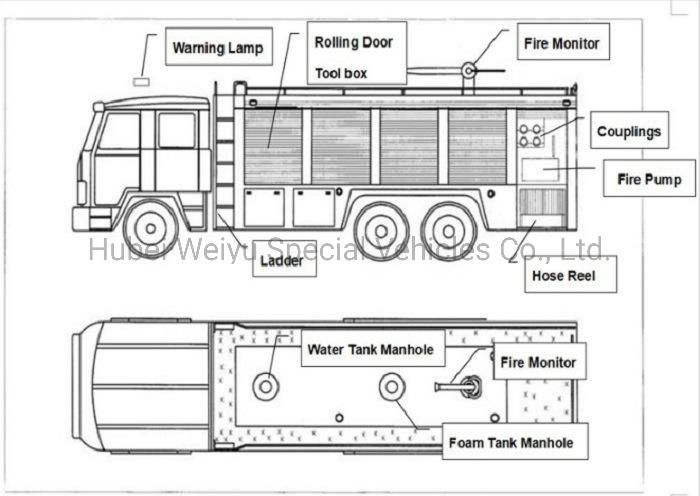

Main Structure Diagram

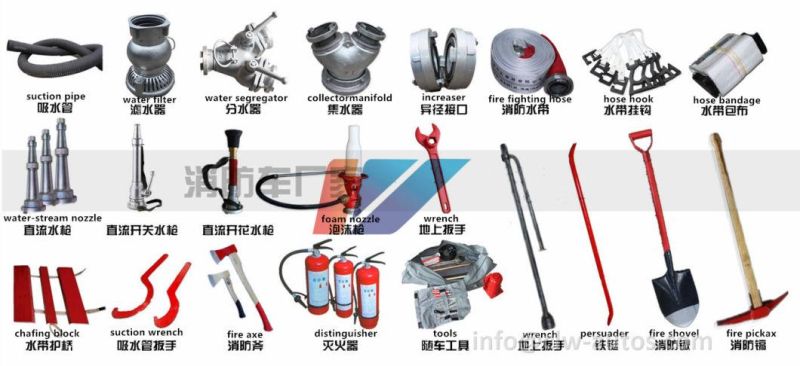

Main Tools of Fire Fighting Truck

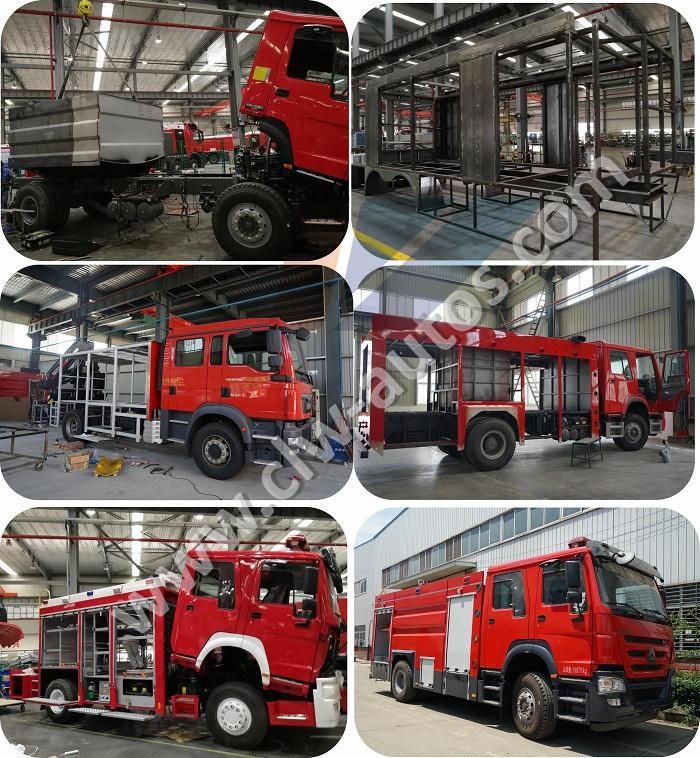

Production Show

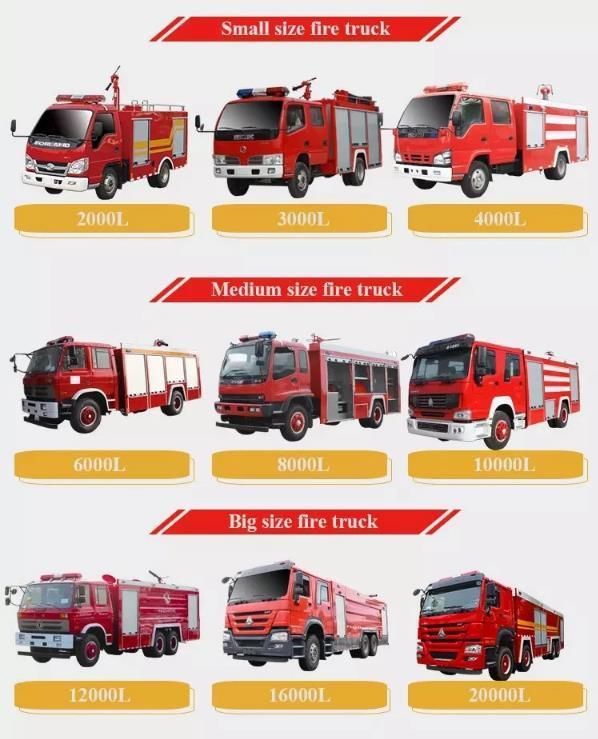

Different Capacity of Fire Fighting Truck




Certificates
