• Model NO.：CLW510LJC0005
• Transmission Type：Manual
• Payload：5ton, 6ton, 7ton, 8ton, 9ton, 10ton
• Fuel：Diesel
• Drive Wheel：4×2
• Brand：Dongfeng
• Models：Medium
• Usage：Compression Type
• Condition：New
• Chassis Brand：Dongfeng, Foton, Sinotruk, JAC, etc.
• Campacting Ratio：0.8-0.9 Ton,M3
• Compression Ratio：3-4
• Compression Cycle Time：No More Than 15s
• Unload Garbage Time：No More Than 23 S
• Hydraulic Pressure：16MPa
• Garbage Box Thickness：Side 3mm, Bottom 4mm, Carbon Steel-Q345A
• Garbage Box Volume：5cbm, 8cbm, 10cbm, 12cbm, 15cbm, 18cbm, 20cbm, etc
• Garbage Box Capacity：4ton, 6ton, 8ton, 10ton, 12ton, 15ton, 16ton, etc.
• Dirty Water Tank Volume：0.2cbm
• Hopper Volume：0.8cbm

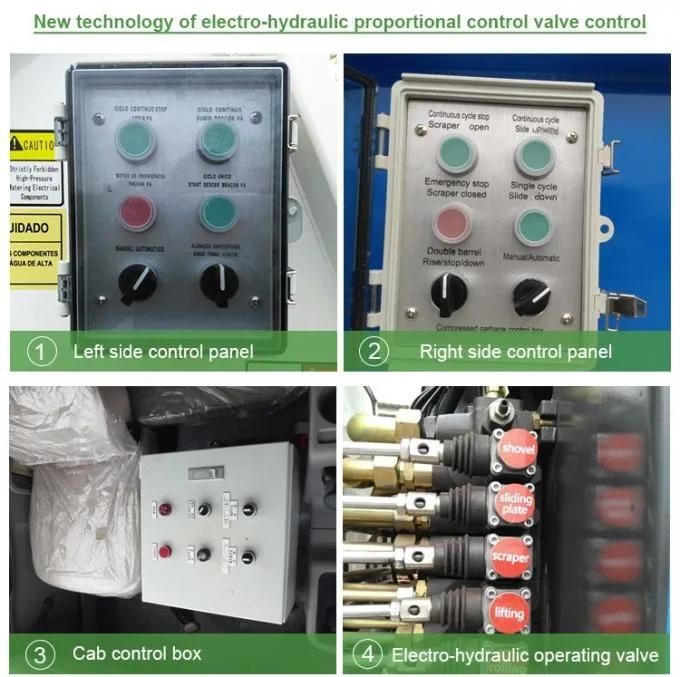

• Controlling Way：Manual and Electrical Control
• Color：as Per Customer′s Request
• Transport Package：Naked Pack with Wax
• Specification：6520*2100*2600 (mm)
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

General Technical ParametersOverall Dimension83165×2500×3610(mm)Gross Vehicle Weight16000(Kg)Curb Weight6800(Kg)Chassis SpecificationChassis BrandDONGFENGDrive model4*2CabinSingle Row, LHD, with air condition, audio system, and USB, etc.Number of Passengers2EngineModel4JB1CN/98HP, 4-stroke direct injection , 4-cylinder in-line, intercooled supercharging, withABS.Power103KW/170HPEmission standardEURO 4Displacement8900(ml)Fuel typeDieselGearboxMSB-5MT, 6Forwards & 1Reverse, manual operation, with power steering.Brake SystemOil breakWheel Base34600mmFront/Rear Axle Loading2500/4800(Kg)Approach/Departure Angle24/12°Tire7.00-16, 6pc with 1 spare tireMax Driving Speed110(km/h)Upperstructure SpecificationCompector BoxBox Volume6CBMBox Capacity4TonDirty Water Tank Volume0.2CBMHopper Volume0.8CBMCompression density0.8-0.9T/CBMCompression ratio3-4Compression cycle time≤15 sUnload garbage time≤23 sBody ThicknessSide3mm, Carbon Steel-Q345ABottom4mm, Carbon Steel-Q345AThe Electromagnetic ValveUZCT-115/24V, 2setsHydraulic Pressure16MpaControlling WayManual and electrical controlOther Configuration

1. Tail feed flip frame or flip bucket, PLC one-button control system, etc.

   After-sales Service

   1)Pre-sales Service: Communicate with customers, analyze their needs.
   2)Sales Service: Provide professional technical solutions, recommend the right models accordingly.
   3)After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

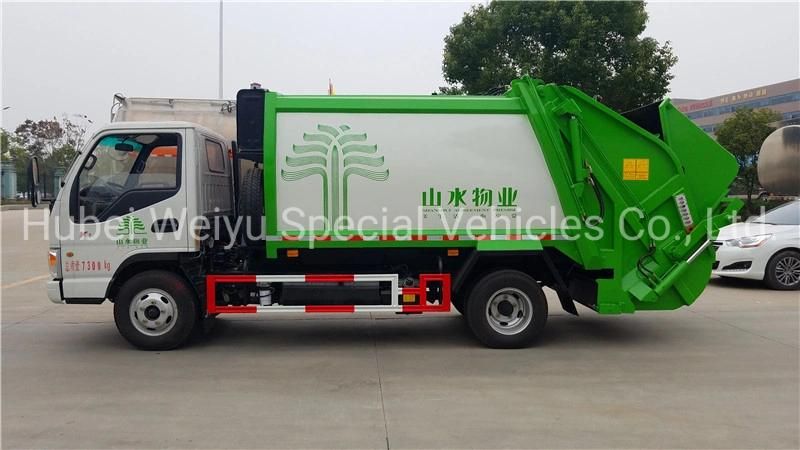

   Reference Photos

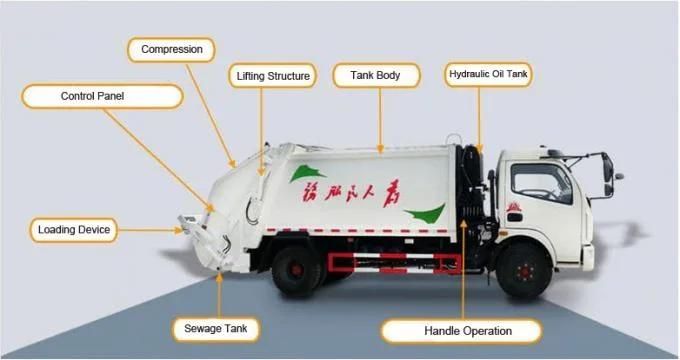

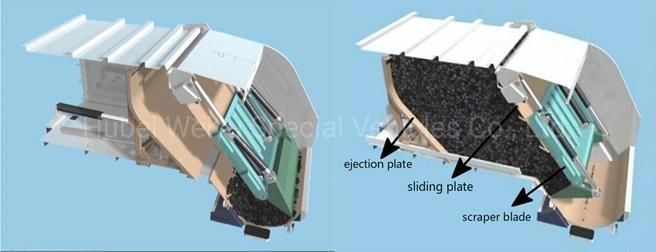

   Main Working System

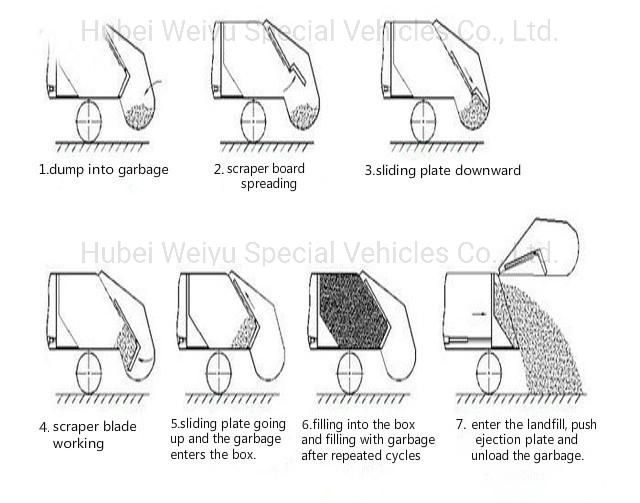

   Garbage Loading and Unloading Process

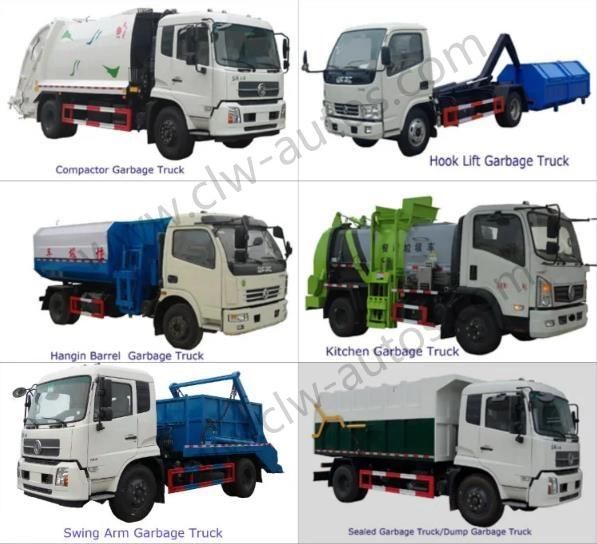

   Various Kinds of Garbage Trucks


   Company Introduction


   Certificates


   Our Overseas Exhibition


   Contact Lea for more details:


   Mrs Eunice Xu

   Hubei Chengli Special Automobile Co., Ltd
