• Model NO.：CLW5275vw
• Maximum Horsepower：336HP
• Condition：New
• Loading Capacity：10cbm
• Material：Manganese Steel
• Tank Thickness：5mm, 6mm
• Wheel Base：4350+1350 mm
• Horsepower：336 HP
• Gearbox：10 Forward, 2 Reverse
• Oil Tank：Alluminum Alloy, 400L

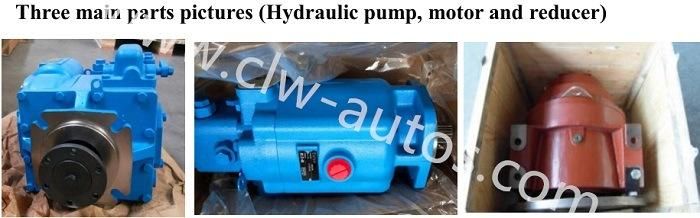

• Hydraulic Pump：Italy or USA Brand
• Motor：Italy or USA Brand
• Reducer：Italy or USA Brand
• Radiator：Chinese Famous Brand
• Logo：as Per Customer′s Request
• User Manual：Yes
• Warranty：One Year
• Transport Package：Roll-Roll, Bulk Shipment
• Specification：10CBM
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

CabinDriving type6x4, LHDVehicle Main DimensionsOverall dimensions (L x W x H)mm9800×2490×3980Wheel base (mm)1800+3825+1350 mmWheel track (front/rear) (mm)1500/1860Approach/Departure angle(°)32/14Weight in KGSTare Weight16000payload8870Front axles loading capacity7000Rear axles loading capacity18000Max. driving speed(km/h)90EngineBrandWeichaiType6-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-coolingHorse Power(HP)336Emission standardEuro IIGearbox10 forwards & 2 reverseSteeringLeft hand driveTire12.00R20 , 12pcswith one spare   Mixer DrumMixer Capacity12 cubic metersDrum thickness6mmBlade thickness4mmTanker Material:Q345 Carbon SteelFilling Rate(%)59Input Speed (m3/min)≥2.8Output Speed (m3/min)≥1.2Surplus Ratio≤0.5 Tanker Rotate Speed(rpm)0~17 Hydraulic PumpItaly Brand: PMPDrum Drive SystemHydraulic MotorItaly Brand: PMP Speed ReducerGermany Brand: ZF RadiatorKAITONG Water Tank Volume(L)400

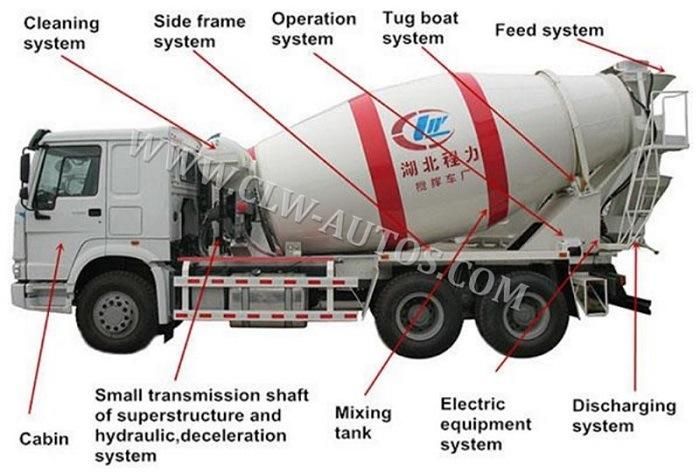

Truck Diagram

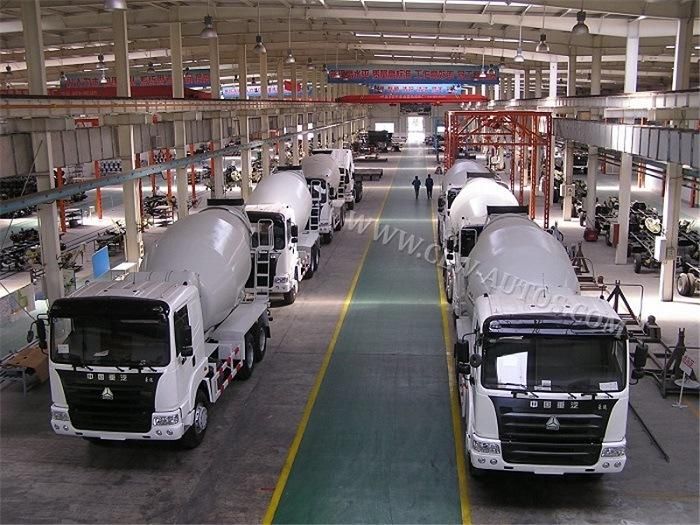

Workshop




Production Procedure




Factory Overview



Overseas Exhibition and Local Support




Customer  Visiting
