Shacman F3000 Weichai Engine 7 Cbm 336HP 375HP Concrete Mixer Truck

QINGDAO DAWNSHINE IMPORT AND EXPORT CO., LTD.
  • Certification：ISO9000, CCC
  • Transmission Type：Manual
  • Emission Standard：Euro II or III
  • Displacement：9
  • Payload：20T
  • Fuel：Diesel

Base Info

  • Model NO.：Shacman 7cbm mixer truck
  • Drive Mode：6x4
  • Maximum Horsepower：300-400hp
  • Condition：New
  • Engine：Weichai 336HP
  • Cabin：with A,C & Sleeping Bed
  • Cargo Body：7m3
  • Steering：Zf Technology
  • Axle：Man Axles
  • Tire：12.00r20
  • Colors：Red, White, Blue, etc
  • Emission Optional：Euro 2, 3, 4
  • Mixer Pump：Italy Top Brand
  • Engine Optional：340HP, 375HP, 380HP
  • Transport Package：Nuding
  • Specification：7m3 concrete mixer truck
  • Trademark：Shacman F3000
  • Origin：Shaanxi, China
  • Production Capacity：10000 Sets,Year

Description

ParametersDrive Type6x4Cab TypeF3000 CabinEquipmentwith Air Condition,One sleeperWeight Kerb mass(kg)13240GVW(kg)13240+25000Dimensions Max. length(mm)9130Max. width(mm)2500Max. height(mm)3950Front/Rear overhang(chassis)1525/2055Wheel base(mm)3650+1350Track width(mm)2036/1808Mixing capacity 6-12 m³Italy TOP P68 reduction gears, 089 pumpSteel (mm)5mmPerformance Max. speed (km/h)90Max. gradeability(%)30Approach/Departure angel(°)                         20/19Engine BrandWEICHAIModelWP10/12Power (kw/hp)336hp-420hpMax torque (N.M)/rpm1360/1400--1600Displacement (L)9.726/11.596Emission StandardsEuro II/IIITransmission BrandFASTModel12JS160TControl typeManualGear Shift12-forward & 2-reverse speedsClutchSingle plate,diaphragm springDiameter (mm)Φ430ActionHydraulically operating with air assistanceBrakesDrumService BrakeWith dual-circuit compressed air brakePark BrakePower spring brake acting on rear wheelAuxiliary BrakeWEVBSteeringZF TechnologySuspension FrontLongitudinal leaf springRearInverted leaf spring stabilizator suspensionAxles FrontMAN : 7.5 tonRearMAN : 16 tonRatio4.7/5.2/5.9Tyre12.00R20/22.5Fuel Tank300/400LMaterialAluminium AlloyElectrics Type24VStarter5.58kw(24)Generator2.0kw(28V 70A)Battery2x135Ah

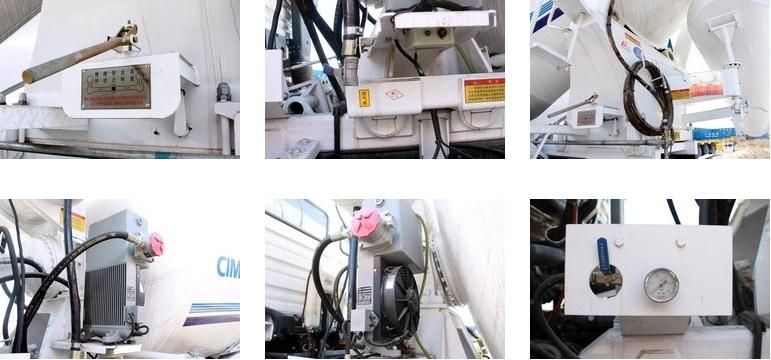

Features
Shacman F3000 Weichai Engine 7 Cbm 336HP 375HP Concrete Mixer Truck

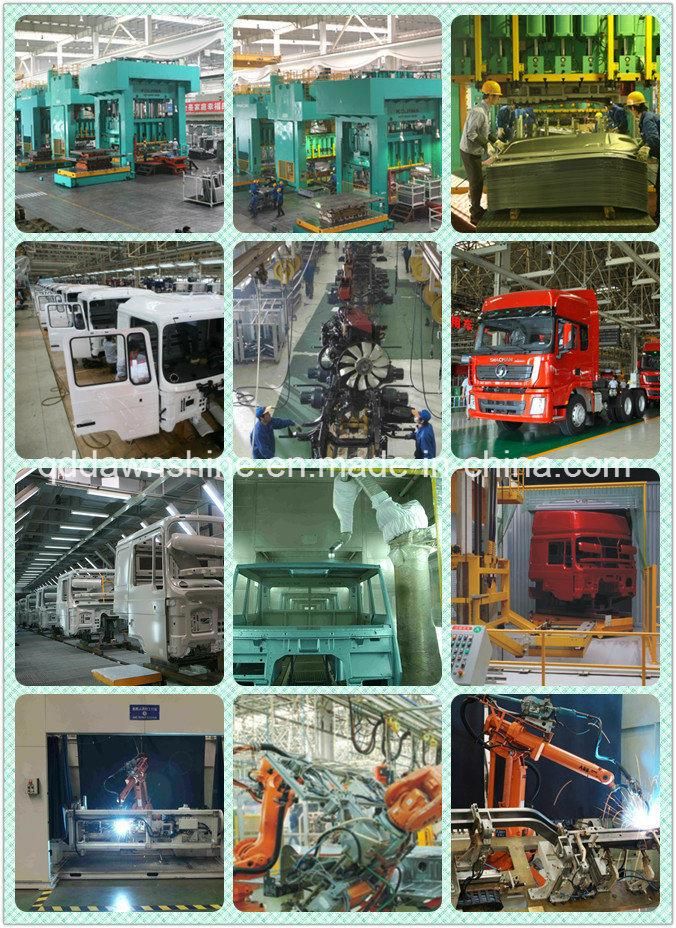

Workshops
Shacman F3000 Weichai Engine 7 Cbm 336HP 375HP Concrete Mixer Truck

Customers & Clients
Shacman F3000 Weichai Engine 7 Cbm 336HP 375HP Concrete Mixer Truck

Picking & Shipping
Shacman F3000 Weichai Engine 7 Cbm 336HP 375HP Concrete Mixer Truck
