• Model NO.：BJ5039XJH-EE
• Horsepower：<100hp
• Axle：Single
• Condition：New
• Engine：Electronic Fuel Injection
• Brake：Front Disc , Rear Drum
• Product Name：Automatic ICU Hospital Patient Transport Medical R
• Transport Package：Unpacked
• Specification：2200mm*1400mm
• Trademark：Poweam
• Origin：China
• HS Code：9402900000
• Production Capacity：200 Sets,Month

Basic Info.

Model NO. BJ5039XJH-EE Horsepower <100hp Axle Single Condition New Engine Electronic Fuel Injection Brake Front Disc / Rear Drum Product Name Automatic ICU Hospital Patient Transport Medical R Transport Package Unpacked Specification 2200mm*1400mm Trademark Poweam Origin China HS Code 9402900000 Production Capacity 200 Sets/Month

Product Description

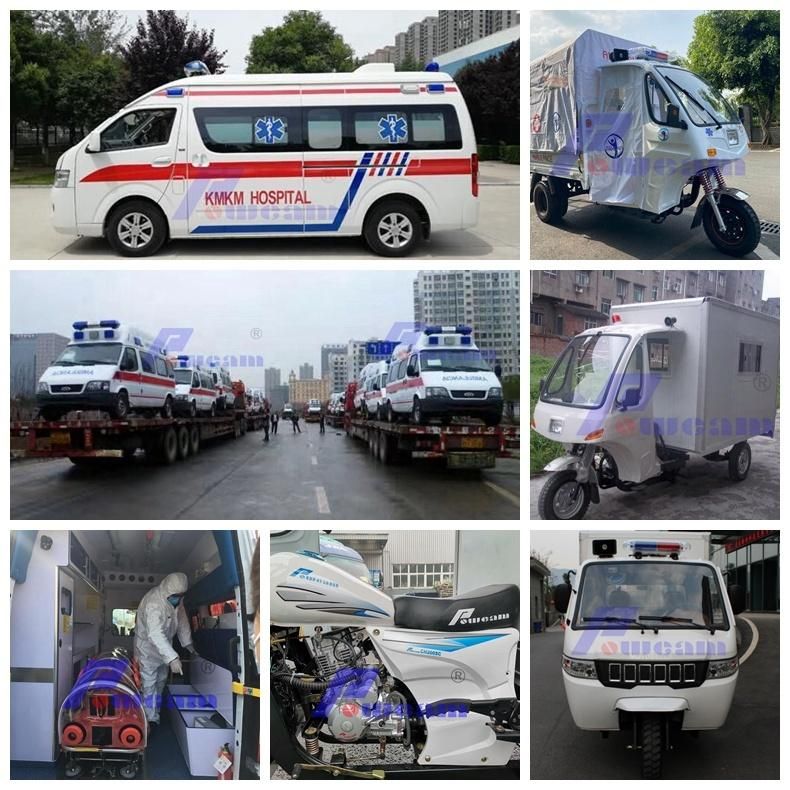

Automatic ICU Hospital Patient Transport Medical Rescue Ambulance

Specification of Ambulance:

A	Technical parameters
	Overall dimensions (mm):5380×1920×2505
	wheelbase (mm):3110
	Patient compartment(mm):3300×1750×1600
	Complete vehicle curb mass:(kg):2002
	GVW (kg):3400
	Engine:4G69S4N
	Fuel type: petrol
	Displacement (L):2.378
	Emission standard:GB18352.5-2013 China IV/EURO IV
	Maximum power (kw):100
	Clutch: single plate, dry type, diaphragm spring
	Transmission: mechanical type, 5MT
	Front overhang/ Rear overhang: 1190/1080(mm)
	Front wheel tread/ Rear wheel tread: 1655/1650
	Brake system: Front disc rear drum brake
	Max. speed (Km/h):160
	Steering system: power-assisted steering
	Tire:195R15C
B	Standard configuration of vehicle
1	Electric side mirrors
2	Power window for front doors
3	Radio +AUX+USB
4	Hand-free Intercom system between driver's cab and Patient's compartment
5	2 seats in driver's cab
6	Single upward opening rear door
7	Foot pedal in rear door
8	Remote central lock
C	Air conditioner and lighting system
1	Vehicle-mounted air conditioner in driver's cab	1
2	Vehicle-mounted air conditioner in Patient's compartment	1
3	Ventilation fan mounted on the roof of Patient's compartment	1
4	1 illumination light s left and right side of vehicle outside	2
7	Illumination lights in Patient's compartment	6
8	Spotlight lights in the roof of Patient's compartment	1
9	Ultraviolet radiation disinfector light	1
D	Central power supply distribution system
1	Automatic charging system	1
2	10m mobile cable	1
3	12V outlets in Patient's compartment	3
4	220V outlets in Patient's compartment	3
5	230V/16A waterproof outside outlet with protection cover	1
6	12V DC power-supply system	1
7	Intelligent inverted power supply system(12V -220V)	1
8	Central control system	1
E	Emergency alarm system
1	Control plate of siren and alarm lamp mounted in driver's cab	1
2	100W loud speaker	1
3	Blue Flashing alarm light bar mounted on the front roof of vehicle	1
4	2 Blue Flashing alarm lights mounted on left and right side of vehicle	4
5	Round cylinder alarm lights on the rear roof of vehicle	2

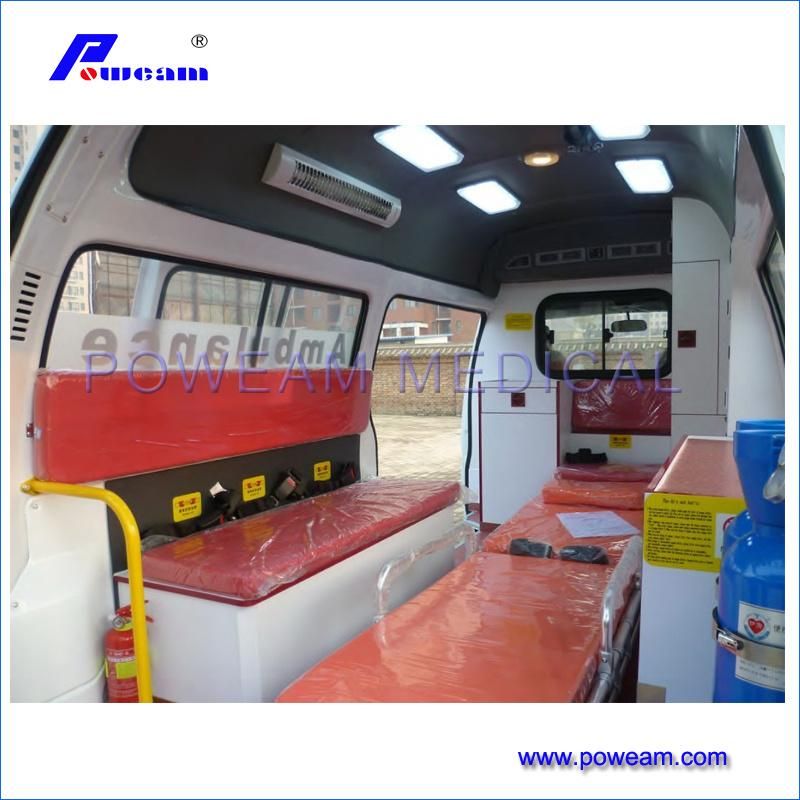

F	Patient's compartment
1	Compartment wall mounted between driver's cab and Patient's compartment , a glass window in wall to make observation
2	One foldable doctor's seat mounted to floor near to compartment wall	1
3	Long bench one piece, mounted in left side of patient's compartment	1
4	Oxygen bottle (10L×2) ,mounted in right side of vehicle
5	Oxygen reducing valve	1
6	Instruments and medicine cabinet mounted to the the right side of patient's compartment
7	Wall, door, and vehicle roof adopts aluminum-plastic Composite materials
8	Imported Interior medical floor, acid & alkali resistance, fire prevention, anti-skid, anti-static.
9	Raised edge of patient's compartment, dust-proof, anti-skidding, washable
10	Ventilation fan mounted in the interior roof of Patient's compartment	1
11	Illuminating lights mounted to the interior roof of patient's compartment	6
12	Red color reflective strip in waist of body
13	Mobile Self-lifting stretcher mounted to patient's compartment	1
14	Adjustable shovel Stretcher
15	220V outside power supply	1
