• Model NO.：CLW50710
• LED Tube Core Type：III
• Self-powered：Self-powered
• LED Screen Type：P6
• Power Supply Mode：Own Generator-powered
• Truck Chassis Brand：Isuzu
• Hand Driving：LHD or Rhd
• Frame Body：Composite Steel
• LED Screen：Waterproof, Shake-Proof, High Brightness
• Floor：Aluminum Patterned Floor
• Control System：Computer,Electrical Distribution Box
• Power Supply：Silent Diesel Generator or Indoor Power Supply
• Sound System：Loudspeaker 4PCS, Amplifier 1PC
• Logo：as Customer′s Request
• Warranty：One Year
• User Manual：Yes
• Operating Video：Yes
• Transport Package：Naked, Waxed, Bulk Ship, RO-RO
• Specification：5995X2040x2990mm
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

General Technical ParametersOverall Dimension5995×2040×2990(mm)Gross Vehicle Weight4495(Kg)Curb Weight4365(Kg)Chassis SpecificationChassis parametersChassis BrandISUZUCabinSingle, Left Hand Driving, with A/CEngineModel4JB1CN, 4 CylindersPower72KW/98HPEmission standardEURO IVDisplacement2.771LFuel typeDieselGearboxMSB, 5 Forward & 1 Reverse GearFront and Rear Axle load2.5T/4.8TWheel base3360(mm)Overhang( Front/Rear)1015/1620(mm)Angle(Approach/departure)24/12 (°)Brake SystemOil brakeSteering GearPower AssistantTire700-15, 6 Pieces with 1 Spare TireMaximum speed98(km/h)SuperstructureLED ScreenPixel

Outdoor full colour display screen

P6

Dimension(LxW)(mm)

Both side: 3840*1792

Rear:1280*1440

Description

Screen lift on both sides

Waterproof, shake-proof, high brightness, long life

General configuration

1. OUMA brand,Silent diesel generator, 15KW

2. One set industrial computer with control system

3. Sound system: Loudspeaker 4pcs, amplifier 1pc

4. Internal and external electrical distribution box.

5. Circulating ventilation and cooling systems.

6. 5CM composite steel frame body

7. Aluminum patterned floor

Remarks

Equipped with Hydraulic stage

The color of the superstructure is oprional.

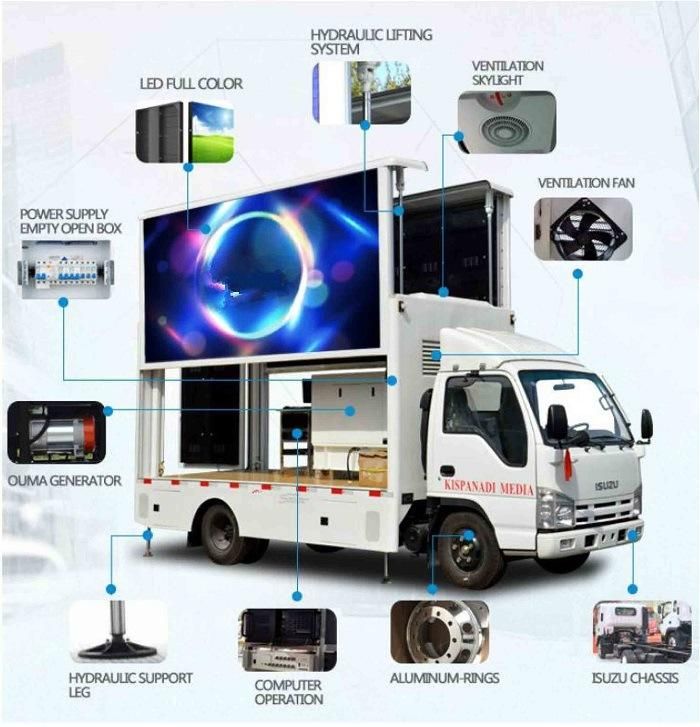

Product Diagram

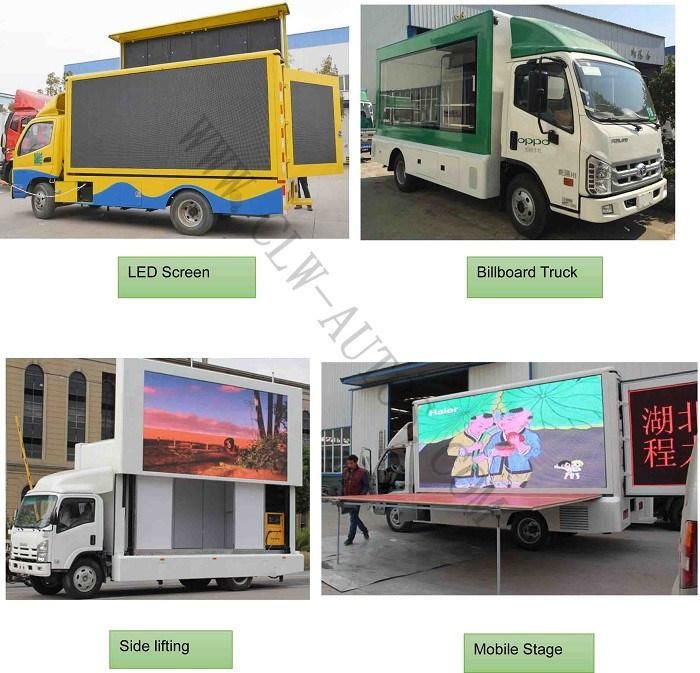

Optional Parts

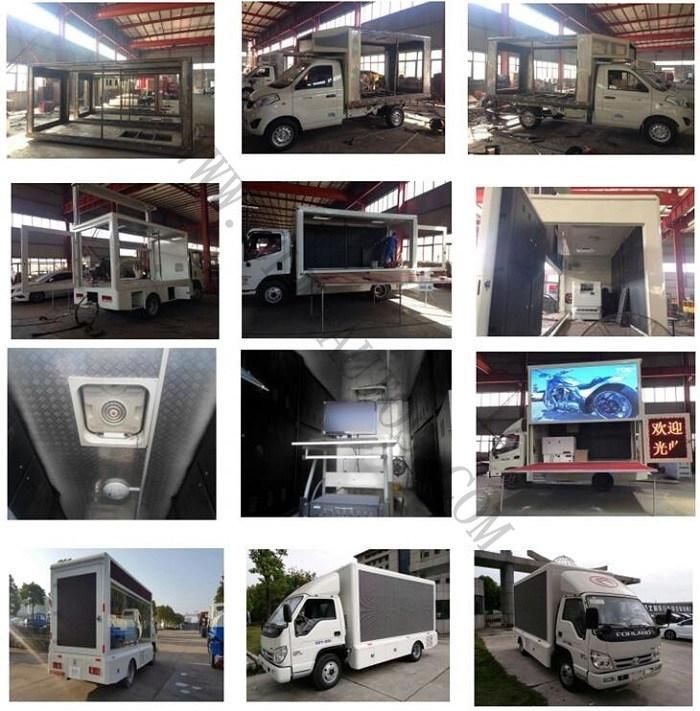

Production Process

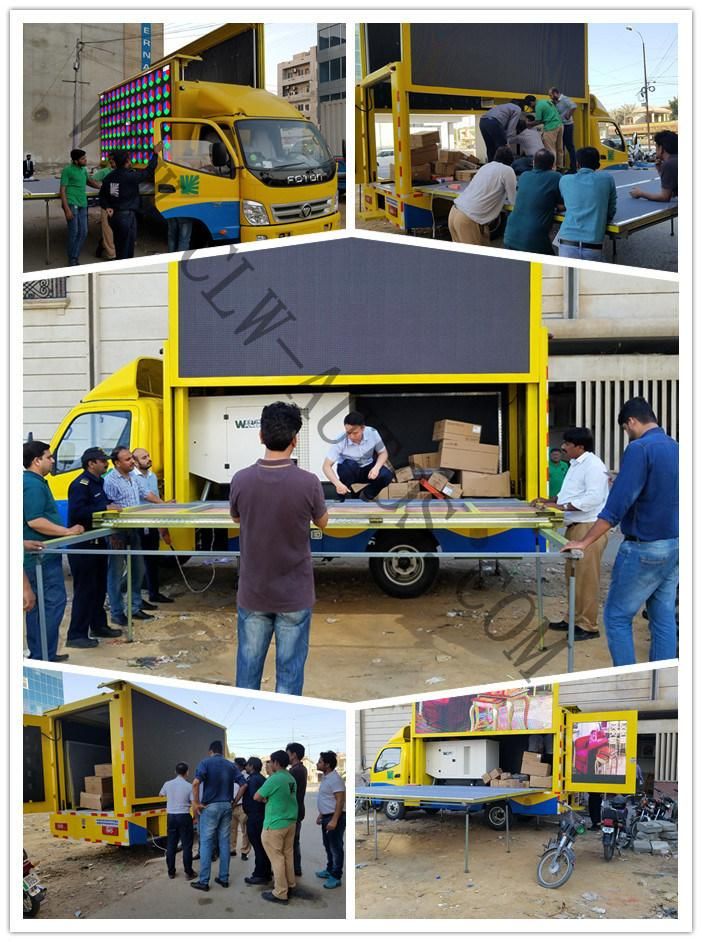

Overseas Training

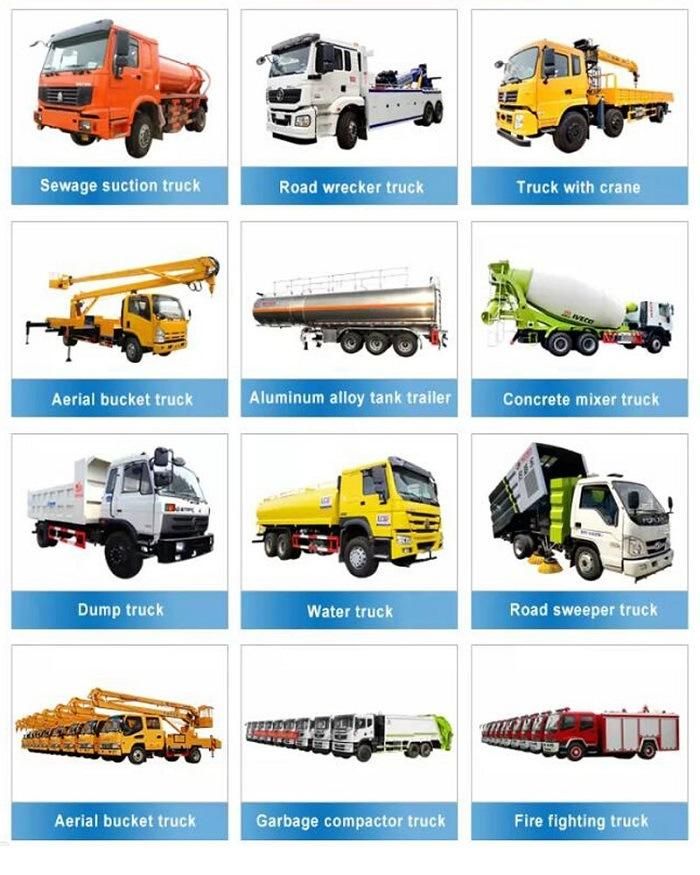

Other Product Series
