Diesel Engine Isuzu Refrigerated Truck Freezer Container Body Cargo Box for Food Transport
Hubei Weiyu Special Vehicles Co., Ltd.- Certification：ISO9000, CCC, CE
- Payload：3ton,5ton,6ton,etc.
- Emission Standard：Euro 3, Euro 4, Euro 5
- Transmission Type：Manual
- Horsepower：＜150hp
- Fuel：Diesel
Base Info
- Model NO.：CLW5043XLCQ5
- Bearing Capacity：Small
- Car Type：Van
- Condition：New
- Gearbox：5 Forward & 1 Reverse
- Rear Platform：Optional
- Box Size：4100*1750*1750mm
- Box Volumen：12.5m3
- Material：Fiberglass
- Insulating Layer：8cm Polyurethane Foam
- Truck Refrigeration Unit：Thermoking, Carrier or Chinese Alternative
- Applicable Temperature：-18~0
- Warranty：1 Year
- Delivery Time：25 Days
- Transport Package：Bulk Ship, RO-RO, Container
- Specification：5995*1930*2870mm
- Trademark：CLW
- Origin：Suizhou, China
- HS Code：87059099
- Production Capacity：500 Units Per Month
Description
Item
Axle
Number of axles: 2
Axle-load: 1725/2770
Wheel base(mm): 3360
Traction system
4*2
GVW(kg)
4495
Curb weight(kg)
2660
Overall dimensions(mm)
5995×1930×2870
Upper box body size(mm)
4150×1750×1750
Max speed(Km/h)
90
Equipment and Function

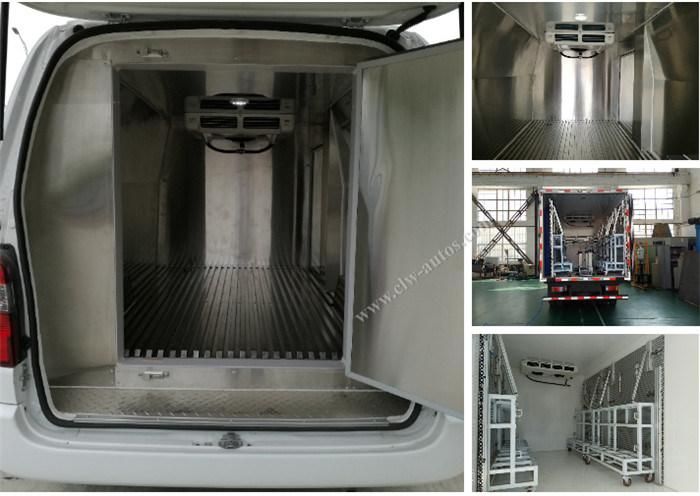

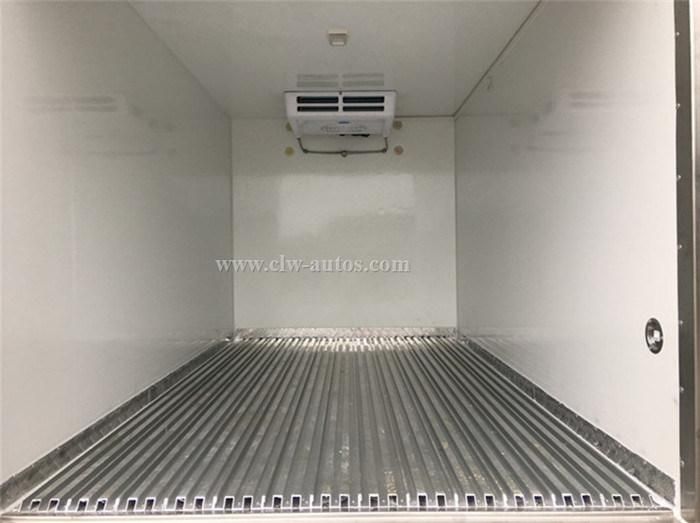

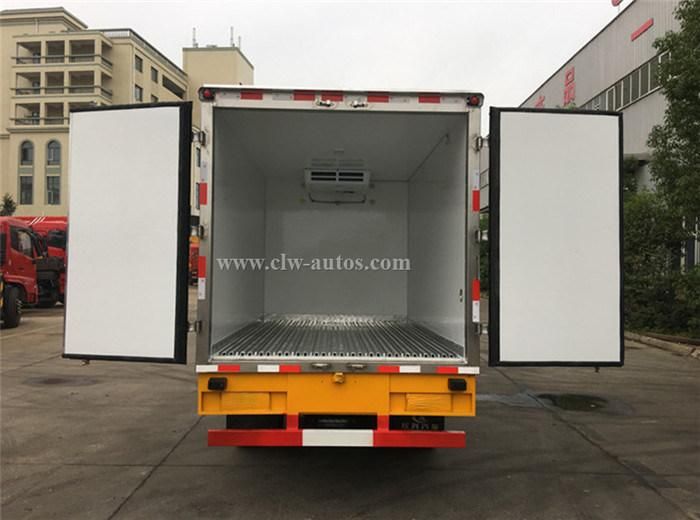

Chassis & preservation box body--standard material is glass fiber reinforced plastic, 8mm polyurethane insulation layer, Standard back open door and refrigeration unit;
Function: transport frozen foods (ice truck), dairy (milk truck) fruits and vegetables (fresh transporter) vaccine and drug transporter (vaccine truck), etc
Refrigerated Unit
-18 degrees
Product cycle
15-20 days
Warranty
12 months, from the date of supply
Optional Function:
Related Products:
ChengLi Special Automobile Corporation Limited, The CLW group, which was appointed by the Development and Reform Committee of China. ChengLi is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.
- Certificate: ASM, ISO, BV, SGS, CCC etc.

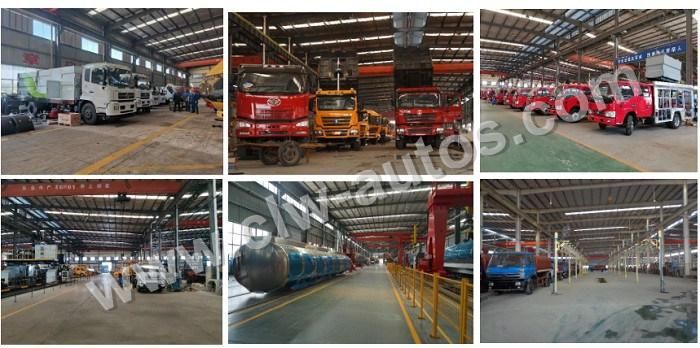

- 12 independents workshops.
- 1000 sets of equipment, 25 assemble lines.
- 300 senior engineers and technicians. About 8000 workers.
- 800kinds of LPG, trucks and semi-trailers.
- 20 years wholesale experience
- Turnover 250 million and Export 20million annually
- Turnover 2 billion trucks and semi-trailers annually.
- LPG/Truck Sold to 90 countries
- Cooperates DONGFENG,SINOTRUCK,ISUZU,FOTON,FAW,BEIBEN,ETC
Packaging & Shipping:
1.By cargo bulk shipment or ro-ro shipment .
2.By Flat Rack Container.
