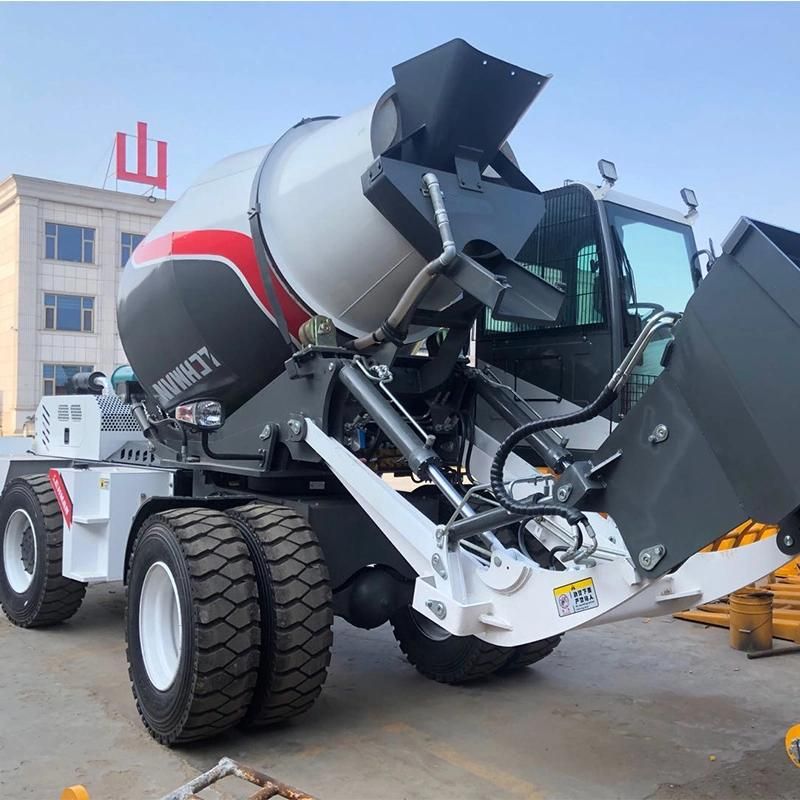

5800 Self Loading Concrete Mixer Truck with A/C
Shandong Lehman Construction Machinery Co., Ltd.- Certification：ISO9000, EPA, RoHS, CE
- Transmission Type：Automatic
- Emission Standard：Euro 4
- Displacement：2
- Payload：10t
- Fuel：Diesel
Base Info
- Model NO.：LM5800
- Drive Mode：4*4
- Maximum Horsepower：<200hp
- Condition：New
- Transport Package：40′h
- Specification：7220*2380*3460mm
- Trademark：SHANYI,LEHMAN
- Origin：Shandong, China
- HS Code：8474310000
- Production Capacity：5000sets,Year
Description
22
4*4 Four-Wheel Drive
Hydraulic torque converter gearbox, open hydraulic gear oil pump, and reverse gear control to control working speed and travelling speed.Axle and Tyre
Specially-made hub reduction axle on front/ rear axles, flange connection gearbox. Rear axle, oscillating(+-10°) Tyre:1680-20Water system
Two water supply system, from external water feeding, can be directly into the drum or water tank. The total capacity of two connected water tanks positioned opposite is 612L Visual flowmeter, the water intake of the roller by hand-control.Mixing and unloading
Double-cone drum with double-spiral mixing screws and convex bottom. The Geometrical volume of drum is 5800L The rotation speed of Drum is 15r/min. Drum rotation by means of a gear pump hydraulic motor, hand control valve in operating room and the behind of mixer machine. Unloading chute by means of one adjustable handle to control tilt. As a standard configuration, we can provide a chute extension unit.Loading
Loading arm can be equip with weighing sensor, Loading device with grab bucket and lifting arms controlled by double-acting hydraulic cylinders. Manual control of the feed inlet has a standard prompt function. Capacity:500L Times:5Maintenance and Oil filling
Fuel tank: 165L Total hydraulic system capacity:165L Engine oil:16L
