Concrete Mixer Truck Drum 5.5cbm Exported to Srilanka Market
Xiangtan Huaxing Material Co., Ltd.- Certification:ISO9000, CCC, CE
- Transmission Type:Automatic
- Emission Standard:Eruo 3
- Displacement:3.5
- Payload:20T
- Fuel:Diesel
Base Info
- Model NO.:5.5cbm mixer drum
- Drive Mode:6x4
- Maximum Horsepower:200-300hp
- Condition:New
- Material:St52
- Agitating Capacity:5.5cbm
- Top Feed Hopper Dimension:750*750mm
- MOQ:1PC
- Transport Package:Container
- Specification:5080*2250*2280
- Trademark:Huaxing
- Origin:Hunan, China
- Production Capacity:100PCS Per Month
Description
Basic Info.
Model NO. 5.5cbm mixer drum Drive Mode 6x4 Maximum Horsepower 200-300hp Condition New Material St52 Agitating Capacity 5.5cbm Top Feed Hopper Dimension 750*750mm MOQ 1PC Transport Package Container Specification 5080*2250*2280 Trademark Huaxing Origin Hunan, China Production Capacity 100PCS Per MonthProduct Description
Concrete Mixer Drum 5.5/6/8/9cbm>>>>Main Feature
- Multi Types of Chassis Match
- The upper can match with different Chassis of 2,3 or 4 axles
- The upper can be designed to match with different Chassis as requirement.
- Mixing Drum Structure
- The drum body and blades are made by quality wearable exclusive steel plate with light weight of Baosteel Q345B. And the drum is suit for transport both dry and wet materials.
- The surface welding adopt manipulator double welding enables the strength structure and long service life.
- Double pitch special designed blades ensure the fully mixing inside and low discharge surplus rate.
- Unique design of agitator inclined angle with the whole drum make the lower and stable center of gravity, this makes the driving more steady and discharging more smooth, and gains better traffic ability.
- Hydraulic System
- Closed circuit hydraulic system and constant hydraulic oil temperature controller
- Adopt world famous brand hydraulic pump, hydraulic motor, reducer and radiator. Also provide muti options for different requirement.
- Water Supply
- Pneumatic water supply system with large water tank which can wash different points including agitator drum, charging hopper and discharging hopper respectively.
- Rational layout and elegant appearance of washing pipes make the washing more convenient and rapid.
>>>> Specification
5.5CBM | |
Mixing Drum Parameter | |
Mixing drum material | 5mm Q345B |
Agitating capacity | 5.5m3 |
Drum overall dimension(with frame) | 5080*2250*2280 |
Discharging rate | ≥2m³/min |
Top feed hopper dimension | 750x750 |
Discharging rate | ≥1m³/min |
Residual rate | ≤1% |
Water supply | Water Pipe |
Water tank capacity | 200L |
Radiator | Chinese brand |
Reduction gear | Chinese brand |
Hydraulic pump | Interpump (Italy brand) |
Hydraulic motor | Interpump (Italy brand) |
Accessory | Radiator filter, Oil seal |

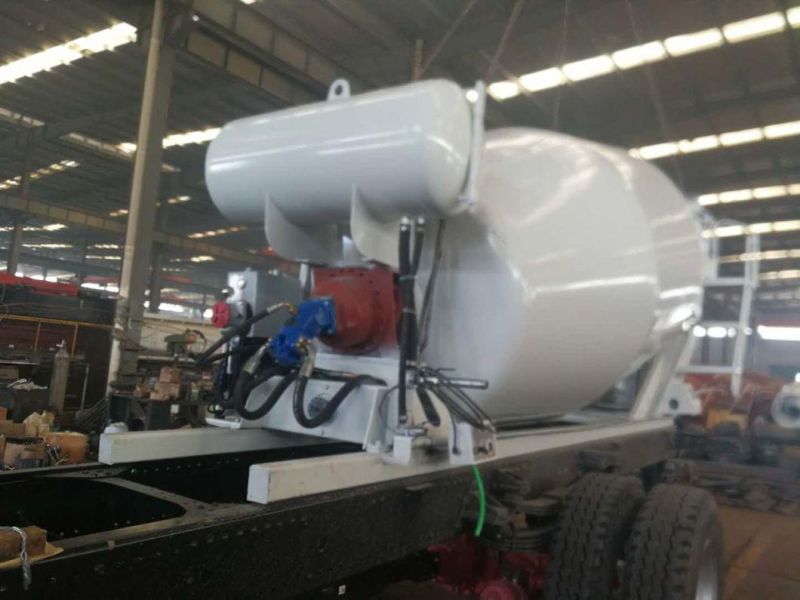

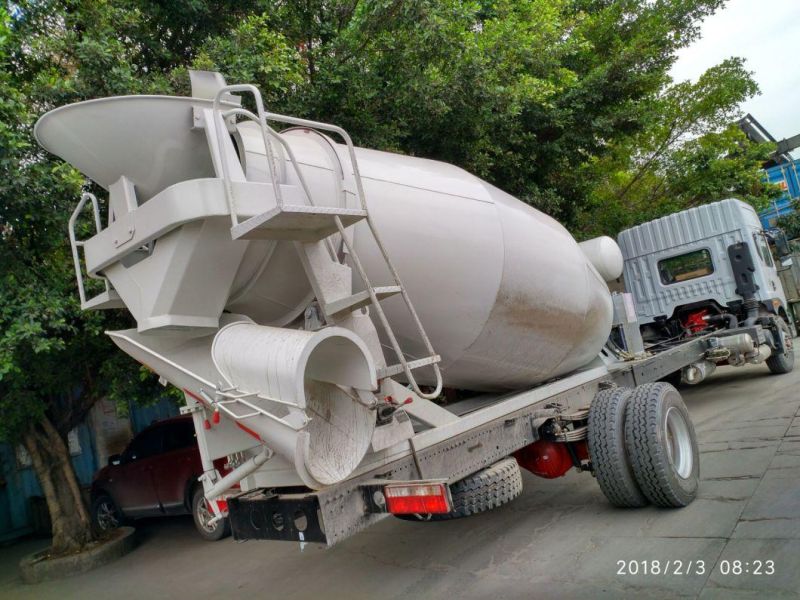

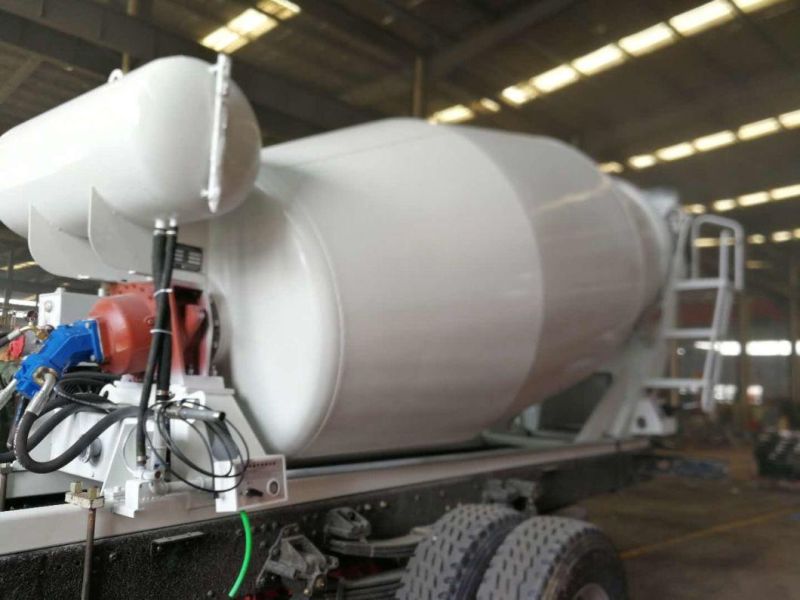

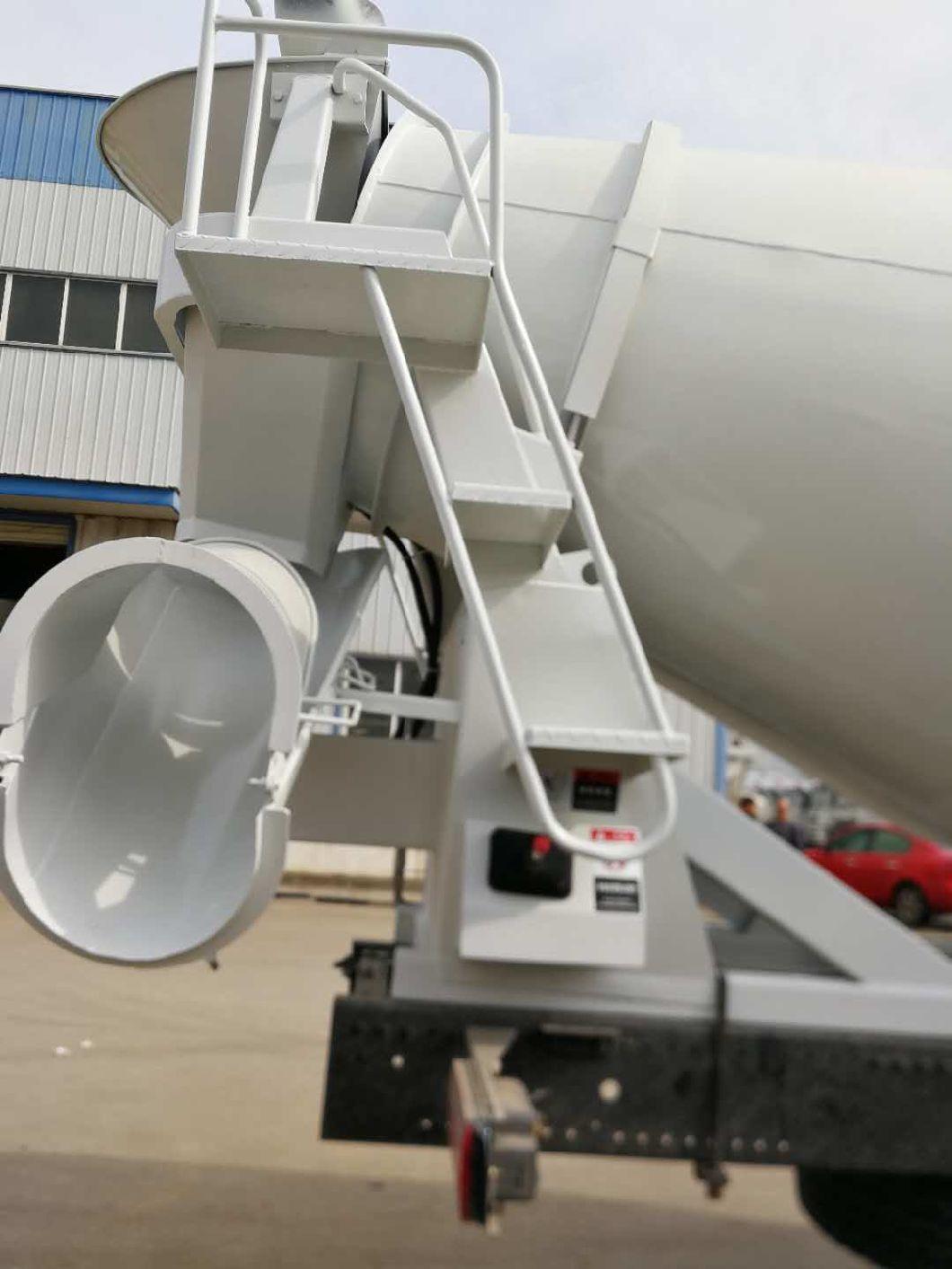

>>>> Product Image

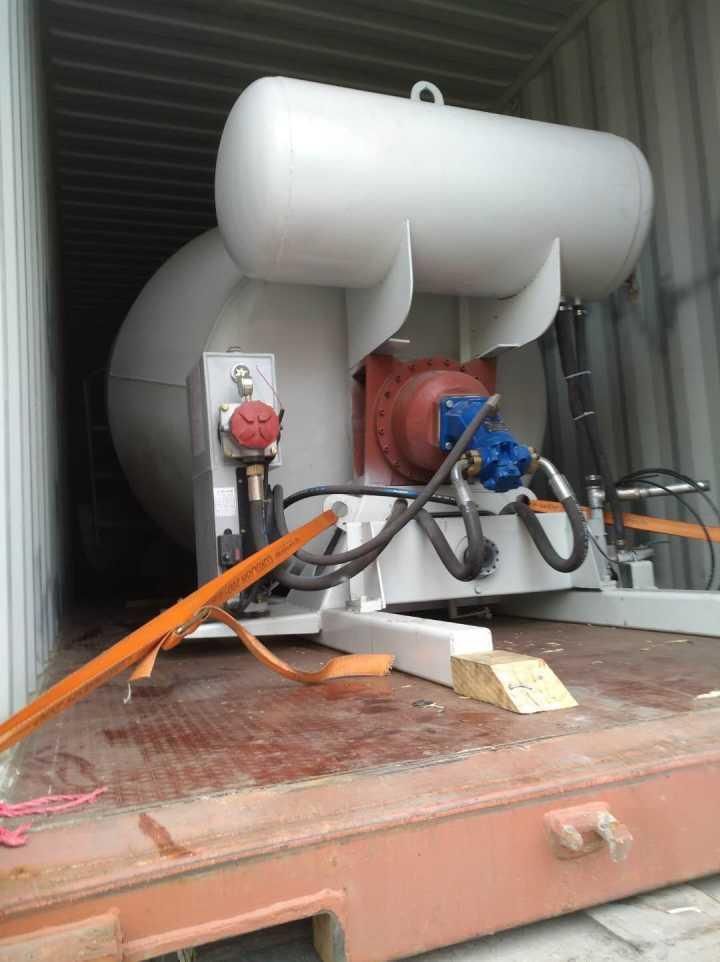

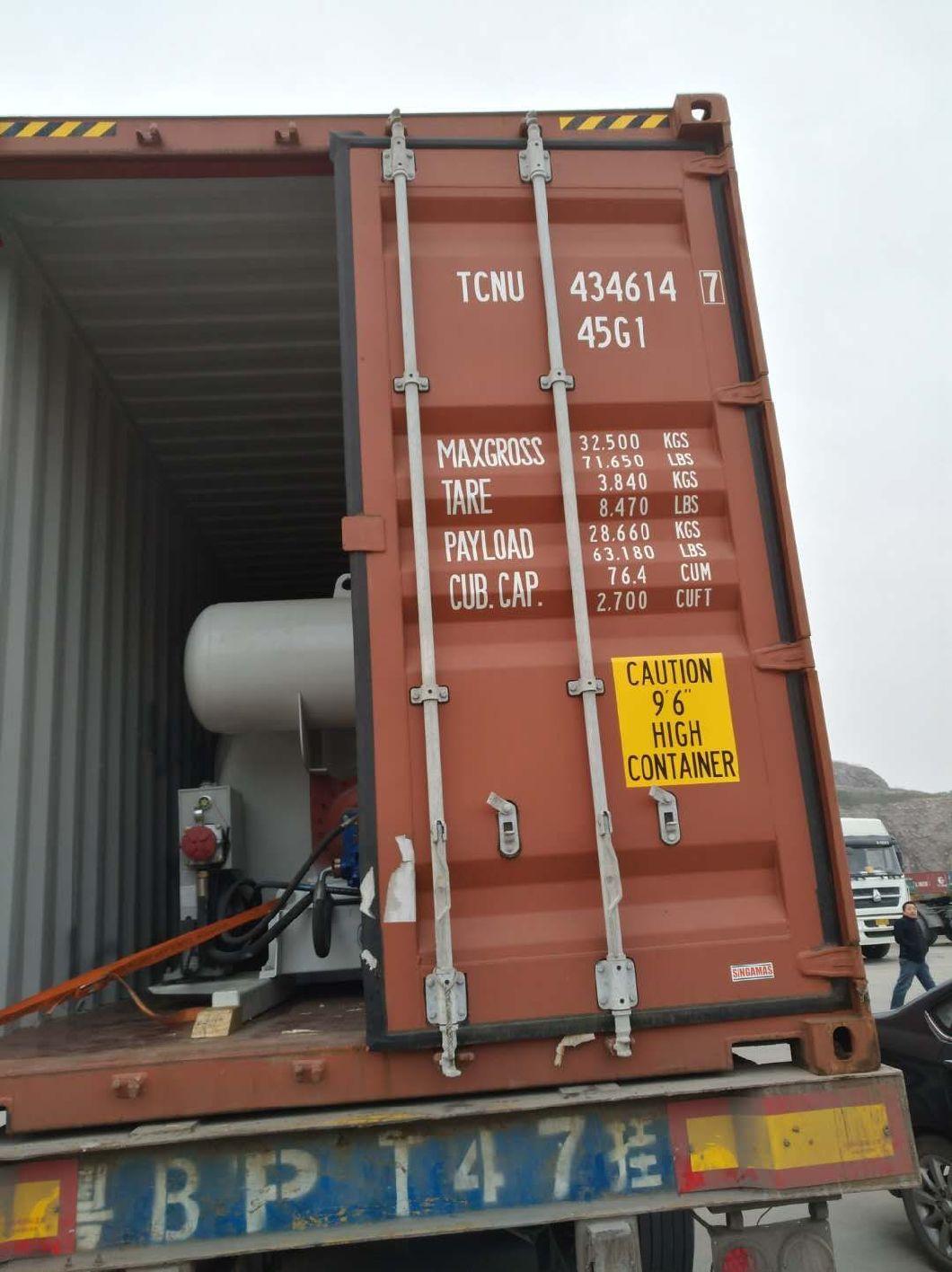

>>>> Delivery and Packing
