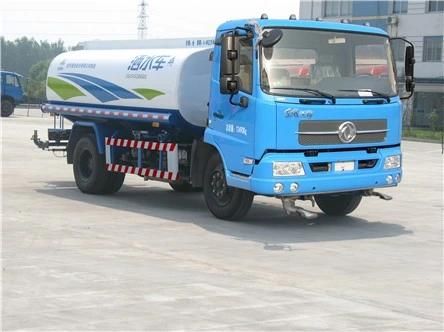

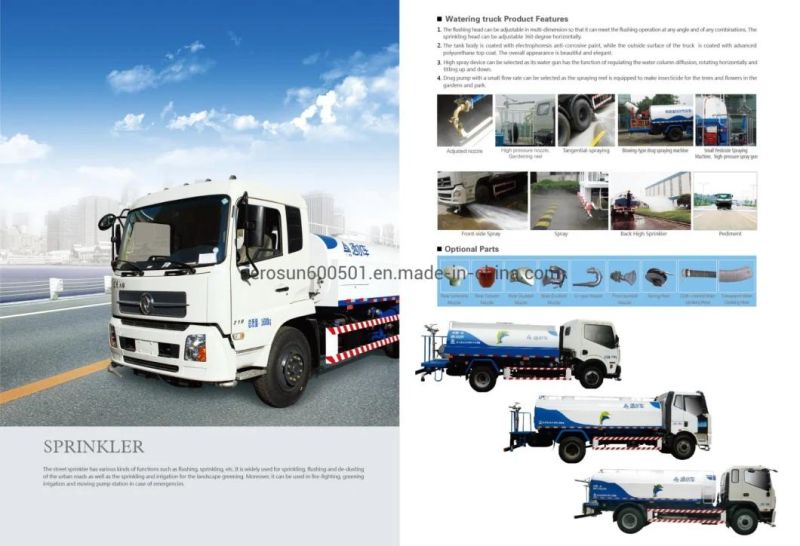

Aerosun 6.68cbm Cgj5122gss02 Sprinkler
Aerosun Corporation- Volume：5001 - 10000L
- Certification：ISO9000, CCC
- Emission Standard：Euro 4
- Transmission Type：Automatic
- Fuel：Diesel
- Condition：New
Base Info
- Model NO.：CGJ5122GSS02
- Trademark：Aerosun SanLi
- Origin：China
Description
1.Main Technical specifications
| Model | CGJ5122GSS02 |
| Overall dimensions (L×W×H)(mm) | 6965×2480×2710 |
| GVW(kg) | 12490 |
| Rated load(kg) | 6365 |
| Curb weight (kg) | 5930 |
| Rated capacity of tank (L) | 6680 |
| Approach/departure angle (°) | 13/14 |
| Chassis model | DFL1120B5 |
| Engine model | ISDe160 40, Euro 4 |
| Number of axles/axle base (mm) | 2/3500 |
| Displacement/power (ml/kw) | 4500/118 |
| Head of delivery/suction height | 110/6.5 |
| Watering width (m) | ≥14 |
| Watering speed (km/h) | 5~20 |
| Watering capacity (L/m²) | 0.5~2 |
| High spray height(m) | ≥30 |
2.2 Spraying, watering and maintenance of trees and gardens.
2.3 As a mobile pumping station.
2.4 Transporting function.
2.5 Emergent fire fighting.
2.6 Flush curbstone.
2.7 Flush isolation pile.
3. Main structure3.1 Chassis
The sprinkler adopts DONGFENG chassis, which has the advantages of large power and good overload performance.

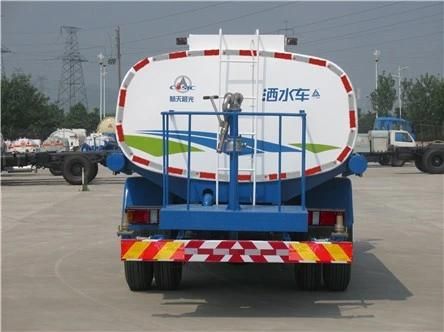

3.2 Water tank assembly
Water tank assembly is the main part of the shape of the sprinkler, consist of water tank, manhole and manhole cover, rubber tube (box), liquid level gauge components.
The water tank is a welded steel vessel, usually made of carbon steel or stainless steel. The tank shell portion welded by 3mm Q235-A carbon steel plate, the head pressed by 3mm Q235-A carbon steel plate, the tank body cross-section is rectangular. The water tank is equipped with a lateral breakwater to reduce the impact of liquid on the tank. Anti- vortexing suspension is set at the outlet at the bottom of the tank to prevent vortexing when water flows out and ensure the flow rate. Fence and manhole set at the top of water tank, easy to clean and maintain the internal tank. In addition, the tank body is also set with a level gauge and overflow pipe, the level gauge can be convenient to observe the height of the injected water in the tank, overflow pipe is set to prevent overflow, remind the operator to stop filling, ensure safety and operability.
3.3 water pump
The 65QZ-40/45N water pump is a special water pump for sprinkler, which is produced by Hangzhou Weilong Pump Industry Co., Ltd., a professional manufacturer of water pumps. With excellent product performance, quality and service life, it has been widely recognized by users and enjoys high popularity and reputation in China.
3.4 Valve
The ball valve produced by Changzhou Kaitong Co., which is specialized in producing accessories fro oil tanker and water tanker pipe, adopts pneumatic control, easy to operate and reliable in performance.

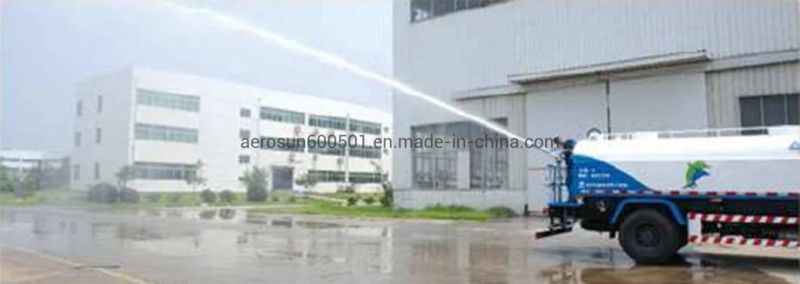

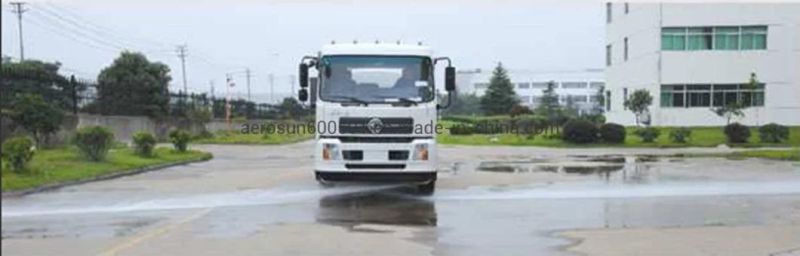

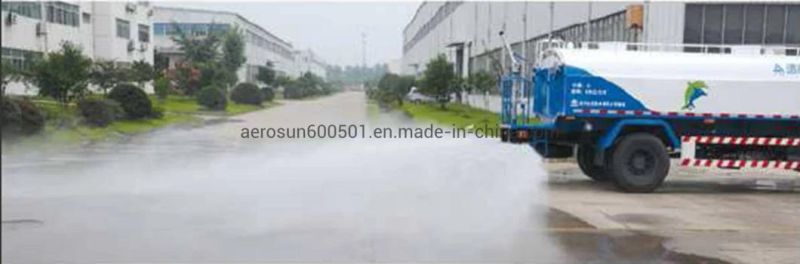

3.5 Flush head, sprinkler head, high spray gun
This product is equipped with the three-curved universal duck-billed blunt head, can be adjusted to any direction, easy to use, the surface using galvanized processing. The sprinkler head can be adjusted in any direction within 360° of the horizontal. The high spray gun uses the GPYL type, which is used in domestic sprinkler truck.
3.6 pipeline
The vehicle pipeline mainly uses the national standard No. 20 seamless welding carbon steel pipe, compared with the common market sprinkler galvanized pipe, has high strength, superior welding performance, corrosion resistance, and in low temperature conditions will not be frozen crack advantages. In addition, the sprinkler set up a filter screen in the pipeline, the filter screen set up in the pipeline before the water pump, filter out the flow of debris in the tank, to prevent the pump blocking. In the lowest part of the pipeline, there is a water release joint. In winter, it is convenient to release the water in the pipeline to prevent the water in the pipeline from freezing and blocking the pipeline.
