• Model NO.：CLW5554HDJ
• Fuel：Diesel
• Drive Wheel：4×2
• Horsepower：150-250hp
• Condition：New
• Chassis Brand：Dongfeng,Sinotruk HOWO,Foton,Shacman
• Extinguishing Agents：Water, Foam
• Key Parts：Pump and Fire Gun
• Accessories：Standard Configure
• Purpose：Fire Fighting Truck, Emergency Rescue
• Flow Rate of Fire Monitor：60L,S 1.0MPa
• Water Pump：Chinese or International Brand
• Material：Carbon Steel,Stainless Steel
• Fire Fighting Pump：Chinese or International Brand
• Fire Fighting Monge：Chinese or International Brand
• Throw Range：Water 55m, Foam 50m
• Logo：Customized Design
• Painting：Customized Design
• on-Site Training：According to Client Request
• Warranty：1 Year
• Transport Package：Bulk Ship, RO-RO
• Specification：8cbm, 8000liters, 8000L
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909990
• Production Capacity：300 Units Per Month

Basic Info.

Model NO. CLW5554HDJ Fuel Diesel Drive Wheel 4×2 Horsepower 150-250hp Condition New Chassis Brand Dongfeng/Sinotruk HOWO/Foton/Shacman Extinguishing Agents Water, Foam Key Parts Pump and Fire Gun Accessories Standard Configure Purpose Fire Fighting Truck, Emergency Rescue Flow Rate of Fire Monitor 60L/S 1.0MPa Water Pump Chinese or International Brand Material Carbon Steel/Stainless Steel Fire Fighting Pump Chinese or International Brand Fire Fighting Monge Chinese or International Brand Throw Range Water 55m, Foam 50m Logo Customized Design Painting Customized Design on-Site Training According to Client Request Warranty 1 Year Transport Package Bulk Ship, RO-RO Specification 8cbm, 8000liters, 8000L Trademark CLW Origin Suizhou, China HS Code 8705909990 Production Capacity 300 Units Per Month

Product Description

8000L Dongfeng TianJin 4x2 Water tank Fire rescue truck

Product Description
Fire fighter truck, which is also called water fire engine, water foam fire truck, fire fighting equipment, fire appliance truck, foam fire tanker, water foam pumper, light rescue apparatus, fire fighting vehicle, foam discharging truck, foam tanker fire truck  is a special vehicle designed primarily for fire fighting operations  and to extinguish fire efficiently to prevent fire spread, reducing the loss caused by fire maximumly.

Fire Fighting Trucks can be divided into several types:
1--According to vehicle size, there are mini fire fighting truck,light fire fighting truck,medium fire fighting truck, heavy-duty fire fighting truck.
2--According to chassis drive type, there are 4X2 or 6-wheel  fire fighting truck, 6X4 or 10-wheel fire fighting truck, 8X4 12-wheel fire fighting truck and off-road type 4X4, 6X6 fire fighting truck for military use.
3--According to chassis brand, there are ISUZU fire fighting truck, Dongfeng fire fighting truck,  Foton fire fighting truck, FAW fight fighting truck, Shacman fire fighting truck, sinotruk fire fighting truck, Mercedes fire fighting truck, MAN fire fighting truck,Scania fire fighting truck and so on.
4--According to fire extinguishant,there are water tank fire fighting truck, dry powder fire fighting truck, water/foam fire fighting truck
5-There are also fire rescue truck with special purpose as follows,
--Foam supply fire truck;
--Compressed air supply fire fighting truck;
--Water tower fire truck ;
--Earthquake rescue fire truck;

Specification

Description	Parameters
Overall Dimension(mm)	8250×2480×3310
Tank Dimension (mm)	3060×1450×1340
GVW	15550kg
Engine Model	B180 40
Type	Vertical six cylinder, water cooled four stroke, supercharged medium cooling, electric controlled high pressure common rail engine
Engine Power	132kW
Wheelbase	4700mm
Driving Type	4X2
Front/Rear overhang(mm)	1430/2070
Axle load(Kg)	5750/9800
Max.speed	90km/h
Gear Box	5 forward speed range gearbox, one reverse speed.
Emission Standard	5900 ml
Communication	FM/AM radio With USB,  Optional VHF radio with Microphone
Tires	10.00-20,10.00R20,9.00-20,9.00R20,275/80R22.5 16PR
Passengers	2+4
Fire pump rated flow	60L/s@1.0Mpa;
water monitor rated flow	48-64L/s
Water monitor range	Water range≥60m,foam≥55m
Approach angle	20°
Departure angle	13°
Water tank capacity	8CBM
Fire pump model	CB10/60
Pressure gauge	0-1.6 Mpa, 0-2.5 MPa
Water monitor	PL48

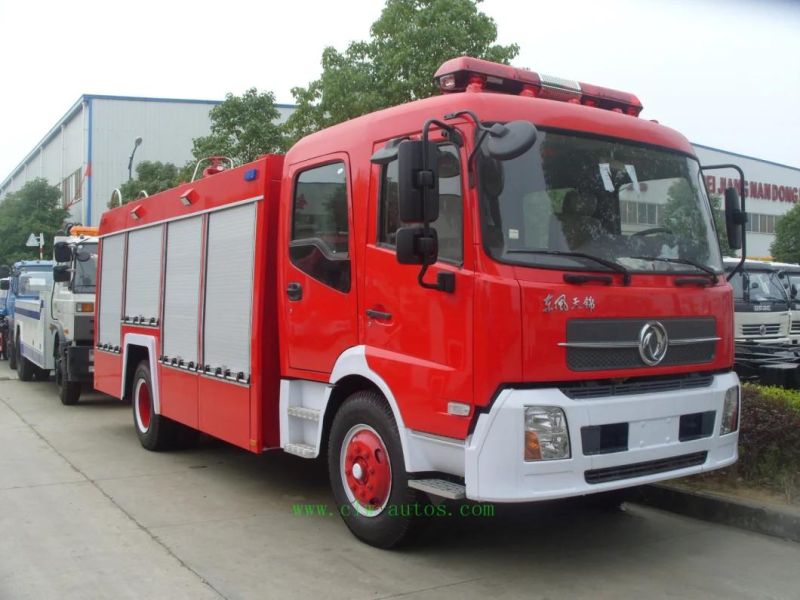

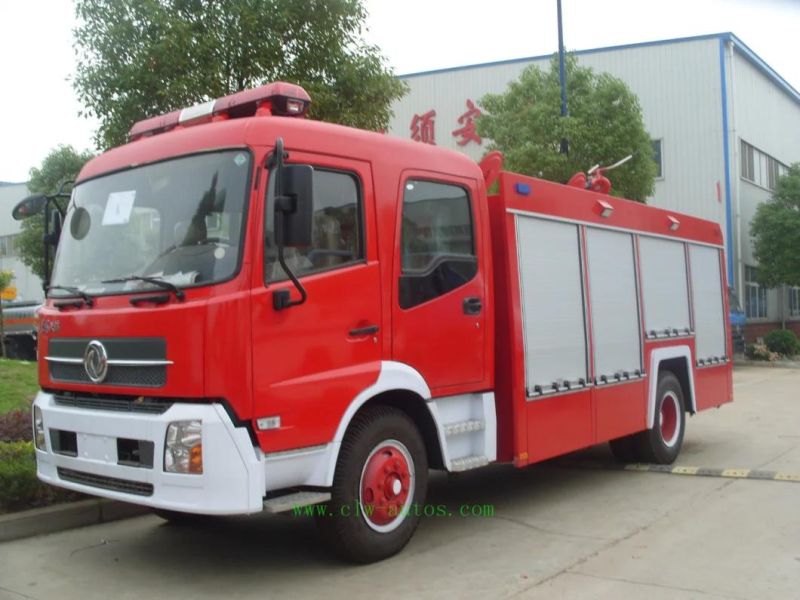

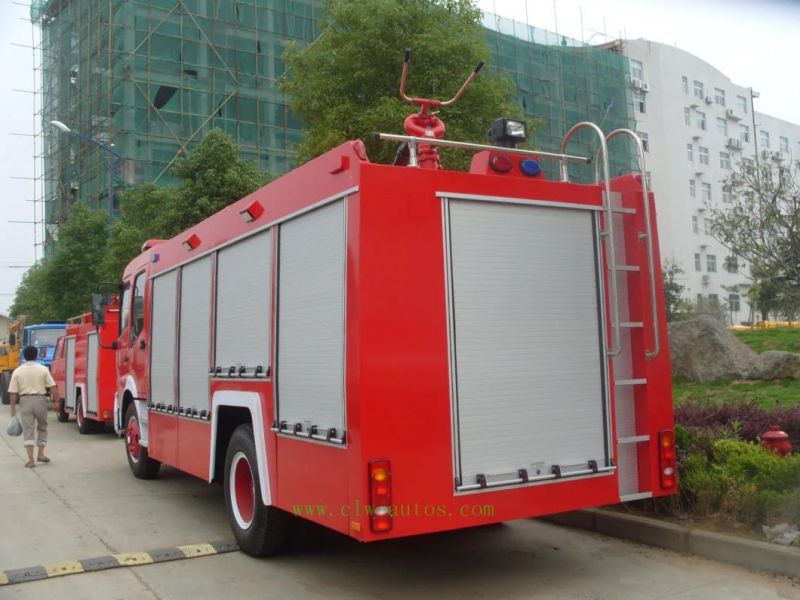

Reference Picture

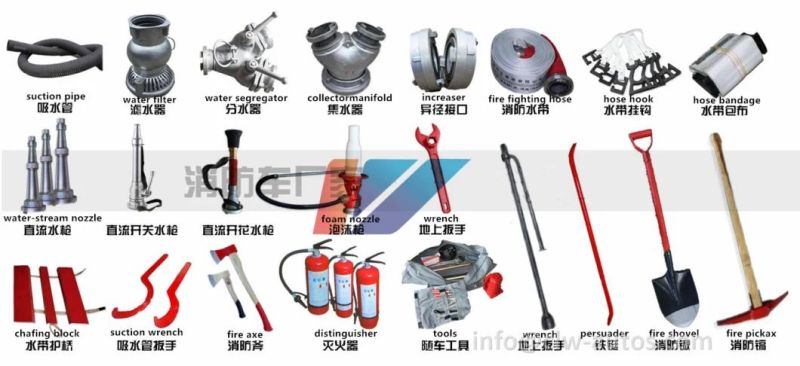

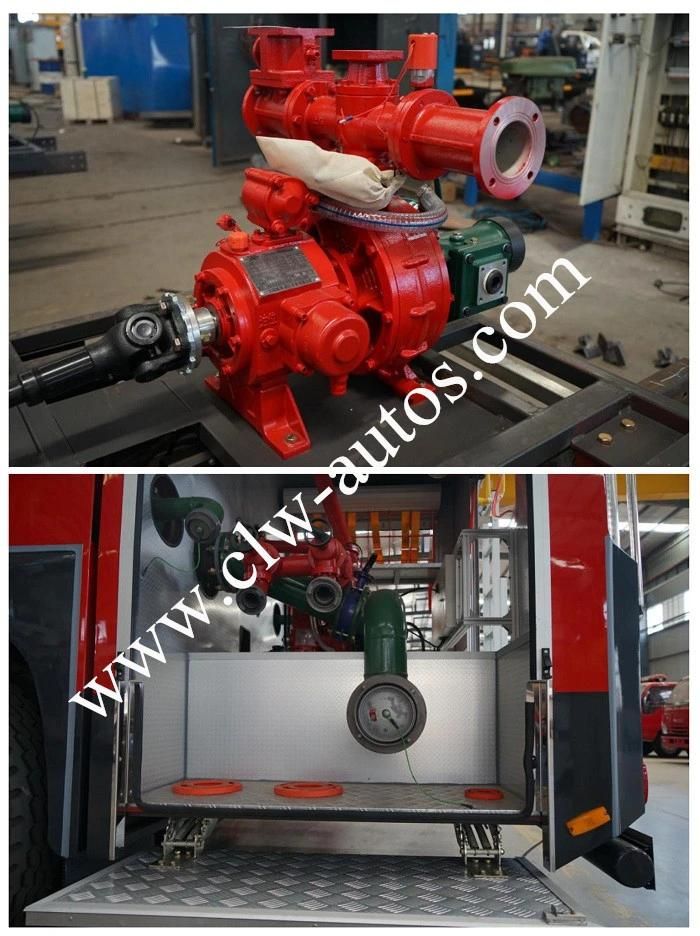

Equipment come with fire trucks

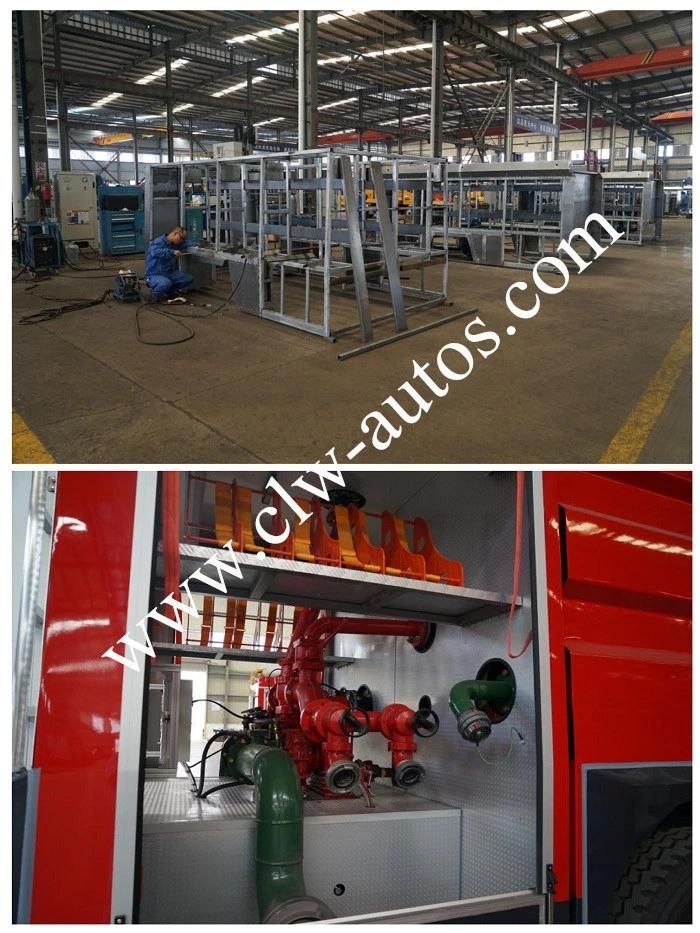

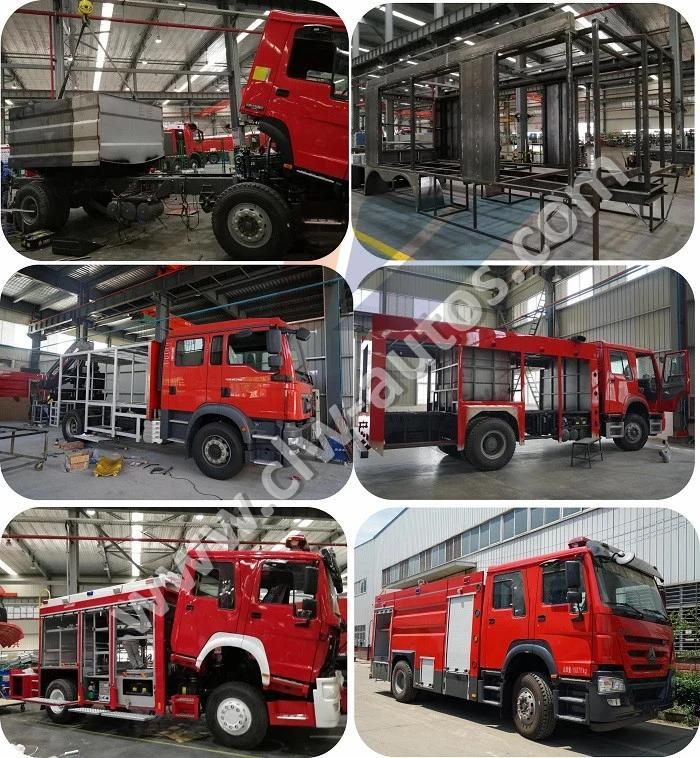

Production Procedure

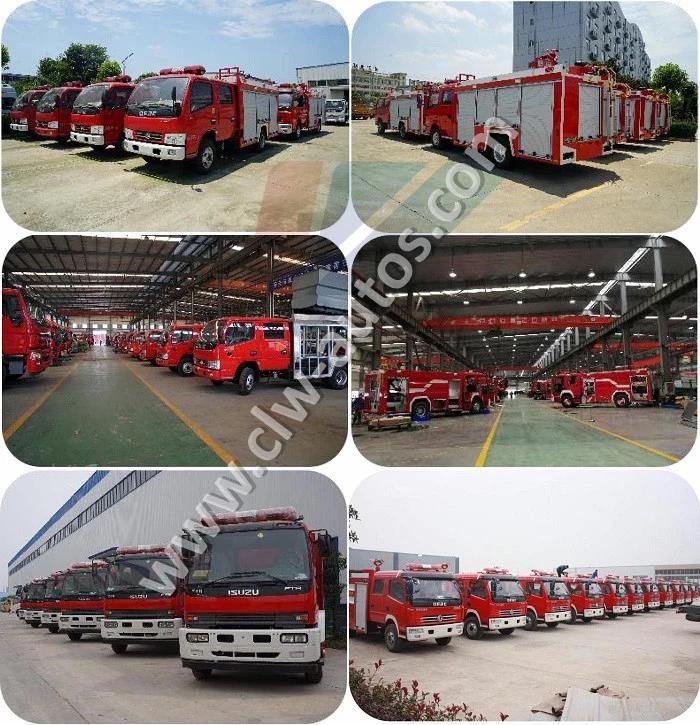

Successful Case






Customer Inspection

Overseas Exhibition and After-sales Service


Contact Sidney for more details
