• Model NO.：CLW5698VN
• LED Tube Core Type：SMD
• Self-powered：Self-powered
• LED Screen Type：P3, P4, P5, P6
• Power Supply Mode：Own Generator-powered
• Chassis Brand：Isuzu, Forland, Foton, JAC, etc.
• Generator Fuel Type：Diesel,Gasoline
• Generator：15kw, 18kw, 20kw, 25kw, 30kw, 35kw, etc.
• Picture Color：Full Color or Monochrome
• Screen Type：Indoor or Outdoor Screen
• Brightness：5000-7000CD,M2
• Lifting System：Optional
• Mobile Stage：Size Optional
• Delivery Time：25 Days
• Warranty：1 Year
• Color and Logo：Customized
• Transport Package：Naked
• Specification：5250*2200*3050mm
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8701909000
• Production Capacity：500PCS,Month

General Technical ParametersOverall Dimension5995×2040×2990(mm)Gross Vehicle Weight4495(Kg)Curb Weight4365(Kg)Chassis SpecificationChassis parametersChassis BrandFOTONCabinSingle, Left Hand Driving, with A/CEngineModel4 CylindersPower72KW/98HPEmission standardEURO 3Displacement2.771LFuel typeDieselGearbox5 Forward & 1 Reverse GearFront and Rear Axle load2.5T/4.8TWheel base3360(mm)Overhang( Front/Rear)1015/1620(mm)Angle(Approach/departure)24/12 (°)Brake SystemOil brakeSteering GearPower AssistantTire700-15, 6 Pieces with 1 Spare TireMaximum speed98(km/h)SuperstructureLED ScreenPixel

Outdoor full colour display screen

P6

Dimension(LxW)(mm)

Both side: 3840*1792

Rear:1280*1440

Description

Screen lift on both sides

Waterproof, shake-proof, high brightness, long life

General configuration

1. OUMA brand,Silent diesel generator, 15KW

2. One set industrial computer with control system

3. Sound system: Loudspeaker 4pcs, amplifier 1pc

4. Internal and external electrical distribution box.

5. Circulating ventilation and cooling systems.

6. 5CM composite steel frame body

7. Aluminum patterned floor

Remarks

Equipped with Hydraulic stage

The color of the superstructure is oprional.



Product Diagram

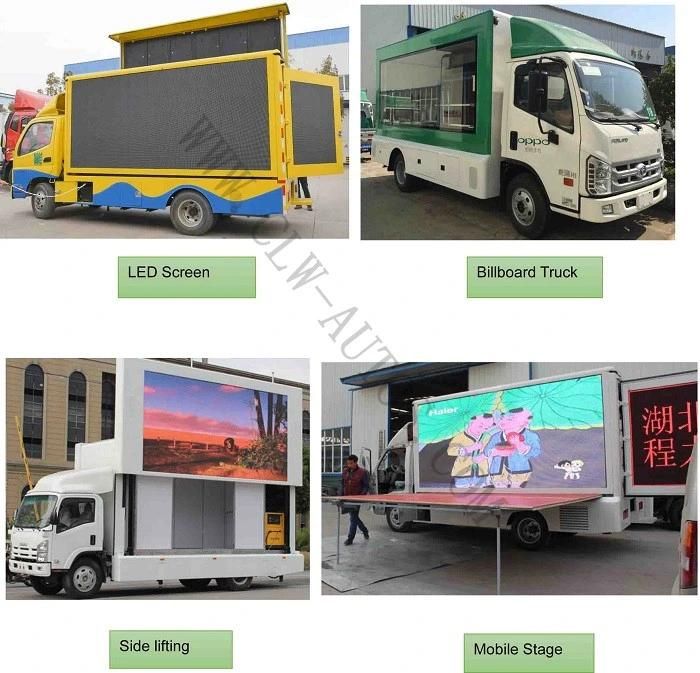

Optional Parts





Production Process

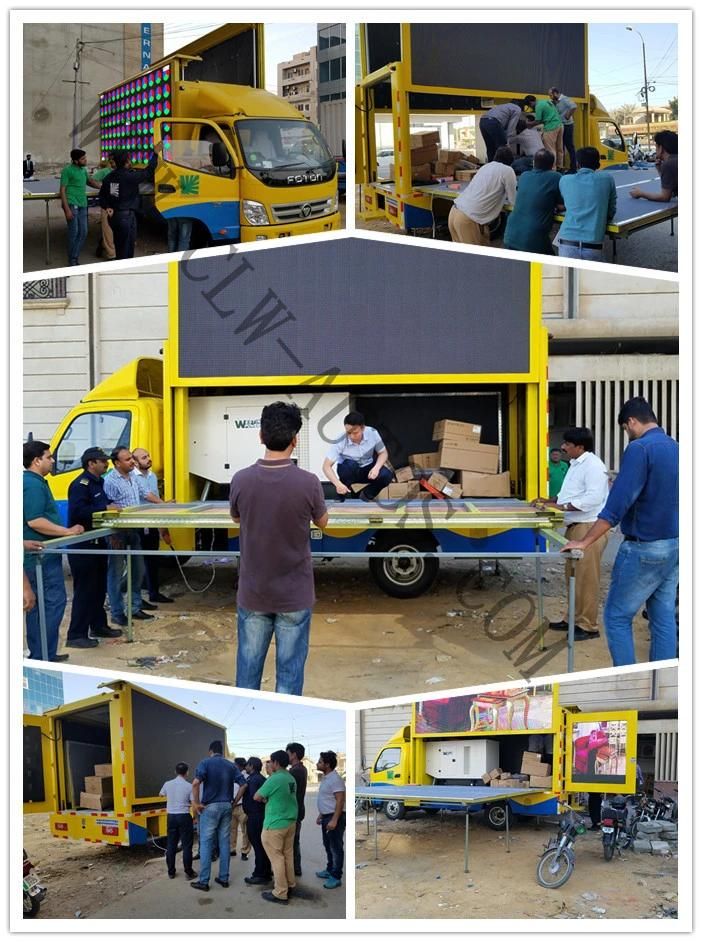

Overseas Training
