• Model NO.：CLW1031CVA2
• Brand：FAW
• Condition：New
• Transport Package：Wax Covered
• Specification：3 TONS
• Trademark：CLW brand
• Origin：China
• HS Code：8704230030
• Production Capacity：5000 Units,Year

[Main technical parameters]

Total mass(Kg)

4495

Tank volumn(m3)

Rated mass (Kg)

Overall size(mm)

5995x2300x2220

Cube weight(Kg)

3715

Cargo size(mm)

××

Approach/Departure angle (°)

20/12

Front/rear suspension (mm)

1040/1647

Number of axles

2

Wheelbase(mm)

3308,2800

Axles load(Kg)

1800/2695

Max speed(Km/h)

99

Comments

Lifting mass: 650kg; optional rear railing, optional rear bracket; optional cab with chassis; side protection material material: Q235, connection: welded and bolted; rear lower guard due to work Device interference can not be installed, it is exempted.

[Chassis technical parameters]

Chassis model

EQ1041SJ3BDF

Chassis name

Cargo chassis

Overall size(mm)

5845,5090×1980×2160,2040

Number of tires

6

Approach/Departure angle (°)

20/18

Tire specifications

7.00-16 8PR,7.00R16 8PR

Number of springs

6/6+5

Front track (mm)

1503,1485,1519

Fuel type

diesel

Rear track (mm)

1494

Chassis emission standards

EURO V

Engine Model

Engine manufacturer

Displacement(ml)

Power(Kw)

CY4BK551
YC4FA115-50
4B2-115C50
ZD30D13-5N
D28D11-5DA
4DW93-84E5
YN27CRE1
YN33CRE1

Dongfeng Chaoyang Chaochai Power Co., Ltd.

Guangxi Yuchai Machinery Co., Ltd.

Anhui Quanchai Power Co., Ltd.

Dongfeng Light Engine Co., Ltd.

Dongfeng Light Engine Co., Ltd.

FAW Jiefang Automobile Co., Ltd. Wuxi Diesel Engine Factory

Kunming Yunnei Power Co., Ltd.

Kunming Yunnei Power Co., Ltd.

3707
2982
2545
2953
2771
2540
2672
3298

75
85
85
96
85
64
70
85

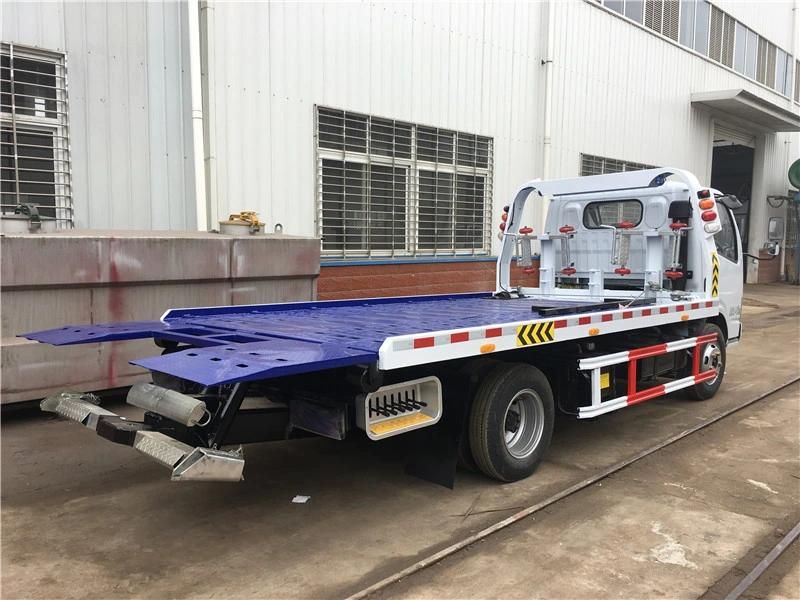

Top loading configuration
Flat: Size: 4.3+0.7 meters long*2.3 meters wide. 5mm pattern plate or cold stamping plate. Can carry 4 tons.

Back-loading function: The flat panel can be extended obliquely and touch the ground at a small angle. The carried vehicle can be directly opened on the flat surface, or it can be pulled to the flat surface with a hydraulic winch, or can be hung on the flat surface with a crane, and the flat panel can be retracted. Return to the original position and complete the loading.

Support arm: 2 support arms, stretching 1.5 meters. Take 2 tons.

Lifting function: The supporting arm can be retracted and lifted to drag the damaged vehicle from the front or rear axle, wheel, leaf spring, frame, etc.

Traction function: Traction of damaged vehicles that can be lifted on one end. It is also possible to tow the accident vehicle with a tow bar on an undamaged vehicle axle.

Hoisting: 4 tons of hydraulic hoisting, 21 meters of steel rope. Drag and drop function: The vehicle can be dragged onto the tablet.

Others: Engineering warning lights, shouting microphones, tight ropes, auxiliary trolleys, forks, trailer hooks, spare tires, vehicle maintenance tools, etc. Hydraulic components (multi-way valve, steering valve, hydraulic lock) all imported products!
