Aerosun EV 9cbm Cgj5188tcaeqbev Kitche Side-Loaded Garbage Compactor Truck
Aerosun Corporation- Type：Compactor
- Certification：ISO9000, CCC
- Volume：6001-10000L
- Emission Standard：EV
- Transmission Type：Automatic
- Payload：20T
Base Info
- Model NO.：CGJ5188TCAEQBEV
- Fuel：Diesel
- Models：Large
- Usage：Dump, Swing Arm Type, Sealed, Hang Barrel Type, Arm Type, Compression Type, Eat Hutch Type
- Condition：New
- Trademark：Aerosun SanLi
- Origin：China
Description

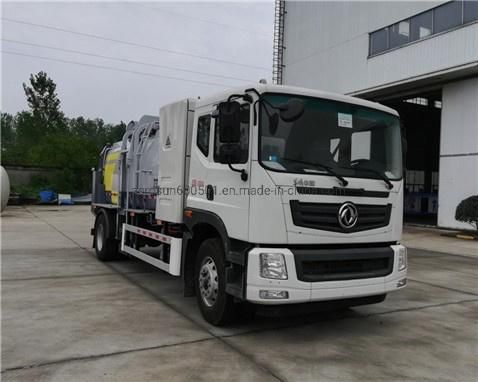

Aerosun CGJ5188TCAEQBEV EV kitchen side-loaded garbage compactor is a kind of large capacity, high efficiency, no leakage, high degree of automation for collecting kitchen waste and transportation equipment, widely used for collecting and transporting leftovers in hotels, canteens, schools and residential areas etc.
Its tank body is made of high-quality stainless steel. The lateral of the tank body is equipped with garbage lifting device. The 120L, 240L standard dustbin can be installed on the bucket mechanism, and the control handle can realize the self-loading function of kitchen waste. This vehicle adopts mechatronics and hydraulic integration technology to realize intelligent loading.
Push plate compression device is installed in the tank body, which can separate solid from oil and water in the kitchen waste in the process of collecting kitchen waste, and slightly compress the waste to maximize the loading. The whole process can be easily completed by only one person operating the switch, which greatly reduces the operator's labor intensity and improves the working environment.

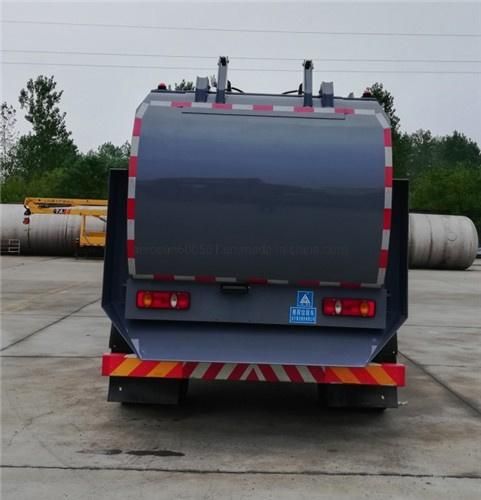

When the garbage inside the tank body needs to discharge, the back door can be opened, thoroughly clean by pushing garbage from front to back. Open the drain valve below the tank to drain the oil and water in the settling tank.Notice: It is strictly prohibited to collect building garbage and industrial metal garbage.
1.Main Technical Specifications
| Product model | CGJ5188TCAEQBEV |
| Chassis model | EQ1180GTZEVJ1 |
| Engine model | TZ370XS-LKM1101, EV |
| Rated power | 160kw |
| Total voltage | 540.96V |
| Nominal capacity of Power battery Assembly | 404Ah |
| Total energy Storage capacity of energy storage Device | 218.55kWH |
| Overall Dimensions(L×W×H) | 8445×2500×3050mm |
| Gross vehicle weight | 18000kg |
| Curb weight | 10625kg |
| Rated load | 7180kg |
| Wheel base | 5300mm |
| Max. speed | 89km/h |
| Effective carriage volume | 9m3 |
2. Advantages and Characteristics
2.1 With collection, transport, discharge and other functions. Beautiful appearance, generous.
2.2 High degree of automation, the entire operation process, only one person to operate the switch or handle can be easily completed.
2.3 The back door is hydraulic locked and sealed with sealing strips, which can effectively prevent the leakage of sewage during compression and transportation and effectively avoid secondary pollution. the same one operating switch for locking and closing the back door, to prevent misoperation caused by failure to seal or damage.
2.4 Install the import electronic control hydraulic lock on the oil cylinder for opening and closing of the back door, the back door will drop only when the electricity is on, prevents the back cover to fall suddenly, at the same time installed the safety support pole, the electronic and the artificial anti-landing combination, greatly improved the vehicle safety performance.
2.5 Sewage tank is provided at the bottom of the tank body for collecting sewage in kitchen waste. The sewage tank is provided with a cover plate to facilitate the internal cleaning of the sewage tank.
2.6 Push plate discharging, no convex platform in the rear of the push plate, eliminating garbage stacking and blocking, reduce the workload of workers unloading.
2.7 Controlled by the electrical system, the lifting mechanism cannot be operated when the push plate is not recovered in place. It can effectively prevent garbage dumping to the front of the push plate due to misoperation.
2.8 Equipped with emergency loading switch, it can be used in an emergency when the vehicle cannot be loaded normally. After the work is completed, the vehicle can be repaired to ensure the smooth completion of the work.
3. Optional components
3.1 Stainless steel clean water tank and high pressure cleaning machine can be installed for cleaning vehicles. After the operation of the vehicle, if you want to clean the vehicle, you can turn on the cleaning machine switch and use the high-pressure spray gun to clean the vehicle and the ground.
3.2 Rear View Camera and GPS.
