• Fuel：Diesel
• Drive Wheel：4×2
• Brand：Dongfeng
• Models：Medium
• Usage：Swing Arm Type
• Condition：New
• Engine：190HP Cum Mins
• Axle：5ton Front, 10ton Rear
• Gearbox：8 Forward & 1 Reverse
• Brake System：Air Brake
• Tire：10.00-20, 10.00r20
• Container Box：10cbm
• Material：4mm Bottom, 3mm Side
• Painting：Anti Corrosion Paint
• Hydraulic System：Oil Tank & Cylinder
• Swing Arm：2 Unit Steel
• Valve：Multi-Valves
• Skip Loader：5cbm, 6cbm, 8cbm
• Landing Leg：2 Unit Landing Leg
• Hopper Shape：Square, Triangular, etc
• Hopper Connection：2 Strong Chain
• Transport Package：Naked Pack with Wax
• Specification：5Ton ~ 7Ton
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

General Technical ParametersOverall Dimension7370X2470X3330 (mm)Gross Vehicle Weight12490(Kg)Curb Weight6295(Kg)Chassis SpecificationChassis BrandDongfeng145Drive model4*2CabinSingle Row, LHD, with air condition.Number of Passengers3EngineModelB170-33/170HP, 4-stroke direct injection , 6-cylinder in-line, turbocharged intercooled, withABS.Power125KW/170HPEmission standardEURO 3Displacement5900(ml)Fuel typeDieselGearboxFast 8JS85E, 6Forwards & 2Reverse, manual operation, with power steering.Brake SystemOil breakWheel Base3950mmFront/Rear Axle Loading4990/7500(Kg)Approach/Departure Angle30/21(°)OverhangMechanical Suspension, 9/11+8Tire9.00-20, 6pc with 1 spare tireMax Driving Speed90(km/h)Upperstructure SpecificationGarbage HopperDimension3700×1850×1400mmStandard ConfigurationWith one garbage bin, with hydraulic rear outriggerVolumeGround type, 10CBMLoading Capacity6TonThickness5mm, Carbon Steel Q235BDump typeHydraulic cylinder lifting and self-loadingDump angle≥45°Hydraulic system pressure≤16MpaProtective MaterialQ235A Carbon SteelControlling WayThree-way hydraulic control valveOther Configuration

1. Electronically controlled valve, trash bin type, trash bin quantity, etc.

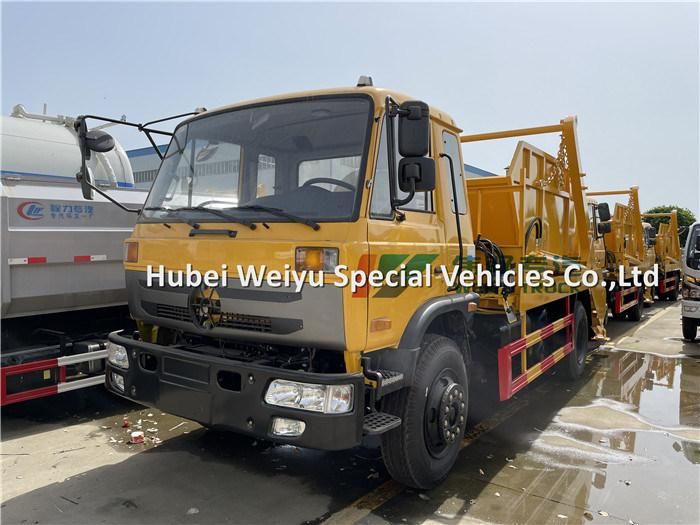

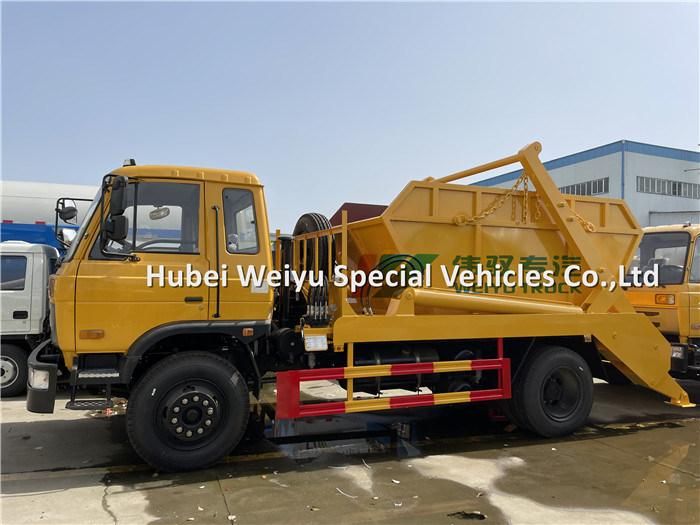

   Product Show

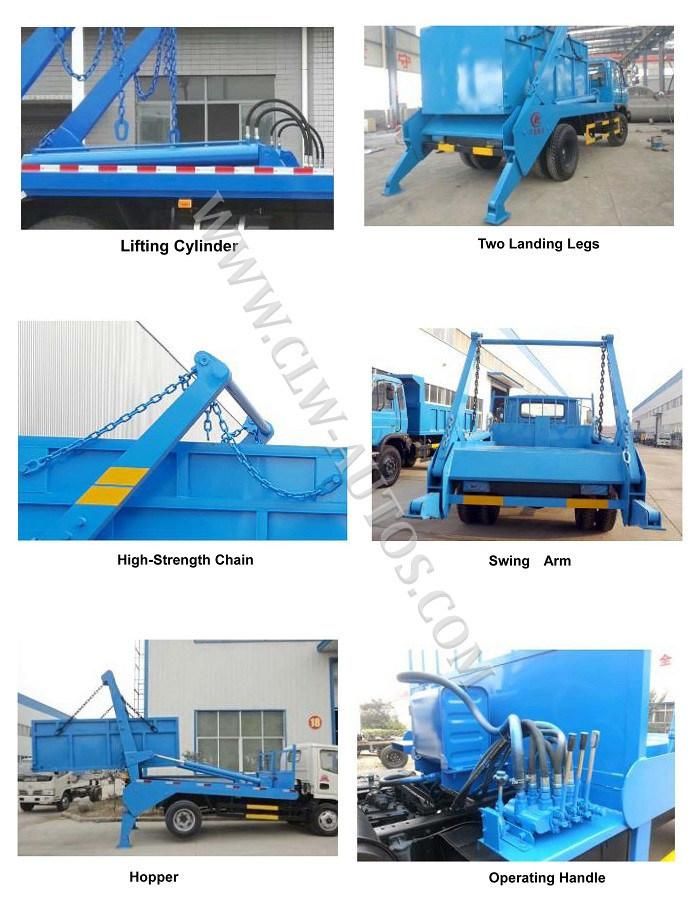

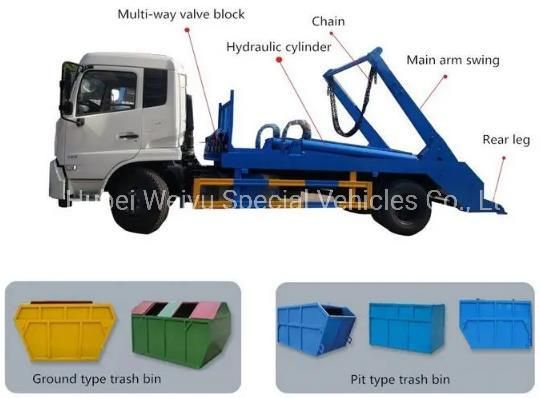

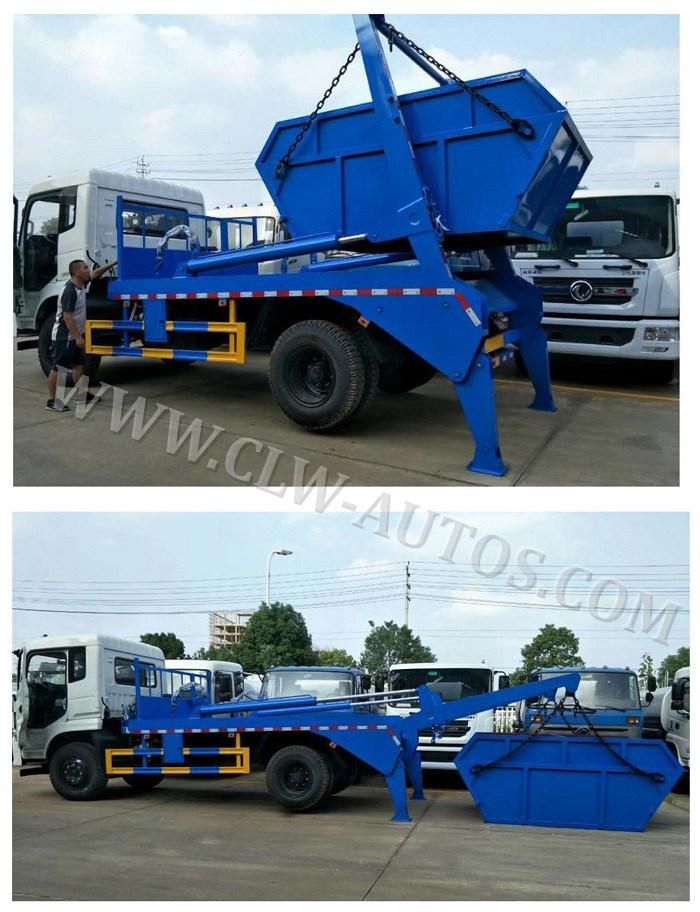

   More details for swing arm garbage truck
