5000liters Stainless Steel Material Waste Dust Cleaning Truck Vacuum Cleaner Truck Automatic Street Sweeping Truck
Hubei Weiyu Special Vehicles Co., Ltd.- After-sales Service：Engine; Gear Box; Driving Axle etc.
- Warranty：1 Year
- Type：Pure Suck-type
- Certification：ISO9000, CCC
- Transmission Type：Manual
- Emission Standard：Euro 3
Base Info
- Model NO.：CLW583UTE
- Fuel：Diesel
- Payload：5t, 8t, 10t
- Use：Stainless Steel
- Cleaning Process：Cold Water Cleaning
- Condition：New
- Dust Bin Capacity：4cbm,4m3
- Water Tank：1m3,1cbm
- Material：Stainless Steel
- Auxiliary Engine：Japan Brand 175HP
- Monitor Inside Cabin：Yes
- Operation：Hydraulic Control Unit
- Vacuum Cleaner：1 Main, 2 by Side
- Water Pump：Vacuumn Pump
- Blower：1 Unit
- Operation Radio：Supply
- Garbage Discharging：Tipping System,Dumping System
- Operating Manual：Yes, English Version
- Logo&Painting：Customized
- Drive Type：LHD&Rhd
- Transport Package：Naked Packing
- Specification：7cbm
- Trademark：CLW
- Origin：Suizhou, China
- HS Code：87059099
- Production Capacity：300 Units Per Month
Description
ChassisDrive Model 4X2, Left hand drive Vehicle Main Dimensions Dimensions(L x W x H)(mm) 6980*2170*2350 Wheel base (mm) 3815 Overhang (front/rear) (mm) 1110/2055 Wheel track (front/rear) (mm) 1680/1650 Approach/Departure angle(°) 21/13 Weight in KGS Curb Weight (kg) 3070 Front/Rear axle loading(kg) 3360/6695 Max. driving speed(km/h) 110 Engine Model China famous brand Type 4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling Horse Power(HP) 175 Displacement (ml) 5193 Emission standard Euro 3 Gearbox 5 forwards & 1 reverse Steering Gear Power steering, hydraulic steering with power assistance Brakes Hydraulic oil brake Tire Upper & Equipment Tank Garbage tank Tank material Stainless steel 304 Tank volume(cbm) 4 cbm Water tank Tank material Stainless steel 304 Tank volume(cbm) 1 cbm Auxiliary engine Model Japan Brand Quantity(No.) 1 Power(kw/HP) 129/175 Blower Quantity(No.) 1 Brand China famous brand Power(kw) 18 Speed(r/min) 2900 Filter barrel Quantity(No.) 8 Size(mm) 350*240*900 Vacuum cleaner Main Vacuum cleaner Quantity(No.) 1 Width(mm) 1800 Side Vacuum cleaner Quantity(No.) 2 Width(mm) 600 Max. Working width(mm) 2400 Sucking Nozzle wheel Quantity(No.) 4 Height Adjustable Remarks

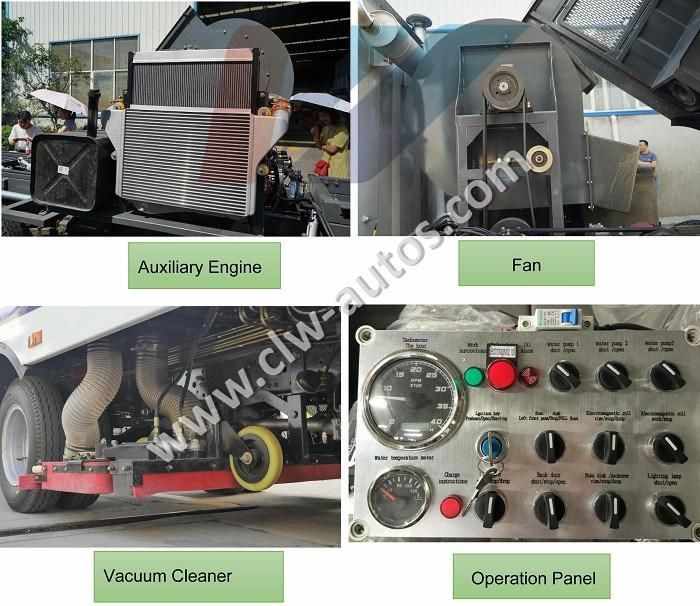

Truck details

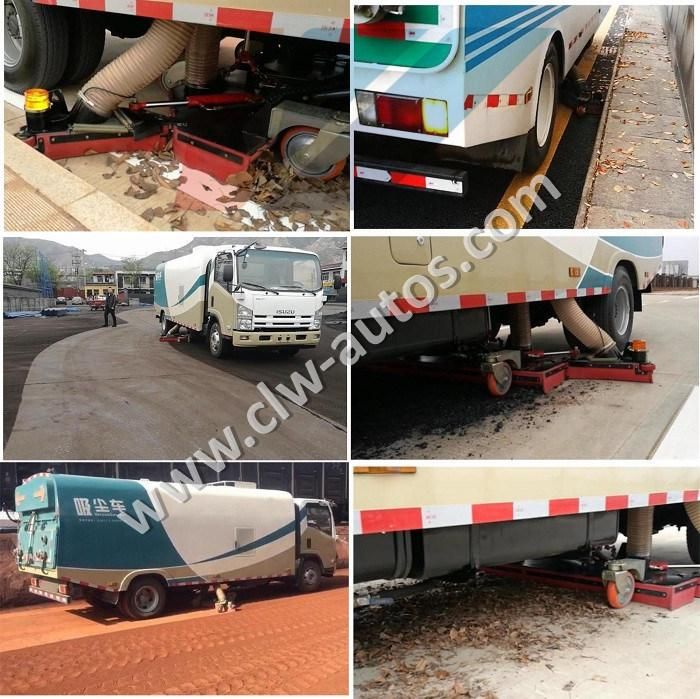

Working Show

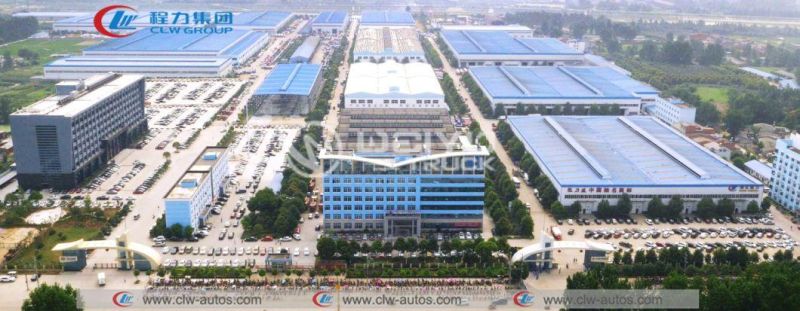

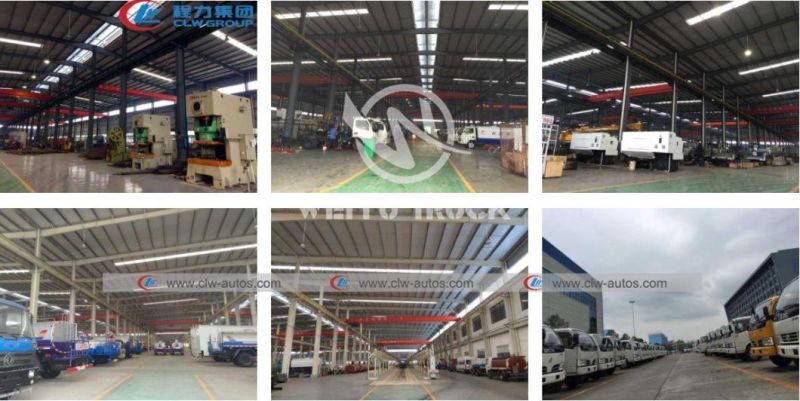

Company View
Overseas Exhibition and Local Support
Customer Visiting and Inspection
- Rear LED pilot lamp
- Self unloading box body
- The color will be designed on basis of your requirements.
