• Model NO.：ZZ1167
• Fuel：Diesel
• Drive Wheel：6×4
• Brand：Sinotruk
• Models：Medium
• Usage：Compression Type
• Condition：New
• Tank Capacity：16cbm
• Transport Package：Bulk and Wax Covered
• Trademark：Sinotruk
• Origin：China
• HS Code：8705909090
• Production Capacity：2000units Per Year

Main Technical ParametersTotal weight25000kgsWhole truck dimension9800x2496x3048mmRated capacity13870kgsGarbage box dimension 7100x2326x2050mmKerb weight11000kgsGarbage box volume 16 m3 (16000L)Passengers2 peopleFillter volume2m3Approach/departure angle16/15Front/rear overhang1500/2625mmAxle no.3Wheel base4325+1350mmPressure of
Hydraulic System20MpaFront / rear sewage
tank volume250+150LLifting Time of Filler8~10sTime of Discharging≤40sMax.Compression Force >25000kgsCycle Time of Filling≤25sChassis ParametersChassis brandSinotruckTyre nos.10Chassis dimension9800x2496x1050mmTyre model11.00-20 , bias tyresFront axleHF7 (7t)Rear axleHW1697 Steering ZF8098 hydraulic steering with power assistance (18MPa steering oil pump)TransmissionHW15710 , 10 forward and 2 reverse (manual)Fuel typeDieselFuel tank300LEngine modelEmission standardEngine powerMax. speedWD615.87WD615.87290hp90km/h
Others of engine1. Bore x stroke : 126x130mm
2. Displacement : 9.726L
3. Rated power & revolving speed : 266hp & 2200r/min.
4. Max. Torque & revolving speed : 1100N.m & 1100-1600r/min.







We provide different brand chassis to fabrica differet garbage truck, eg:
Dongfeng (DFAC / DFL),
SINOTRUK (HOWO / STEYR / GOLD PRINCE),
NORTH BENS (Beiben),
FOTON ( FORLAND / ROWOR / AUMAN),
HINO,
ISUZU,
Hyundai,
JAC,
JMC,
KAMA,
IVECO YUEJIN,
HINO (Japan),
IVECO Hongyan,
SHACMAN (Aolong / Delong),etc

Our garbage truck series:
-----container garbage truck
-----swing arm garbage truck
-----arm roll garbage truck
-----hook lift container garbage truck
-----sealed dump garbage truck
-----hanging dustbin garbage truck
-----compactor garbage truck
-----hanging dustbin with refuse compactor truck
-----movable garbage compactor with hook lift truck

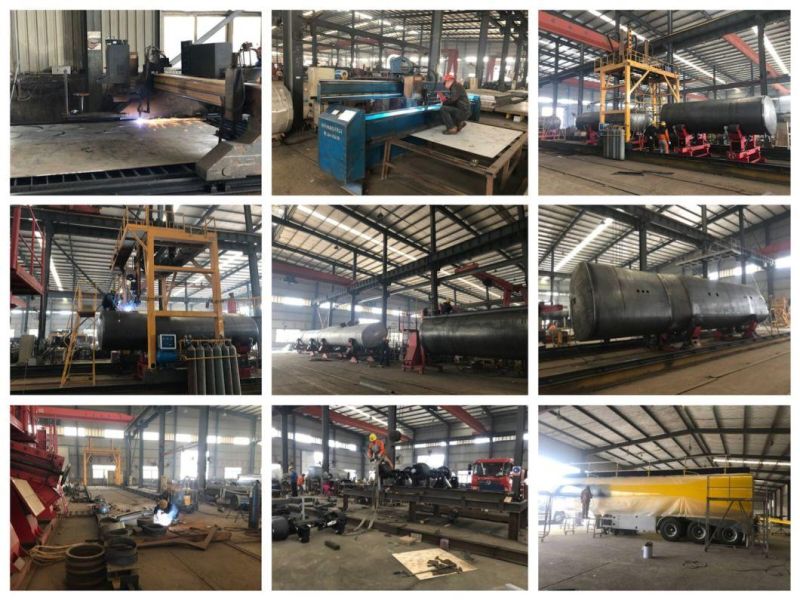

Our workshop


Hubei Suny Automobile and Machinery Co., Ltd is the professional company which is abide by the business integrity and quality win for the purpose of customers' intentions.

We aimed to be the access for you in getting the most suitable Chinese heavy-duty and special purposed trucks, which are widely used in environmental protection, city construction, transportation and many other fields.

Over the 10 years experience in manufacturing, we have established long-term and stable relationship with the customers all over the world and Chinese main manufactures.

With the years of experiences in exporting, we have got the trust from lots of clients who come from different districts, such as the whole Africa, South America, Southeast Asia, Mid-east, etc. We will keep striving to improving our profession and efficiency, meanwhile continuously promoting our service for all the customers all over the world!


FAQ

1. What is your terms of payment?
T/T with 30% deposit, and 70% balance will be paid before delivery.
We will show you photos of the products and packages before you paying the balance.

2. What's your minimum quantity?
1 set.

3. What is your packing?
 Naked packing, we transport our trailers by bulk cargo carrier, ro-ro or 40/45 HQ or land transportation.

4. How about delivery time?
Generally speaking, 25 workdays after we received 30% of contract value T/T down payment. The specific delivery time depends on the products and the quantity of your order.

5.How to judge the quality of products?
We will show you photos and videos, trading order. You are welcome to visit our factory at any time.

6.Why you trust and choose us?

--Complete production line, from trailer Design to Delivery.

-- ISO 9001: 2008 and CCC quality certificate.

--Use 100% famous brand spare parts you want.

-- Accept customization requirements.

--We are trusted by the clients from Africa, Australia, South America, Indonesia and so on.

--We accept flexible payment terms,T/T, L/C, or other .

7. Can I customize the painting and the logo?
Yes, we offer customized logo for any type.


Please contact us for more details
